C130

Engine Electrical Component Views

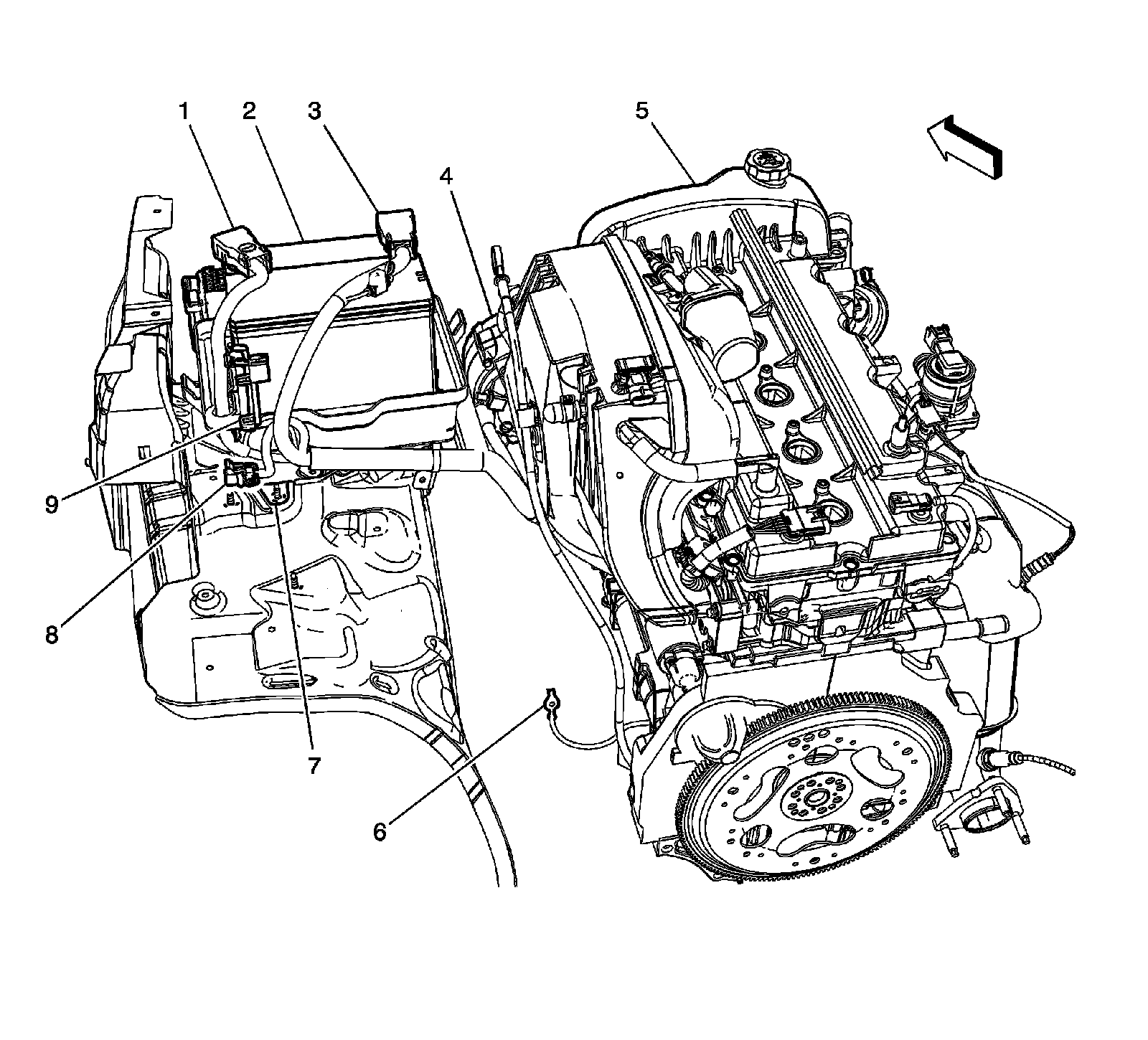

Engine Electrical Components




1 - Negative Battery Cable
2 - Battery
3 - Positive Battery Cable
4 - Generator
5 - Engine-LRR
6 - G120
7 - G100
8 - C130 (UE1)
9 - Generator Control Module
