Wheel Speed Sensor (WSS) - Right Rear
Wheel Speed Sensor (WSS) - Right Rear
Wheel Speed Sensor
(WSS) - Right Rear

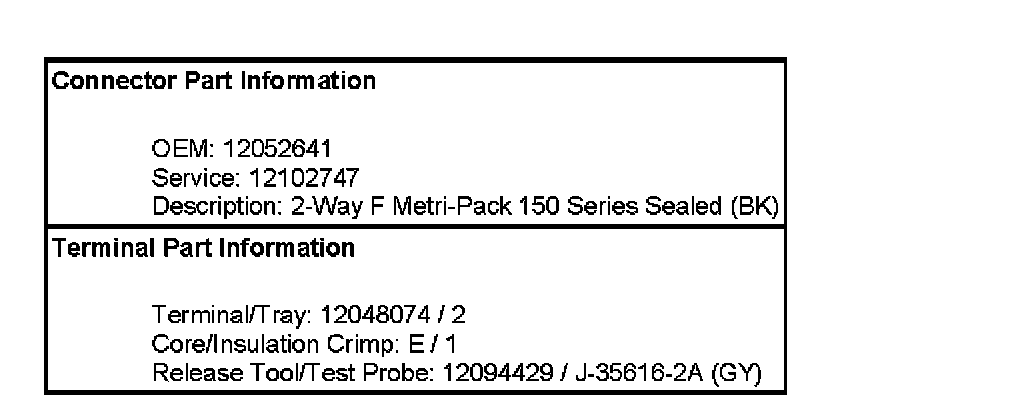

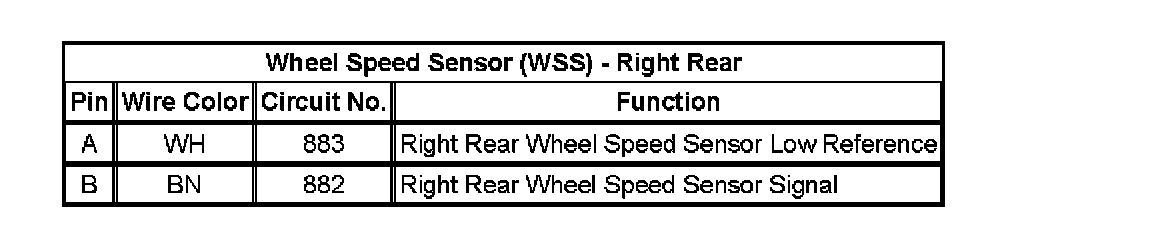

Wheel Speed Sensor (WSS) - Right Rear:
