Home >> Hummer >> 2007 >> H3 L5-3.7L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Wheel Speed Sensor >> Wheel Speed Sensor (WSS) - Left Front

Wheel Speed Sensor (WSS) - Left Front



Wheel Speed Sensor (WSS) - Left Front

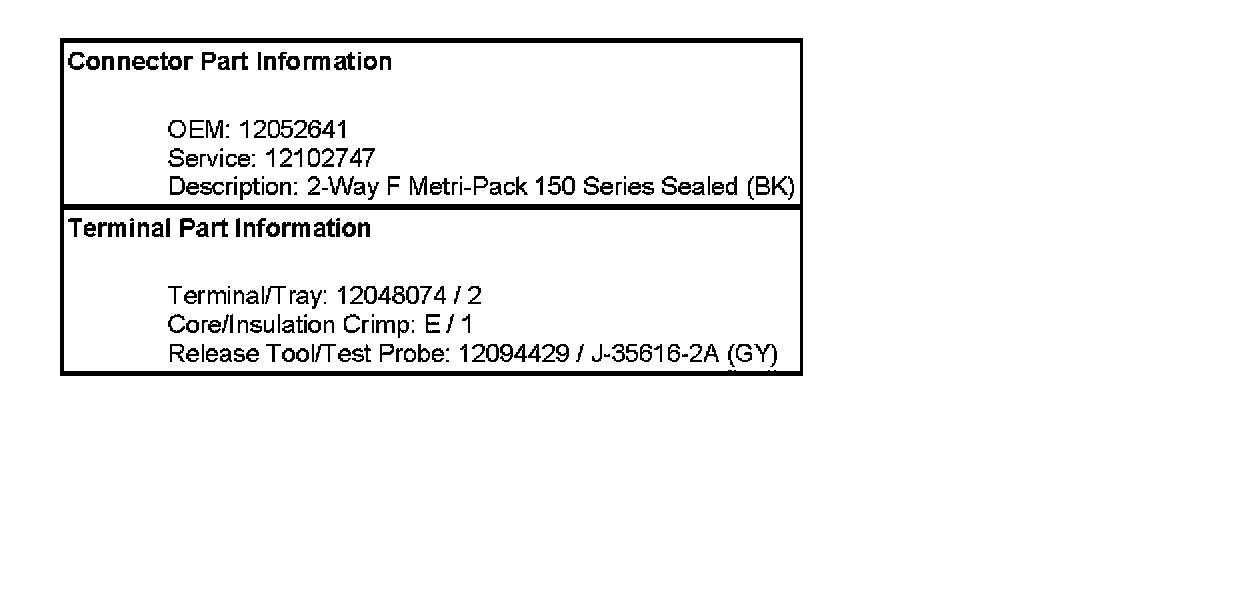

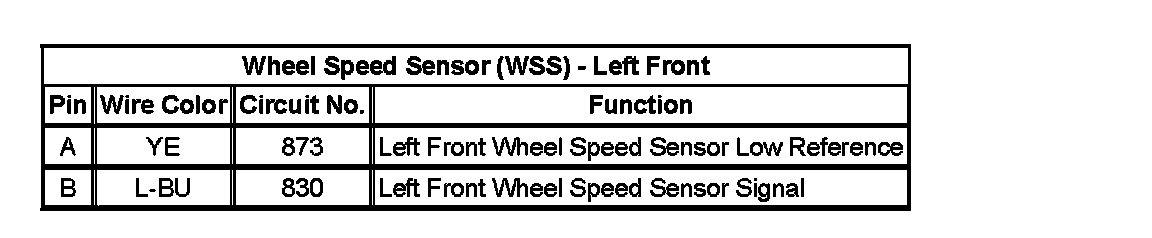

Wheel Speed Sensor (WSS) - Left Front:
