Variable Valve Timing Solenoid



Engine Controls Connector End Views

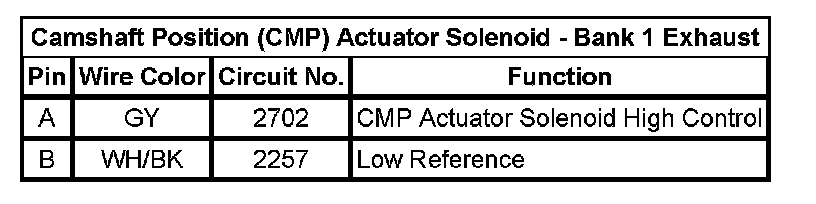

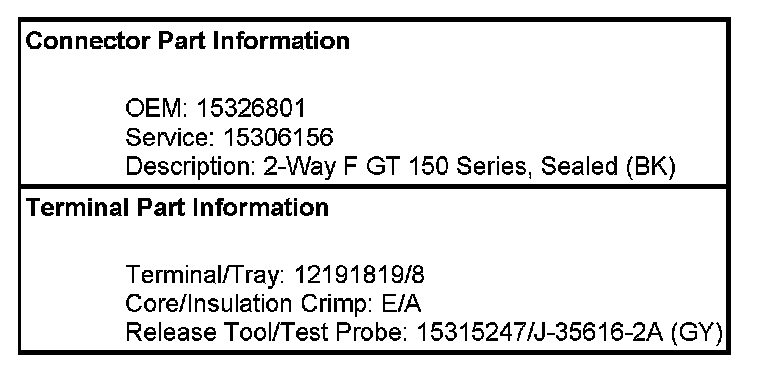

Camshaft Position (CMP) Actuator Solenoid - Bank 1 Exhaust
