System Diagram

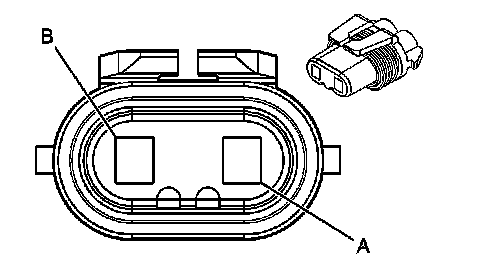

Lighting Systems Connector End Views

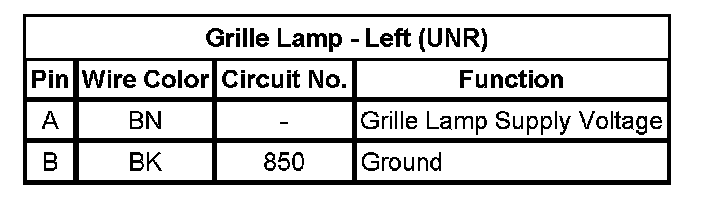

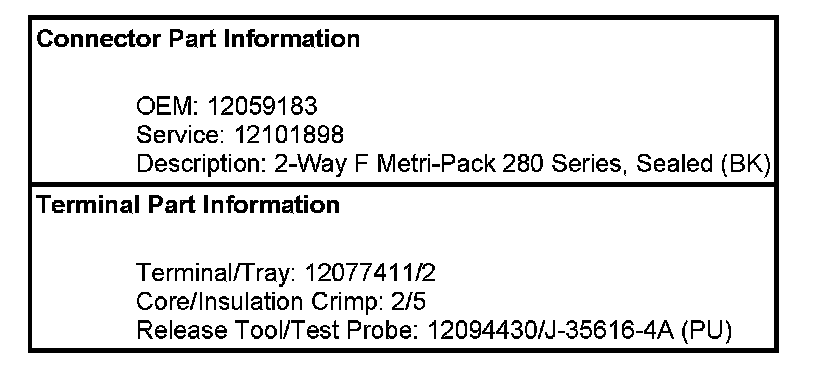

Grille Lamp - Left (UNR)

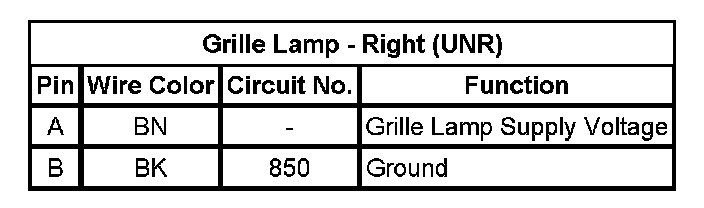

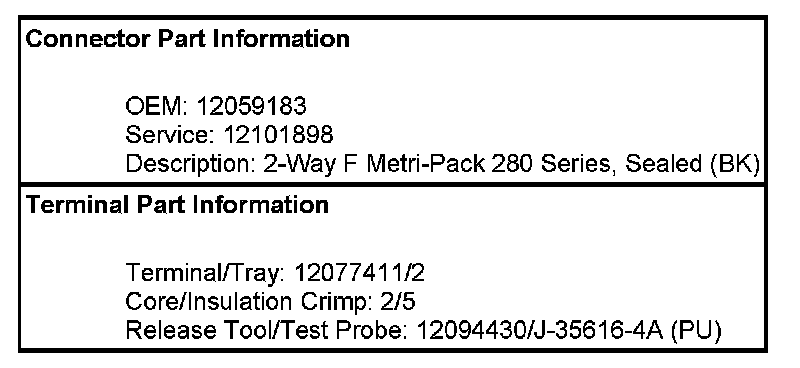

Grille Lamp - Right (UNR)

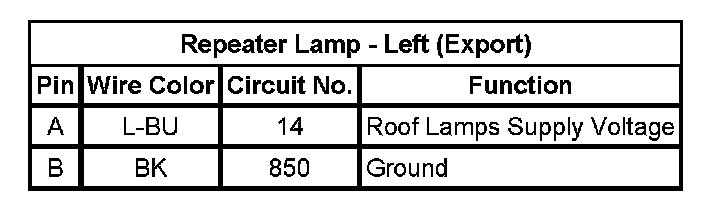

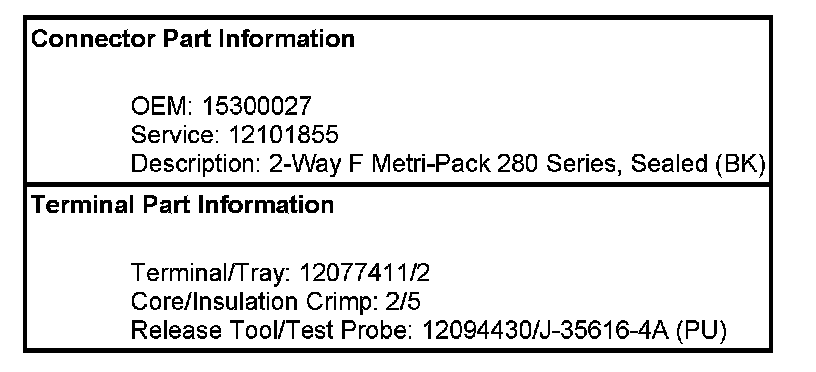

Repeater Lamp - Left (Export)

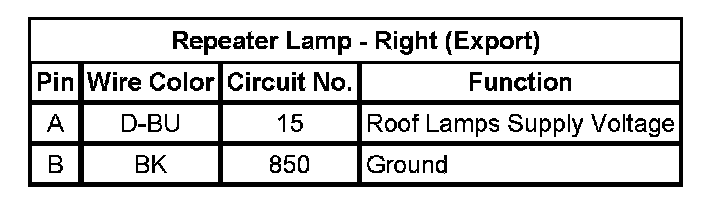

Repeater Lamp - Right (Export)
