Steering Angle Sensor, Traction Control
Steering Angle Sensor, Traction Control
Steering Wheel Position Sensor (JL4)
Steering Wheel Speed/Position Sensor:

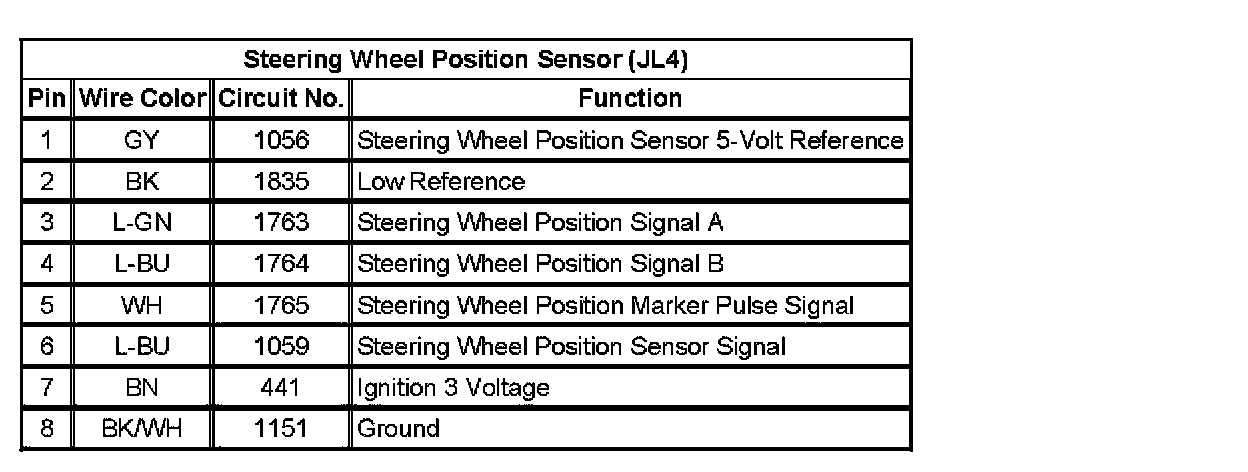

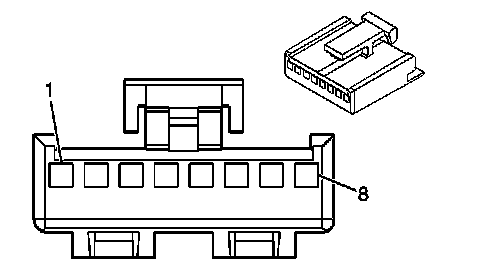

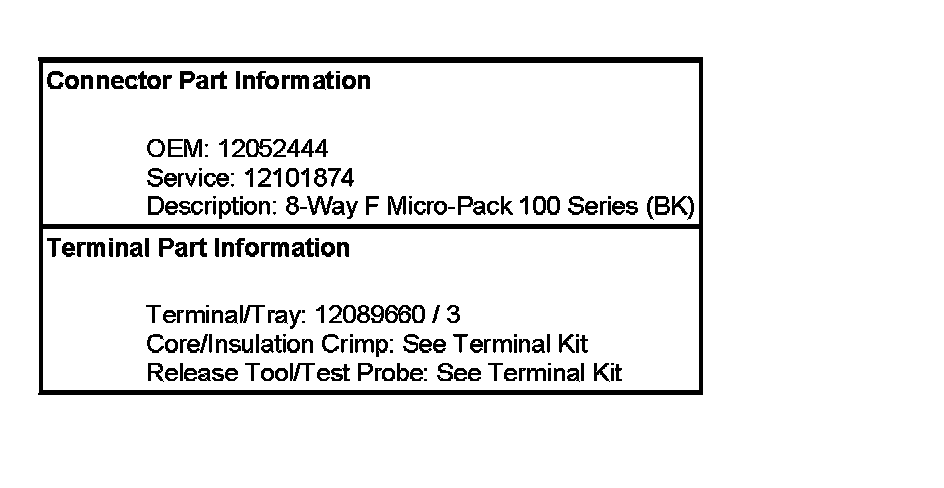

Steering Wheel Position Sensor (JL4):
