Home >> Hummer >> 2007 >> H3 L5-3.7L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Starting and Charging >> Multiple Junction Connector >> C600 - C699

C600 - C699



Inline Harness Connector End Views

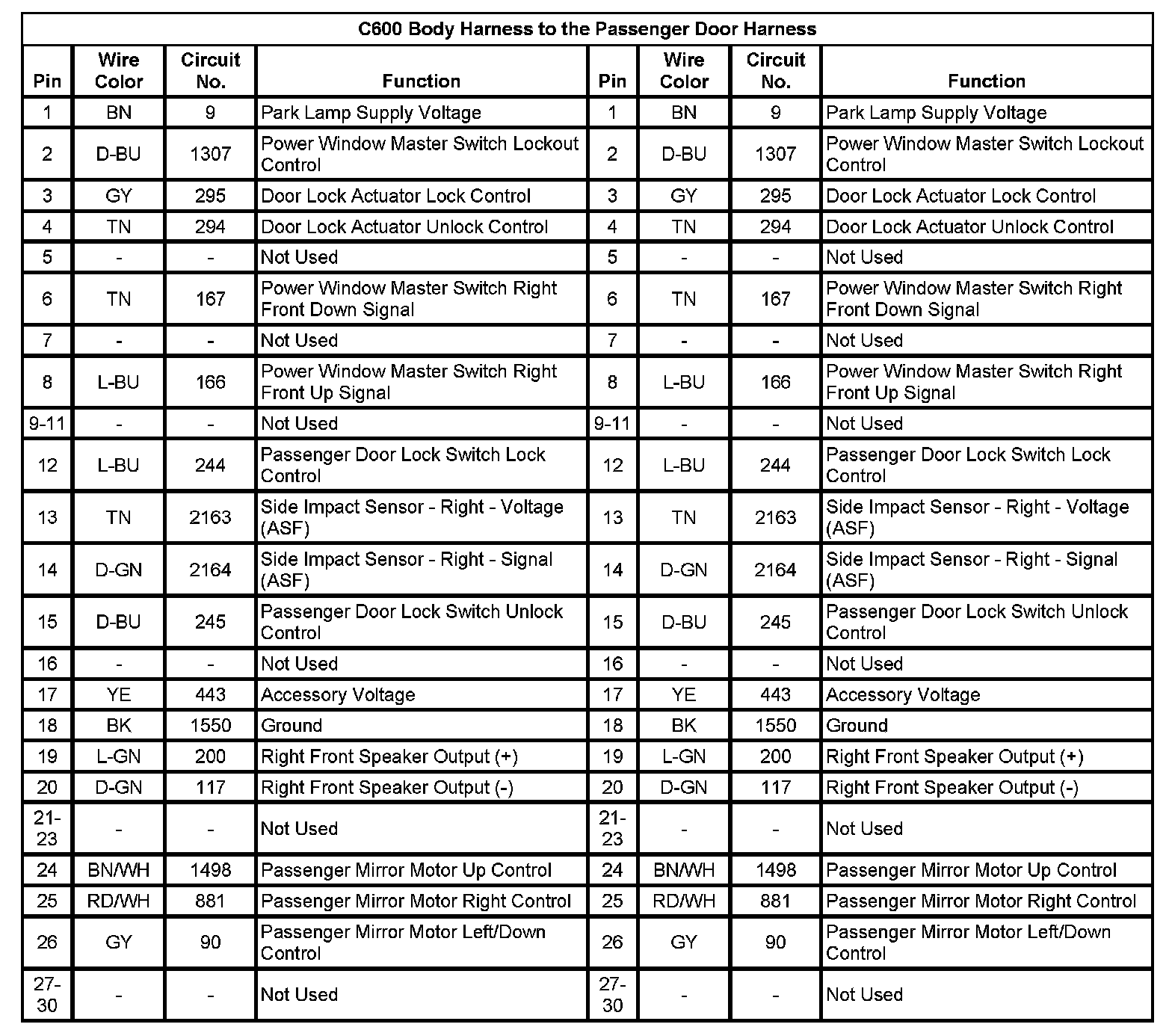

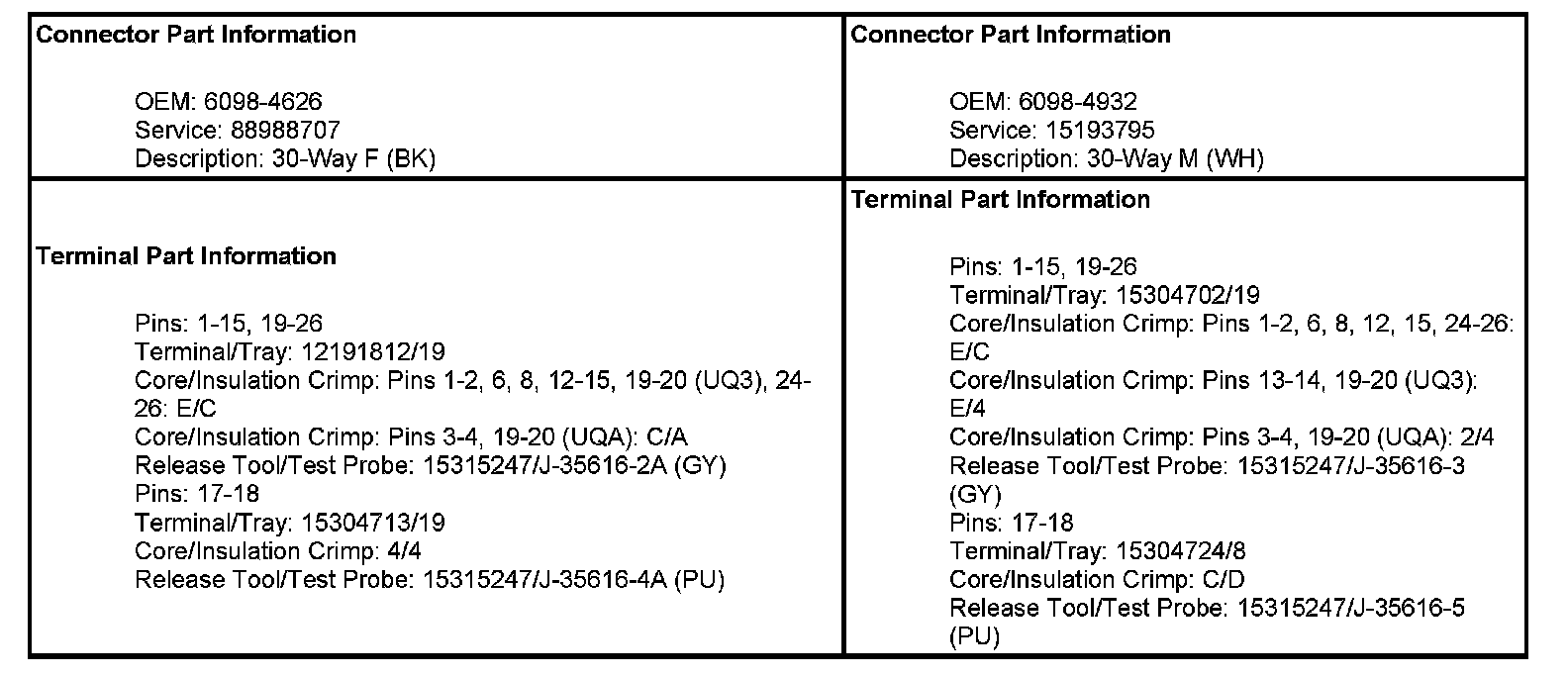

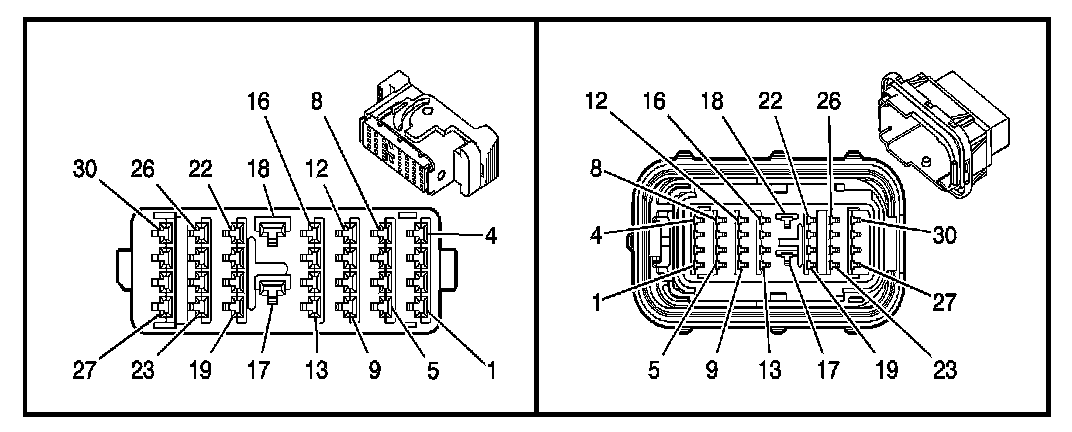

C600 Body Harness to the Passenger Door Harness
