C420

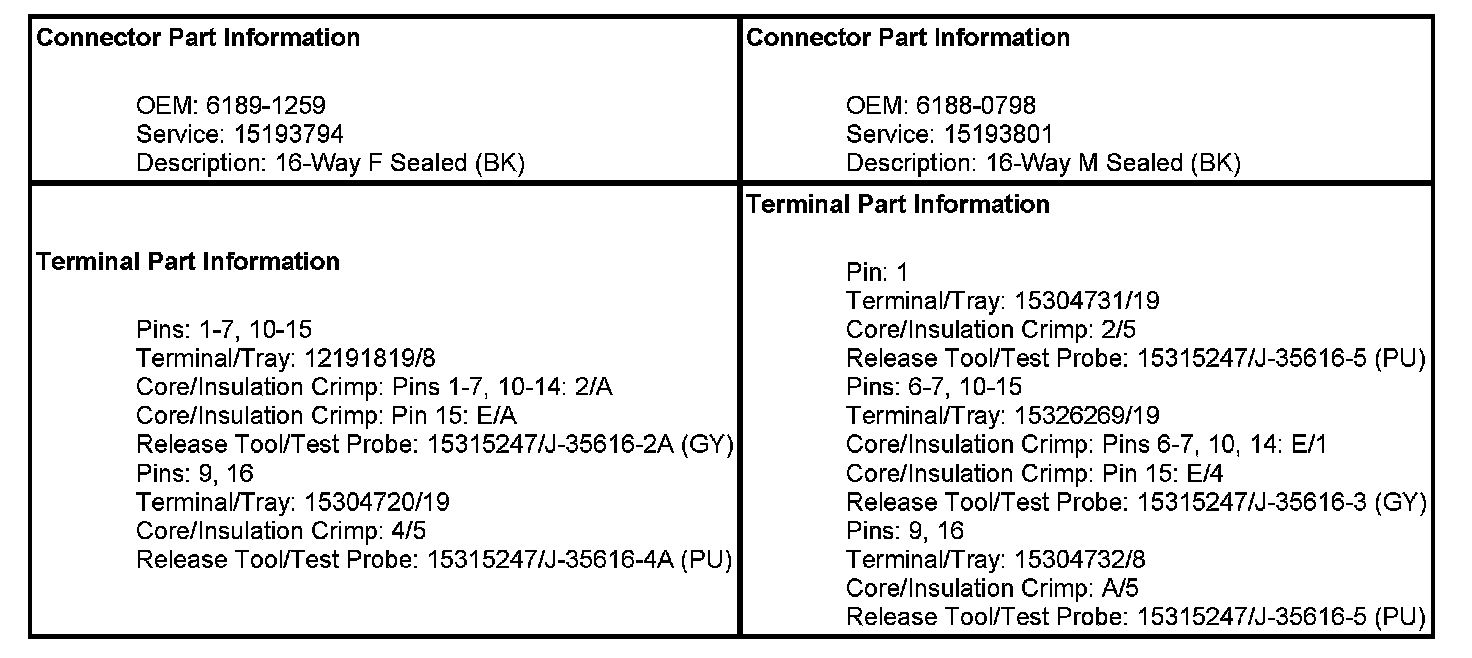

Inline Harness Connector End Views

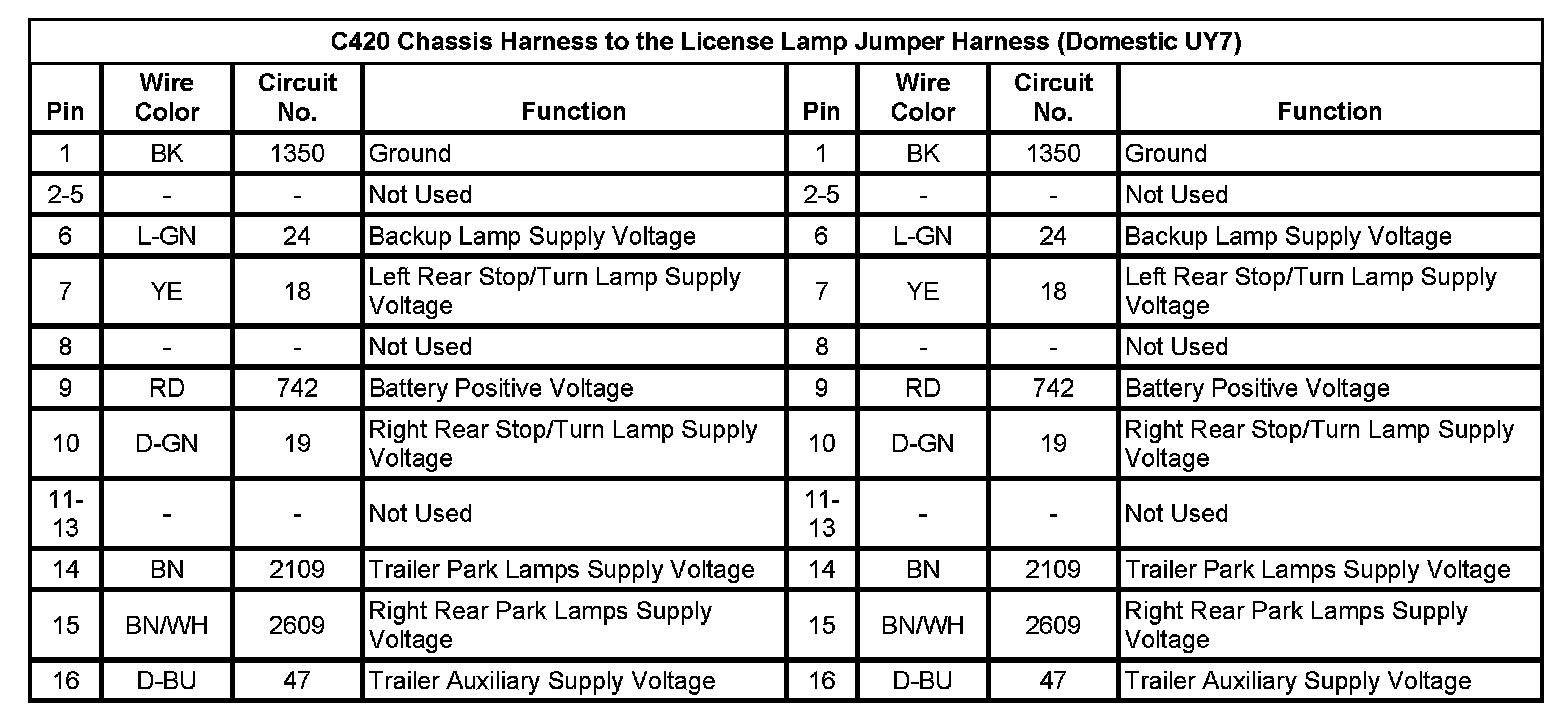

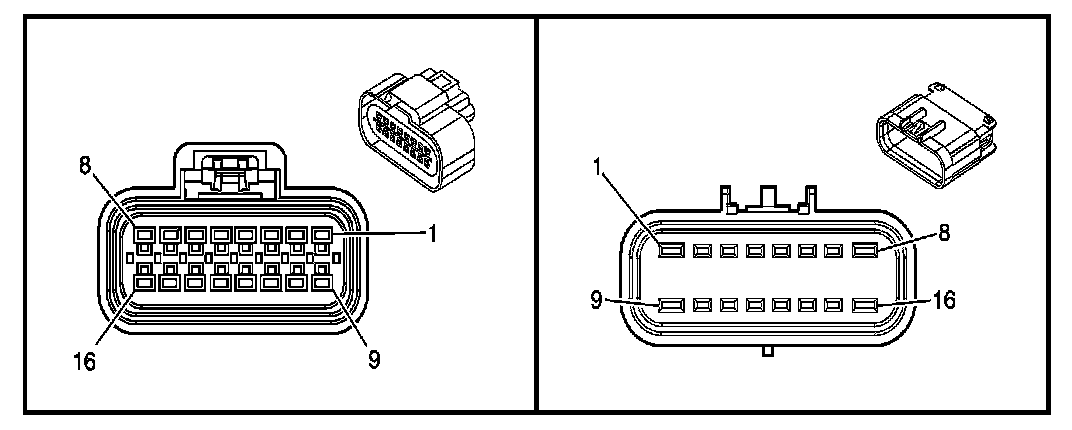

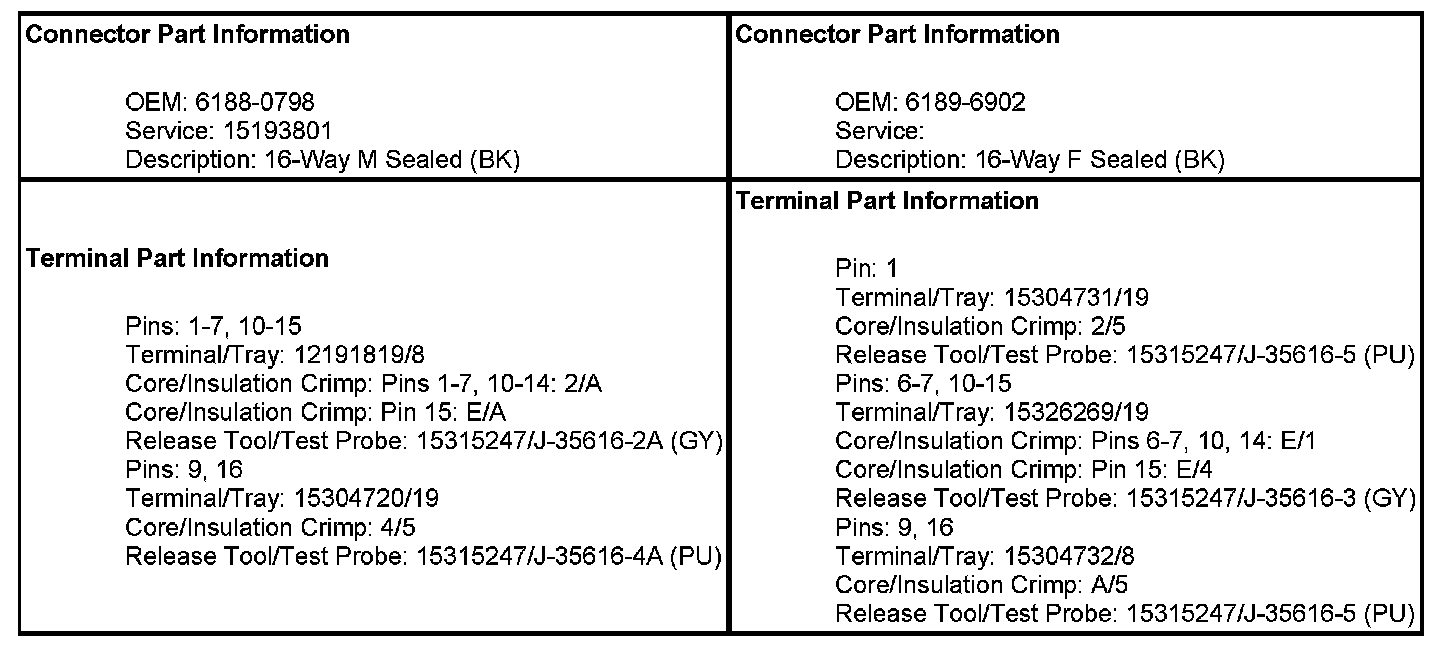

C420 Chassis Harness to the License Lamp Jumper Harness (Domestic UY7)

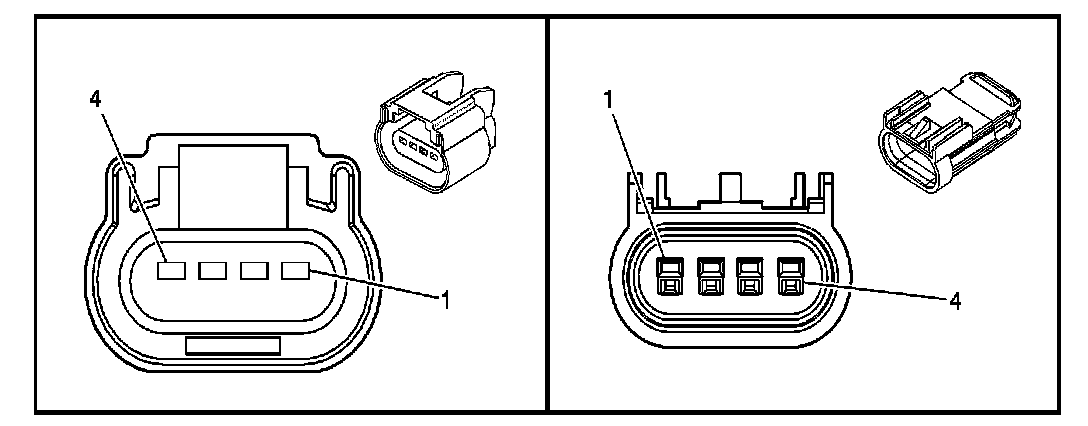

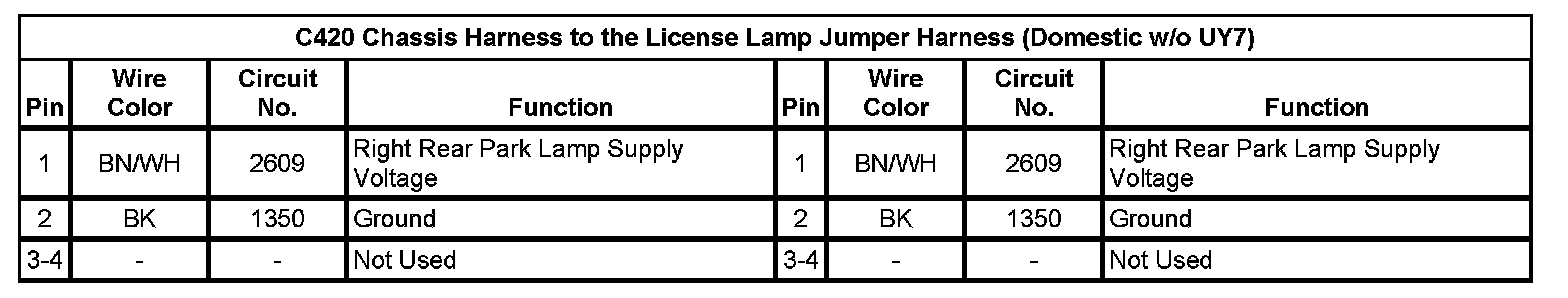

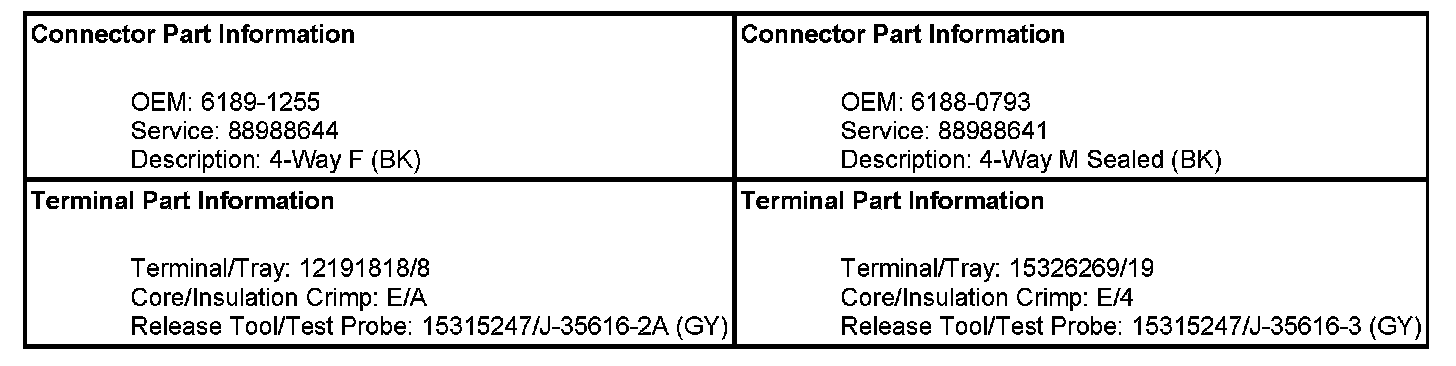

C420 Chassis Harness to the License Lamp Jumper Harness (Domestic w/o UY7)

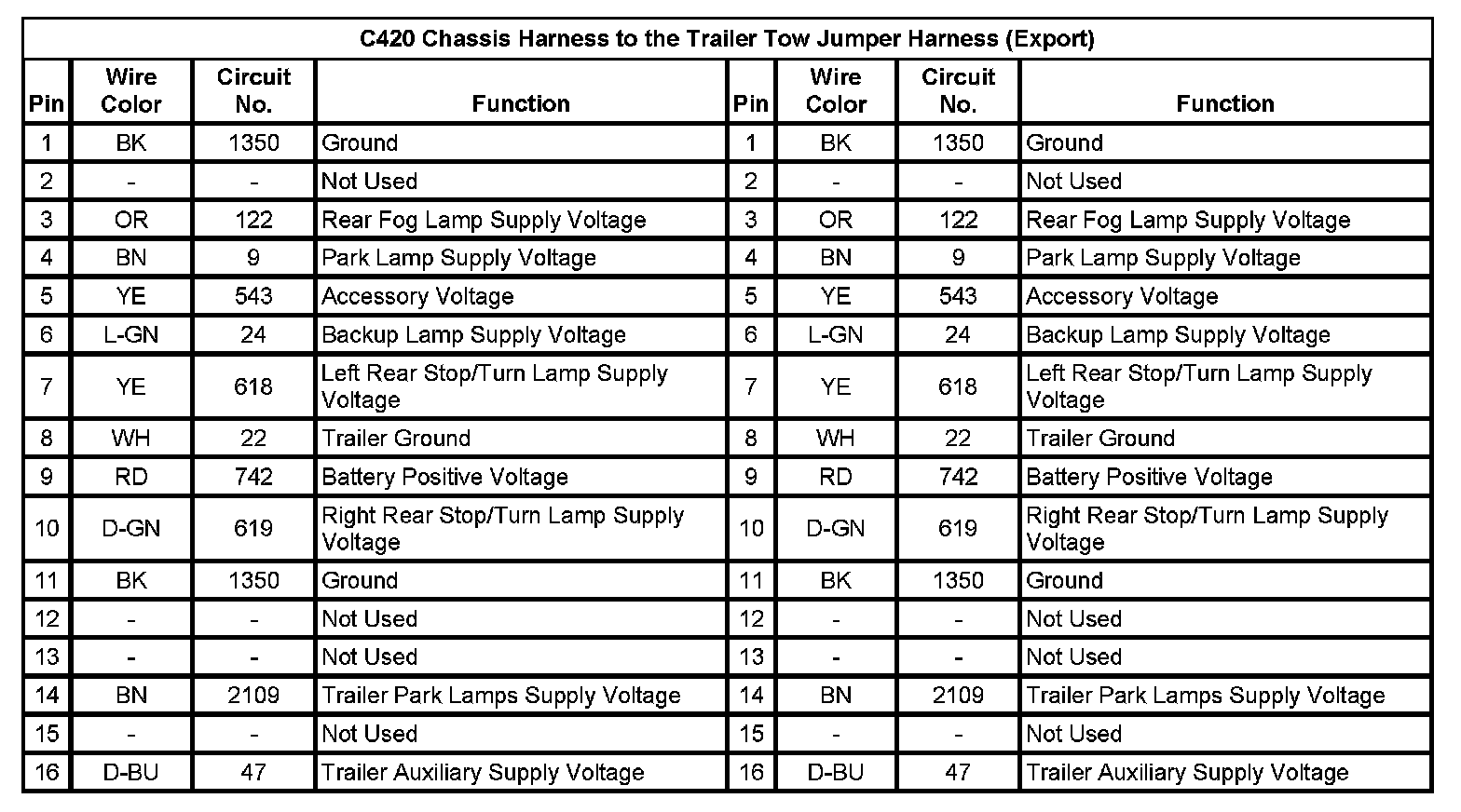

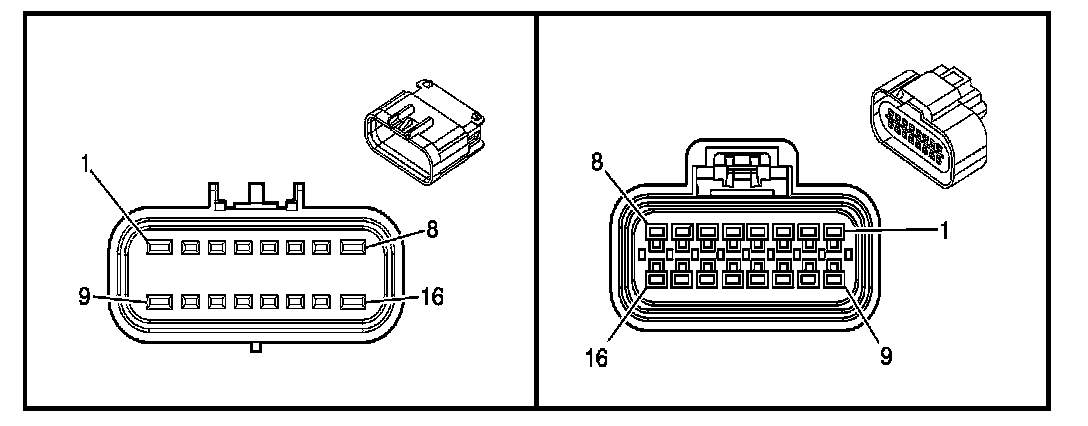

C420 Chassis Harness to the Trailer Tow Jumper Harness (Export UY7)
