C203

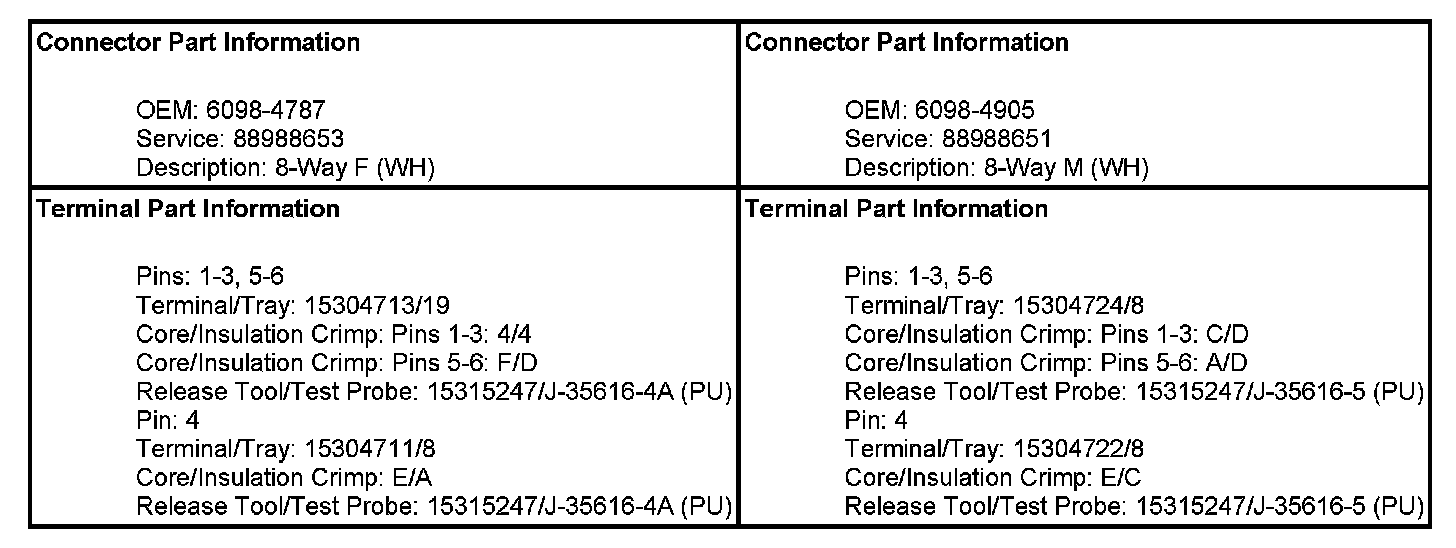

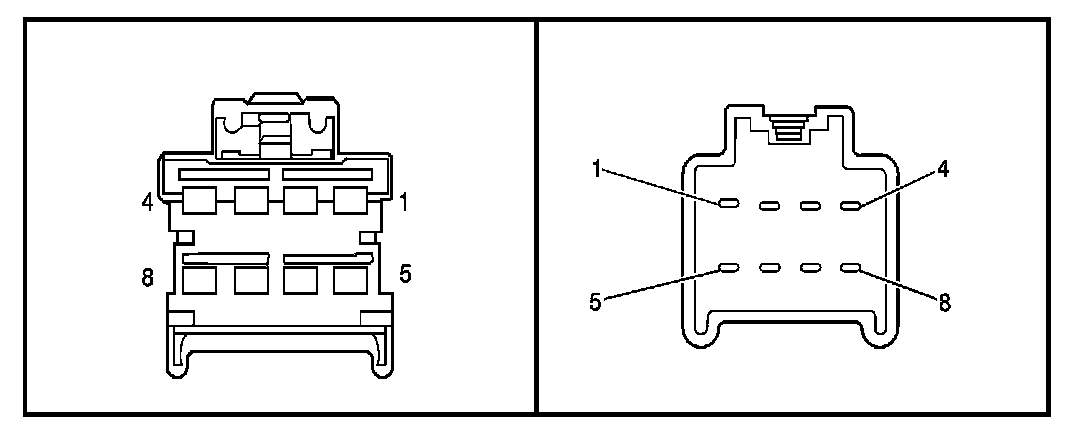

Inline Harness Connector End Views

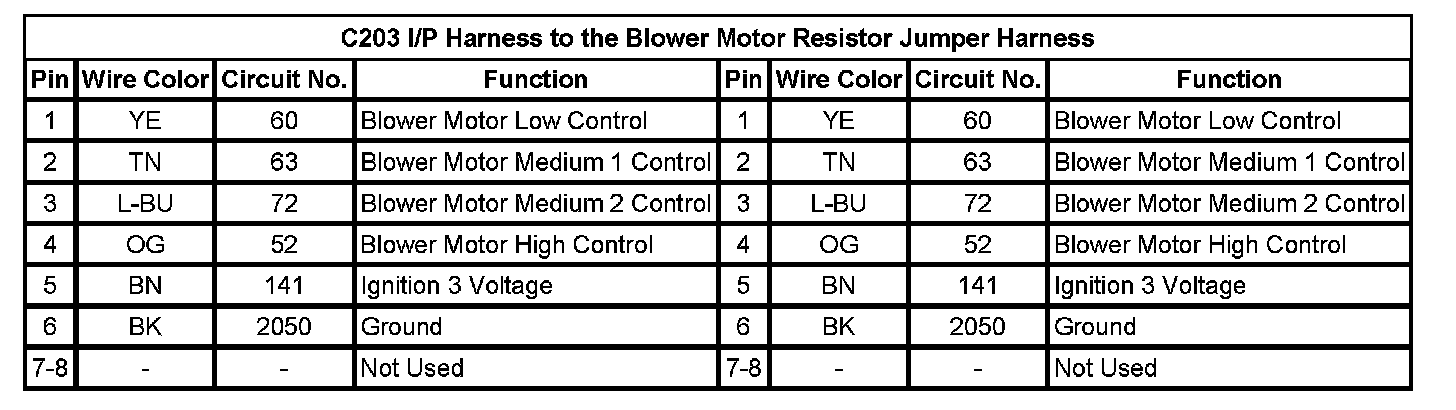

C203 I/P Harness to the Blower Motor Resistor Jumper Harness
