Auxiliary Power Outlet

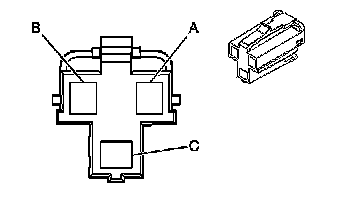

Power Outlet Connector End Views

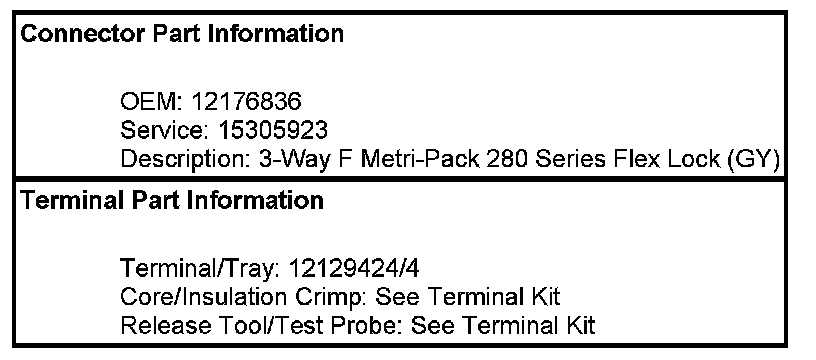

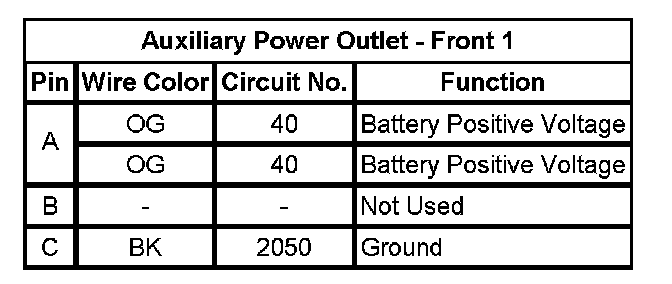

Auxiliary Power Outlet - Front 1

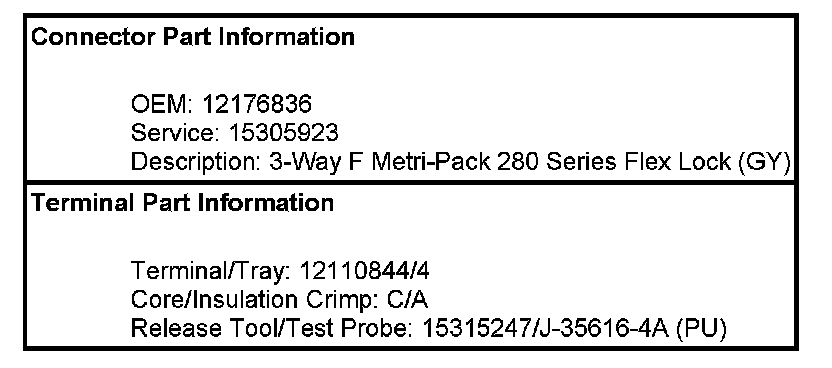

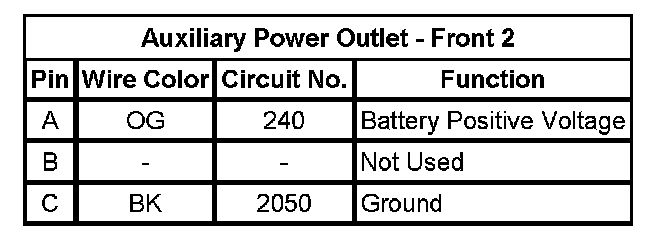

Auxiliary Power Outlet - Front 2

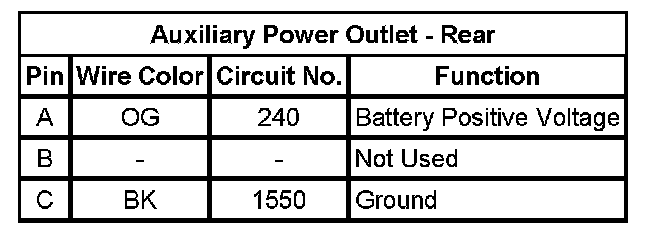

Auxiliary Power Outlet - Rear
