Seat Temperature Switch

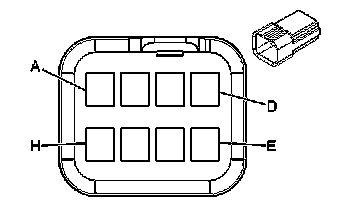

Power Seat Connector End Views

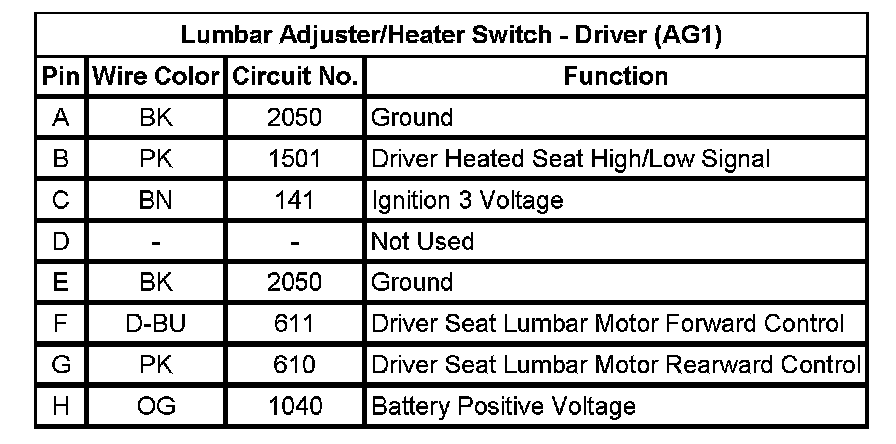

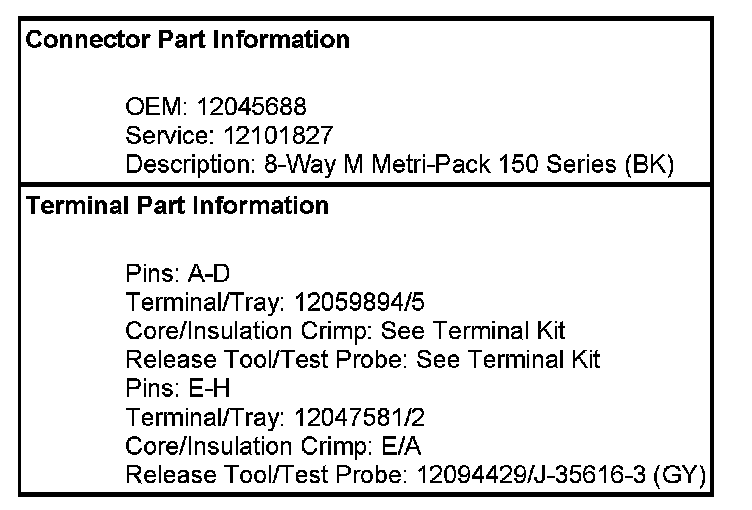

Lumbar Adjuster/Heater Switch - Driver (AG1)

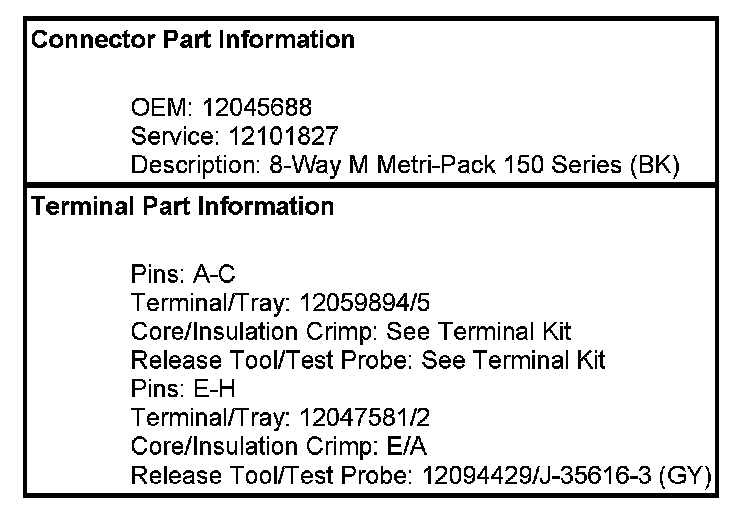

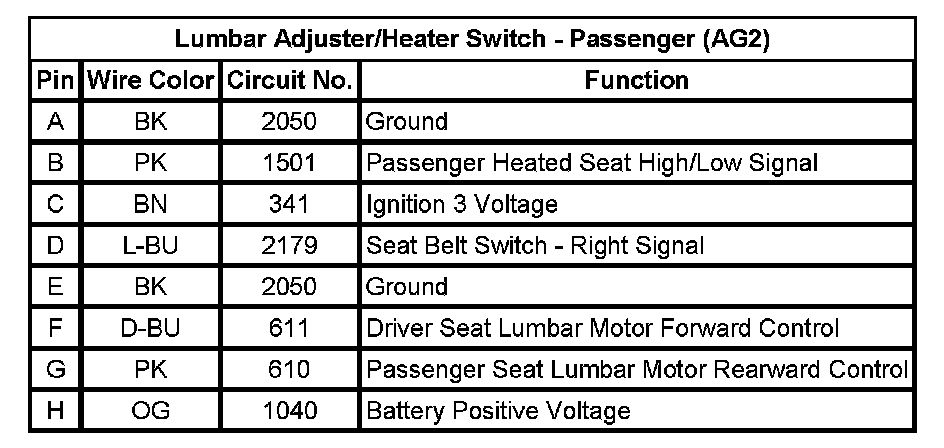

Lumbar Adjuster/Heater Switch - Passenger (AG2)
