System Diagram



Seat Belt Connector End Views

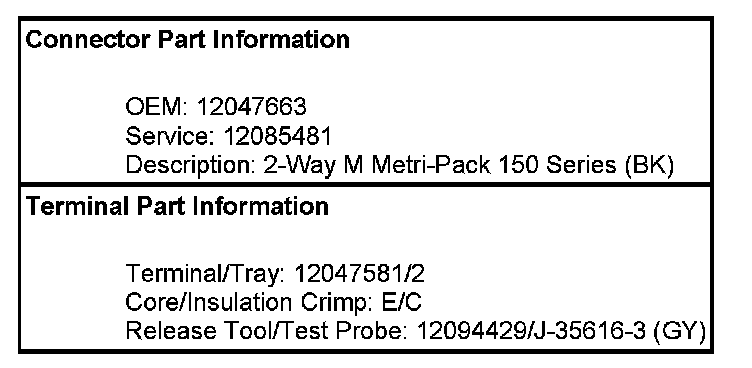

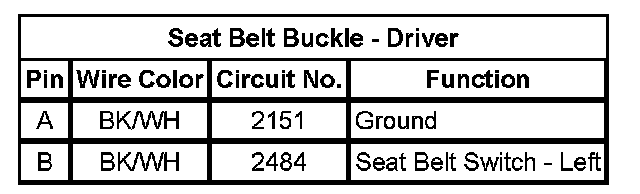

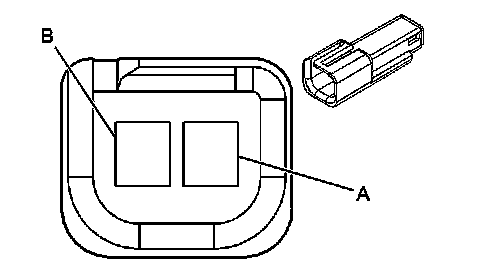

Seat Belt Buckle - Driver

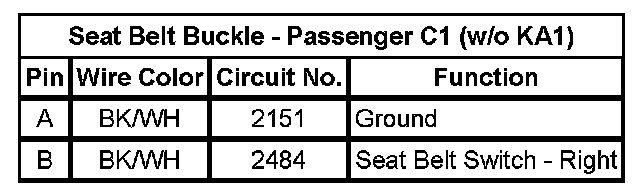

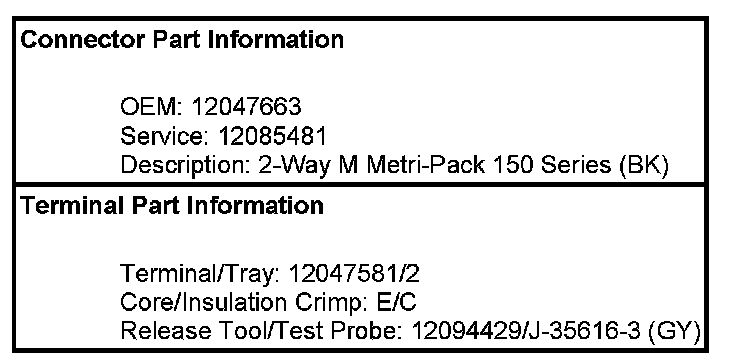

Seat Belt Buckle - Passenger C1 (w/o KA1)

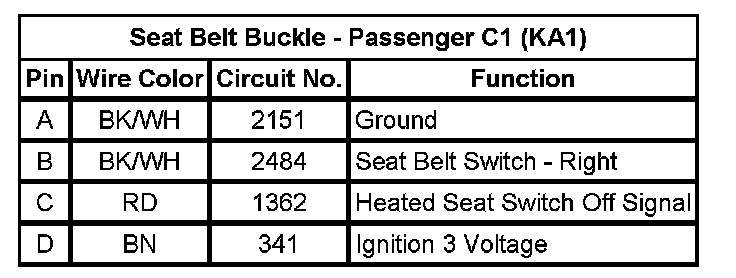

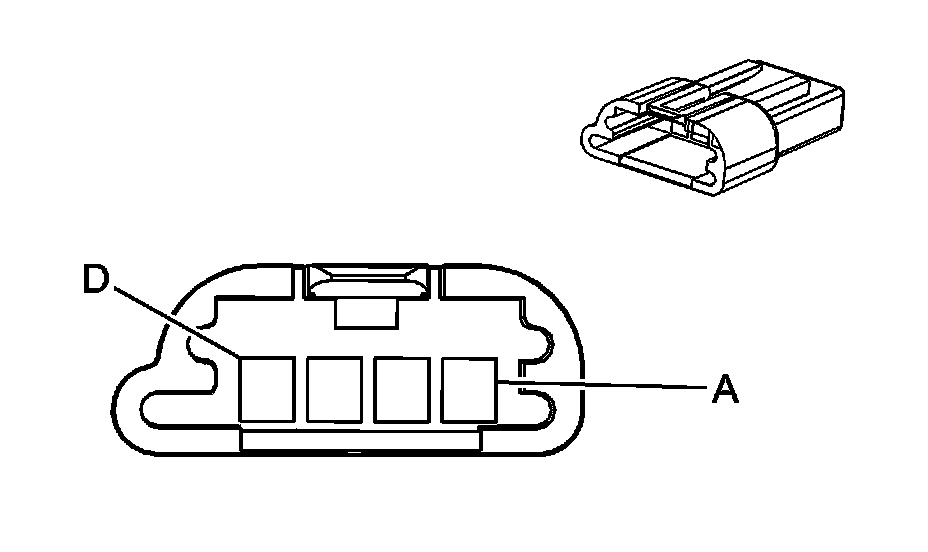

Seat Belt Buckle - Passenger C1 (KA1)

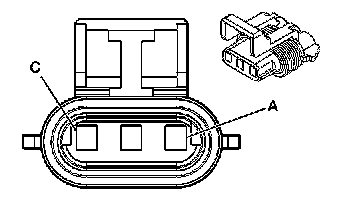

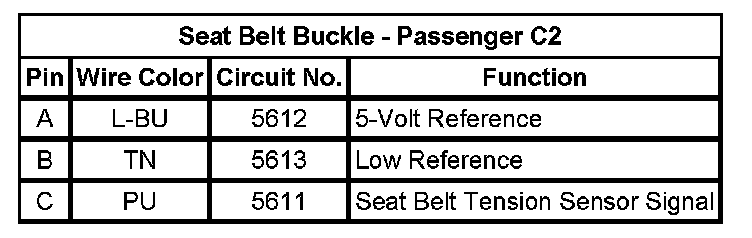

Seat Belt Buckle - Passenger C2
