Power Seat Motor



Power Seat Connector End Views

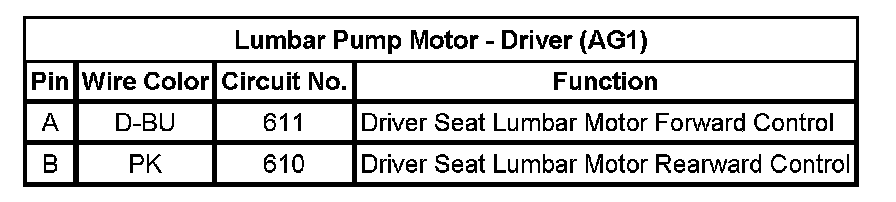

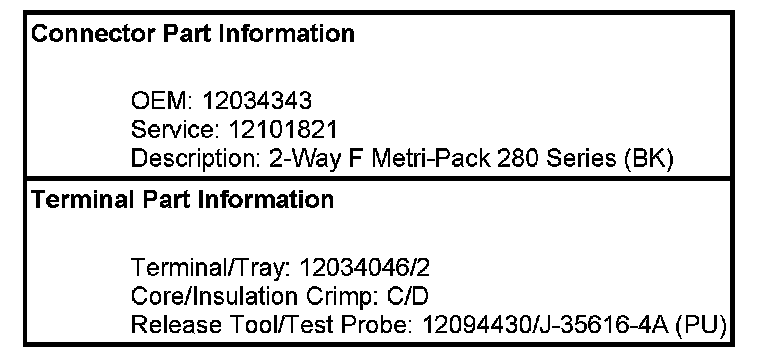

Lumbar Pump Motor - Driver (AG1)

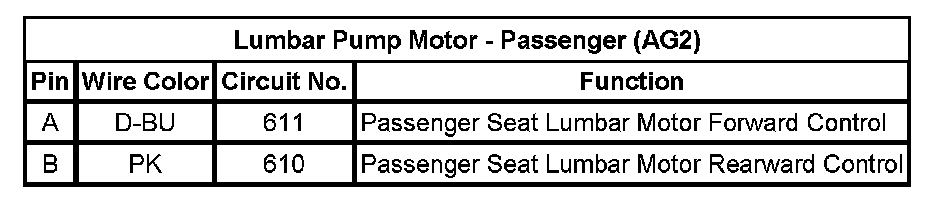

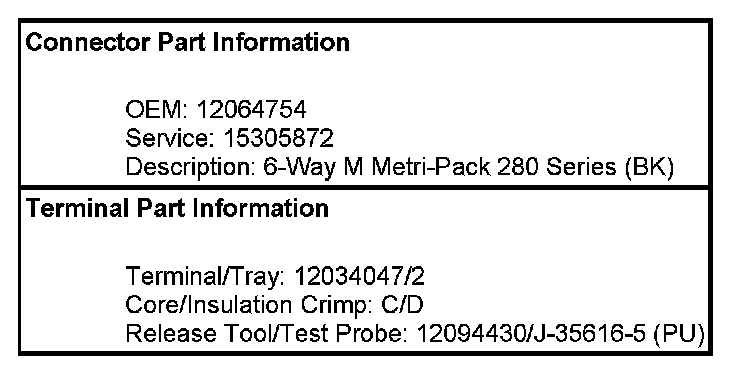

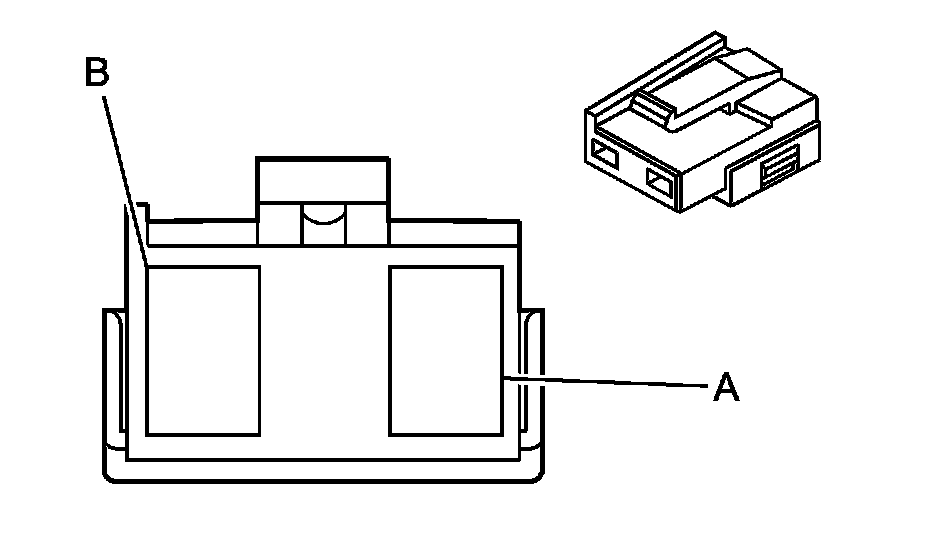

Lumbar Pump Motor - Passenger (AG2)

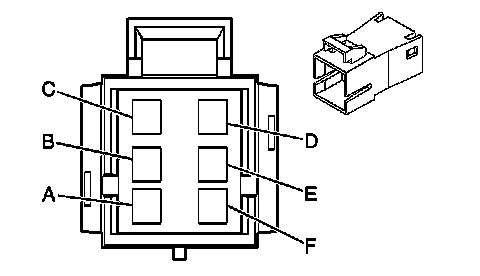

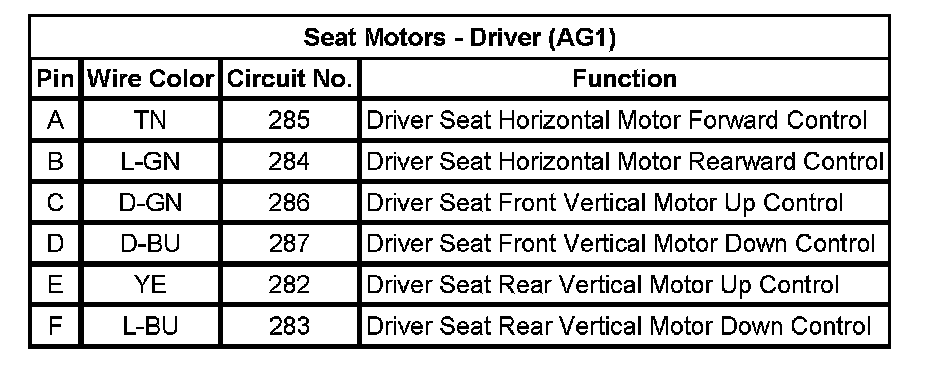

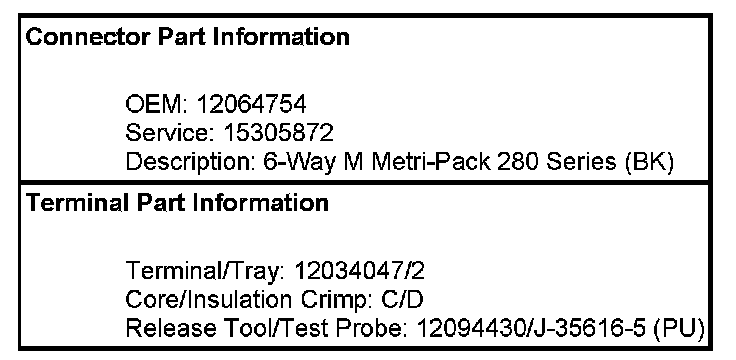

Seat Motors - Driver (AG1)

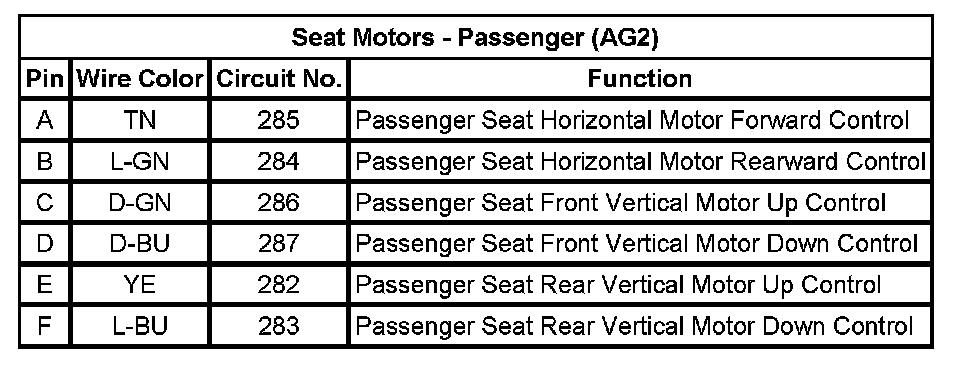

Seat Motors - Passenger (AG2)
