Home >> Hummer >> 2007 >> H3 L5-3.7L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Mirrors >> System Diagram

System Diagram

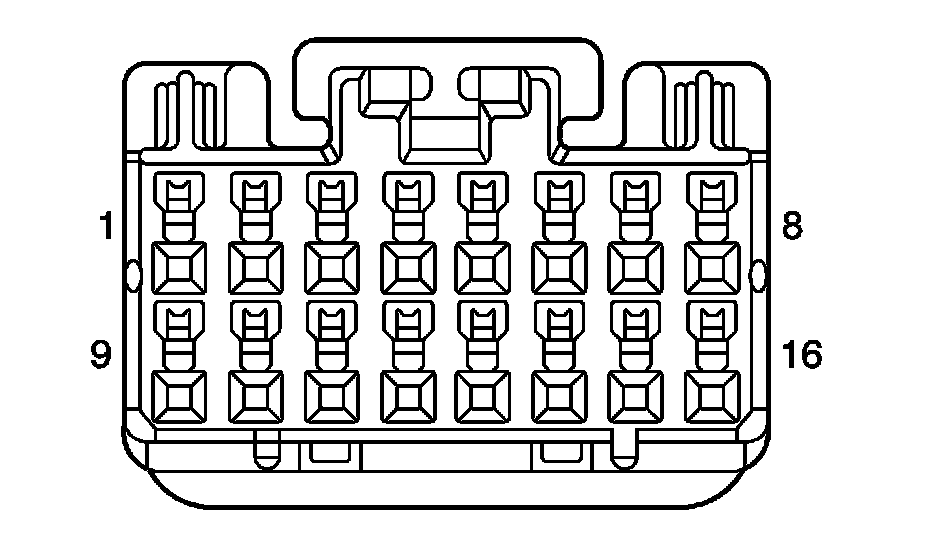

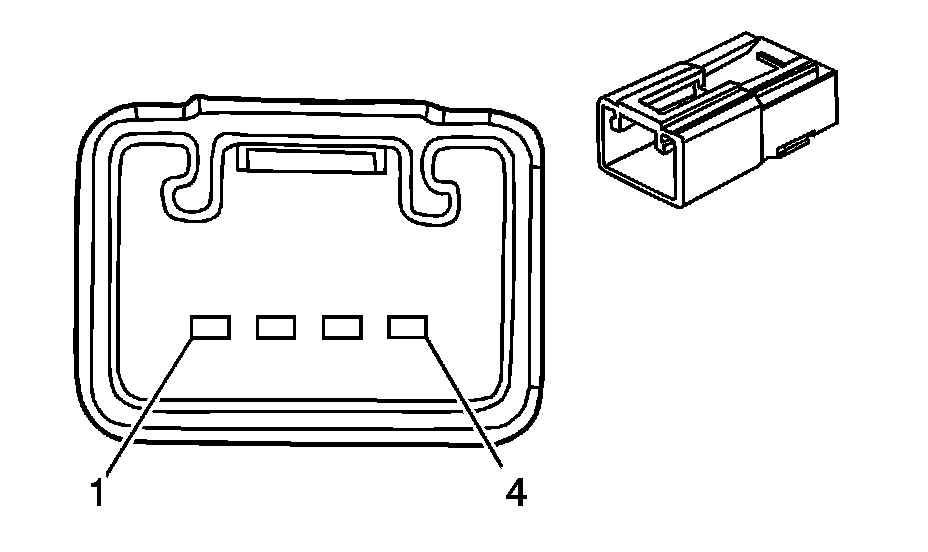

Mirror Connector End Views

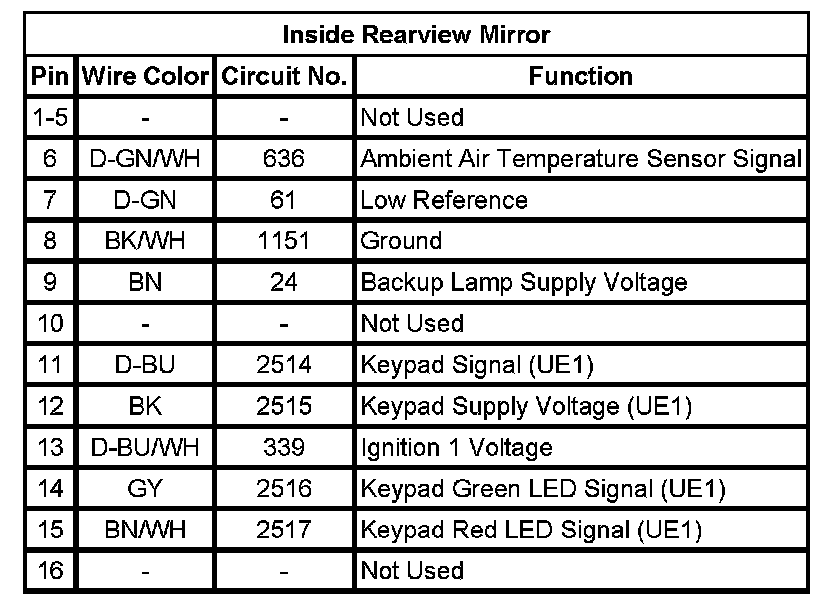

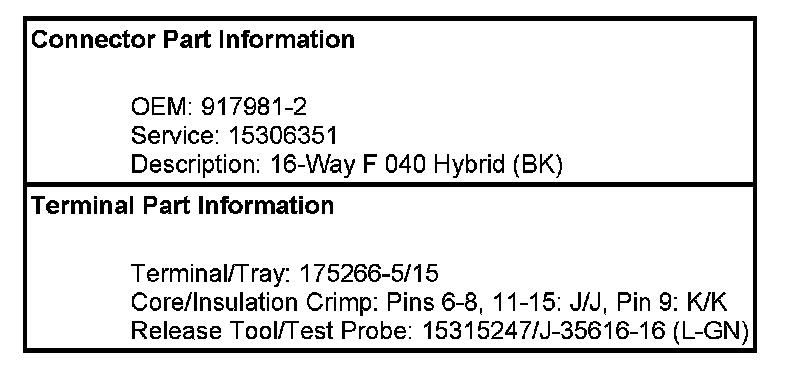

Inside Rearview Mirror

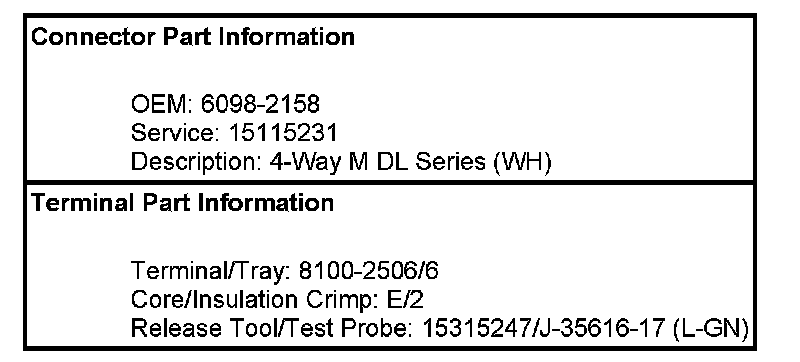

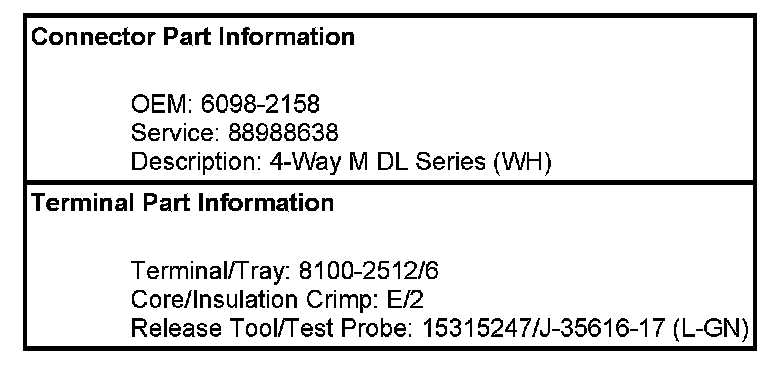

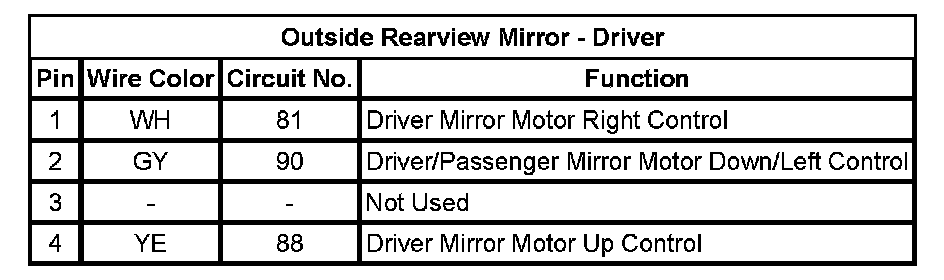

Outside Rearview Mirror - Driver

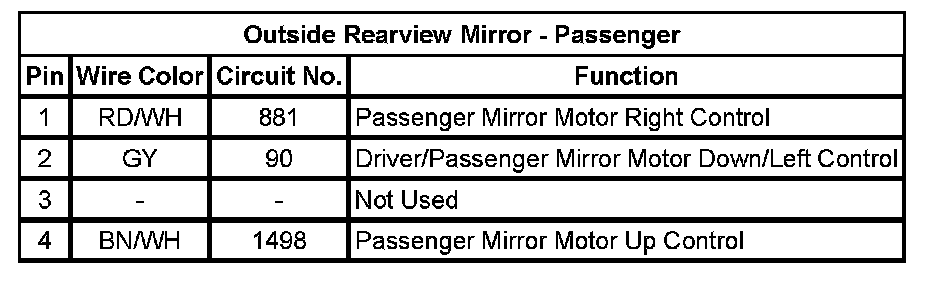

Outside Rearview Mirror - Passenger
