System Diagram



Vehicle Access Connector End Views

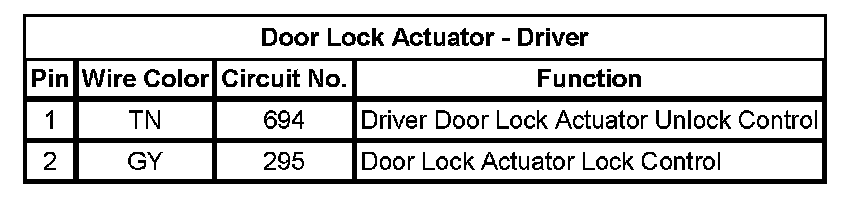

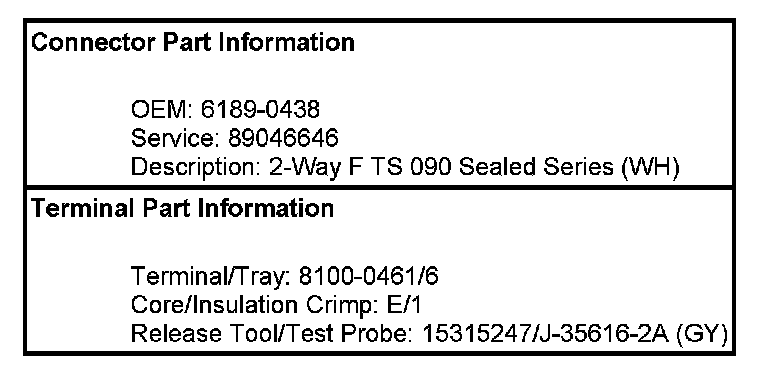

Door Lock Actuator - Driver

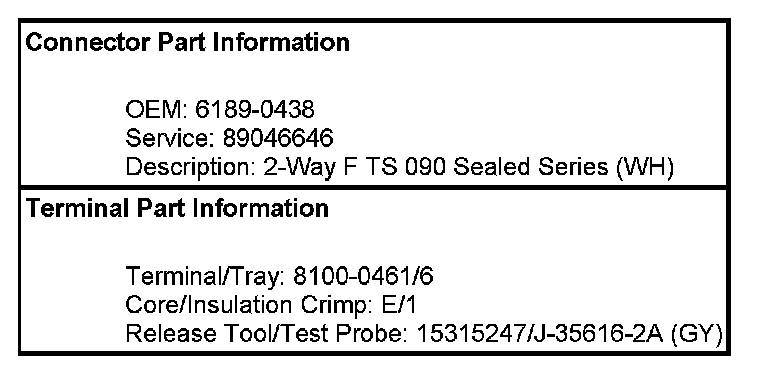

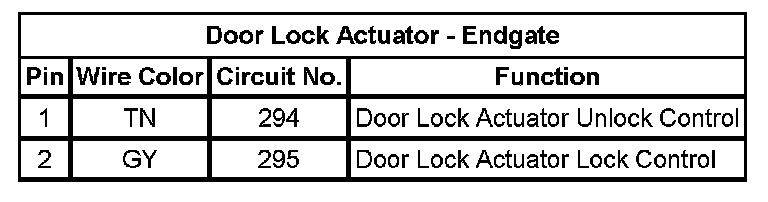

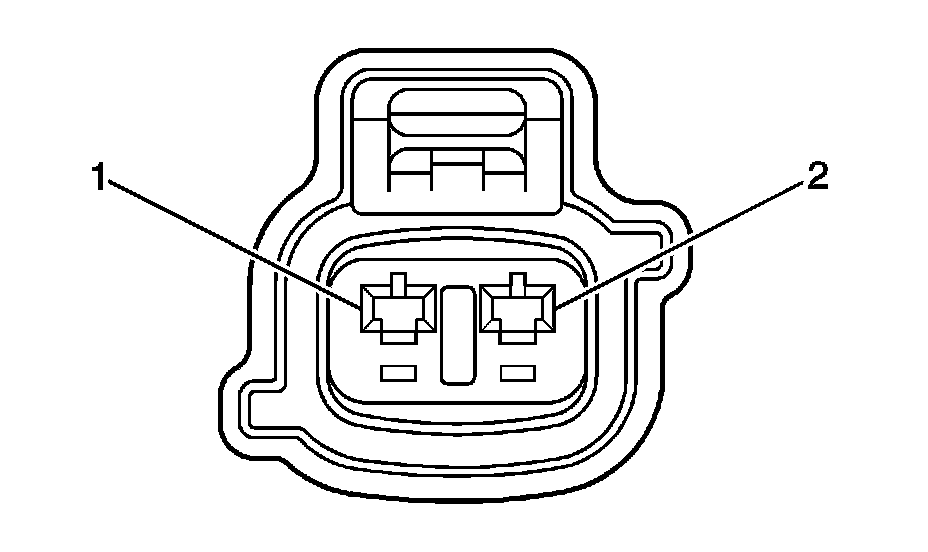

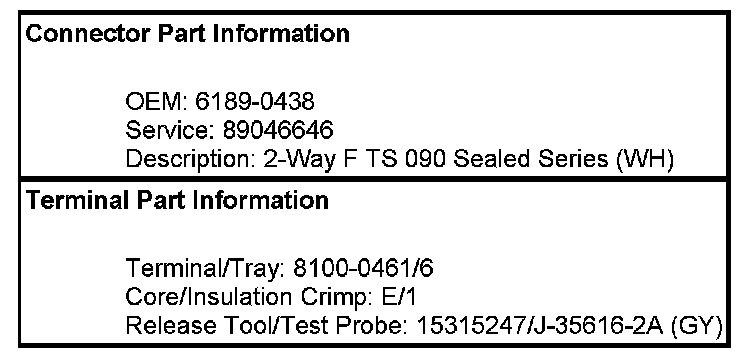

Door Lock Actuator - Endgate

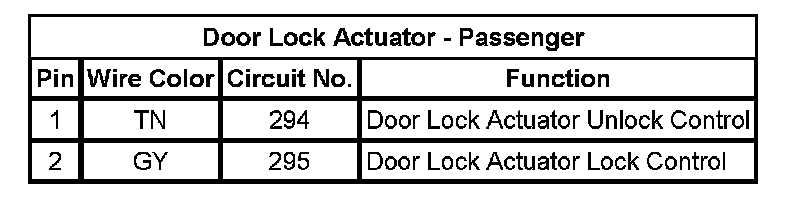

Door Lock Actuator - Passenger

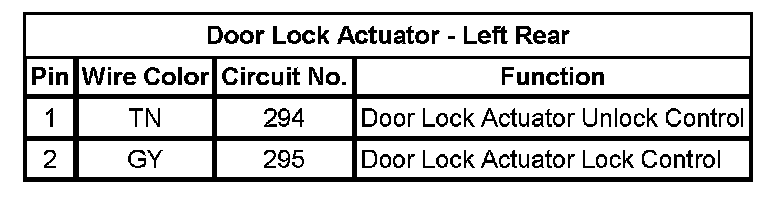

Door Lock Actuator - Left Rear

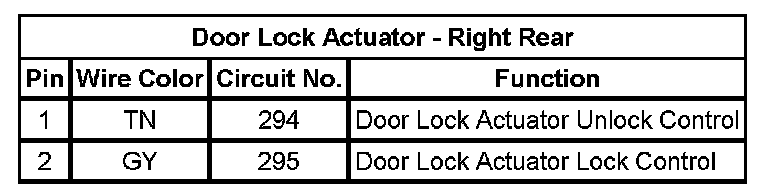

Door Lock Actuator - Right Rear

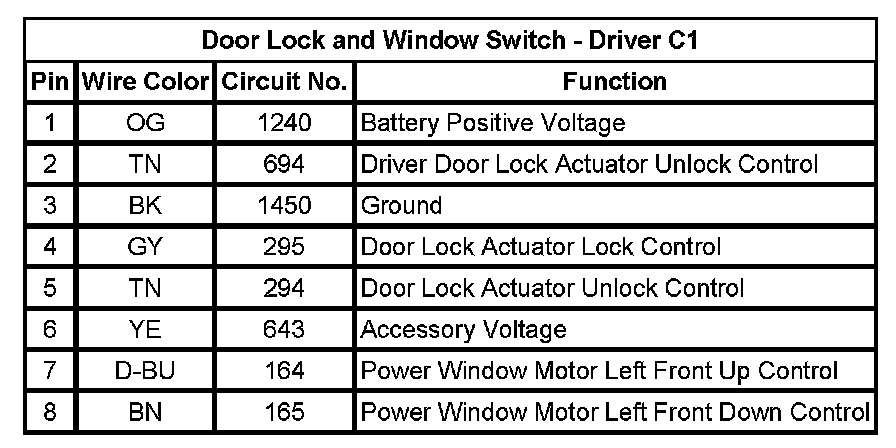

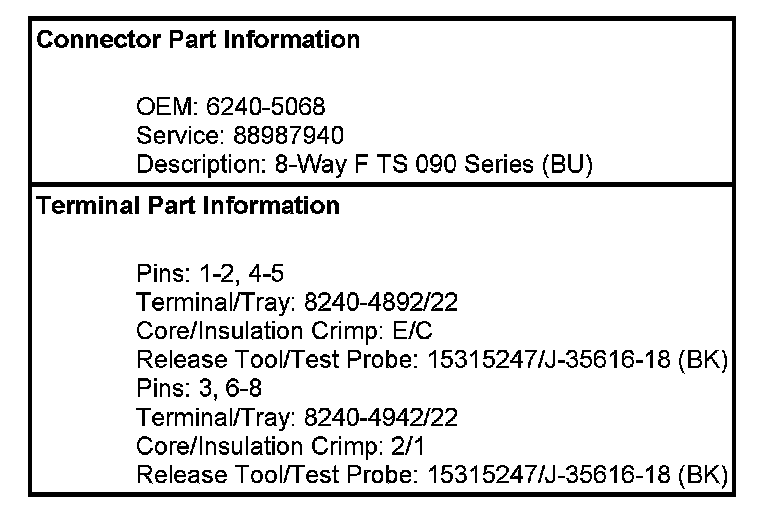

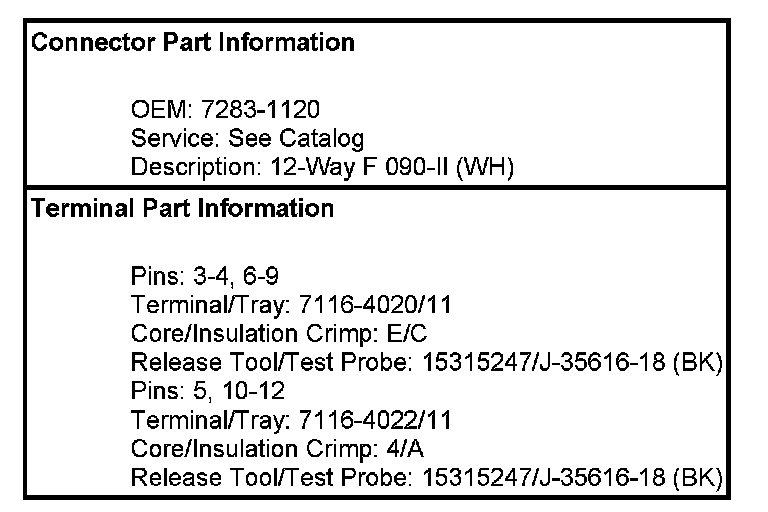

Door Lock and Window Switch - Driver C1














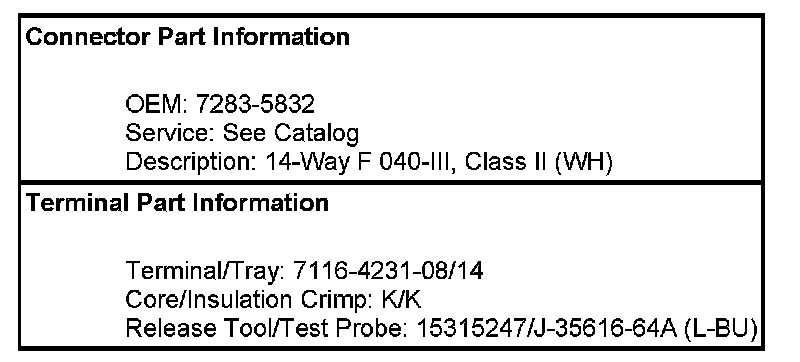

Door Lock and Window Switch - Driver C2














Door Lock and Window Switch - Passenger
