License Plate Lamp



Lighting Systems Connector End Views

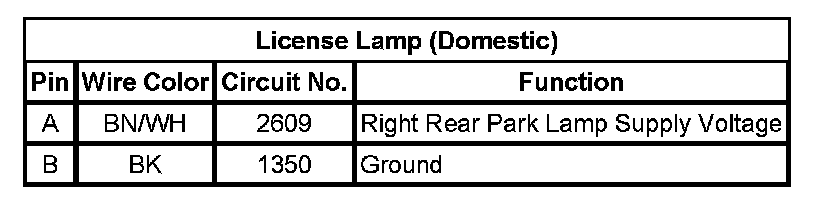

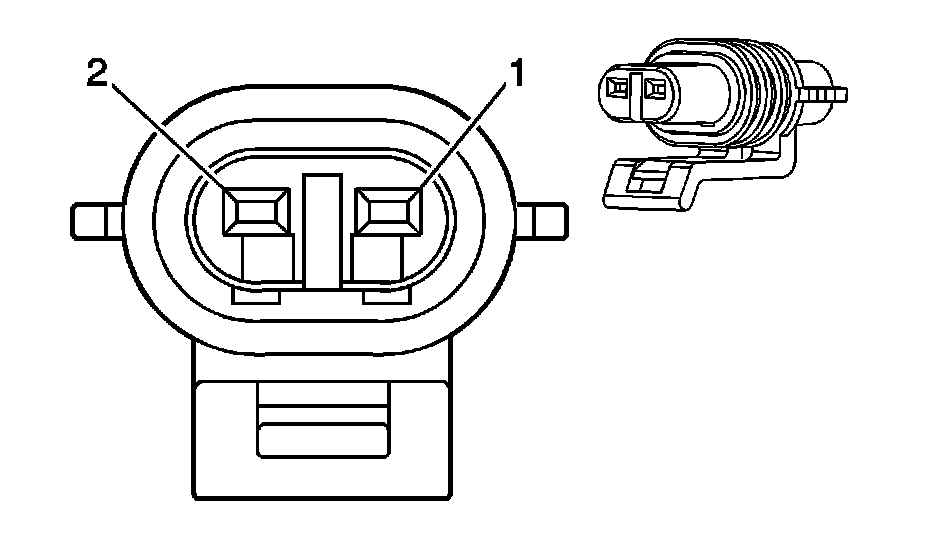

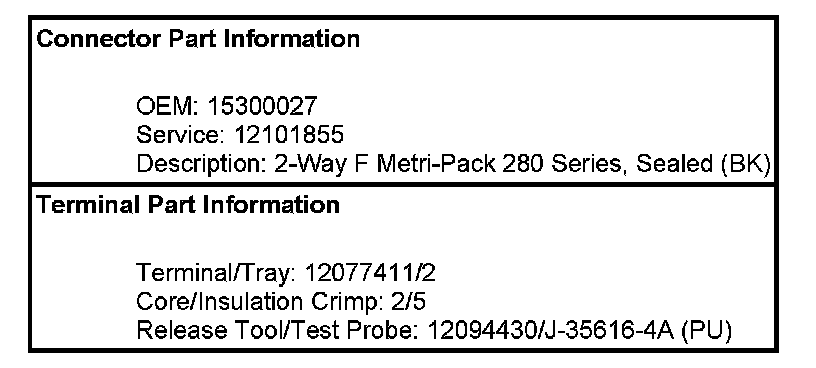

License Lamp (Domestic)

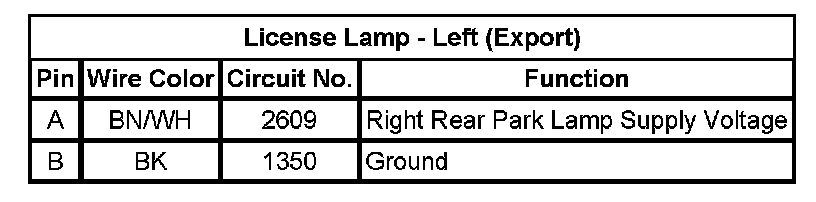

License Lamp - Left (Export)

Backup Lamp Switch:

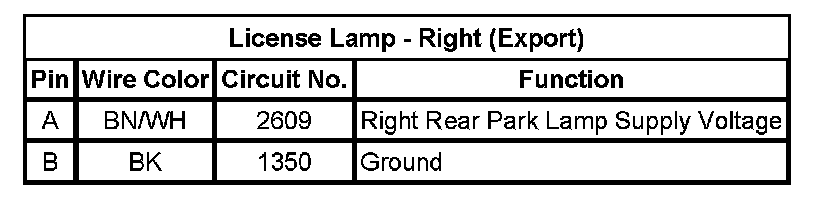

License Lamp - Right (Export)

Backup Lamp Switch:
