System Diagram



Displays and Gages Connector End Views

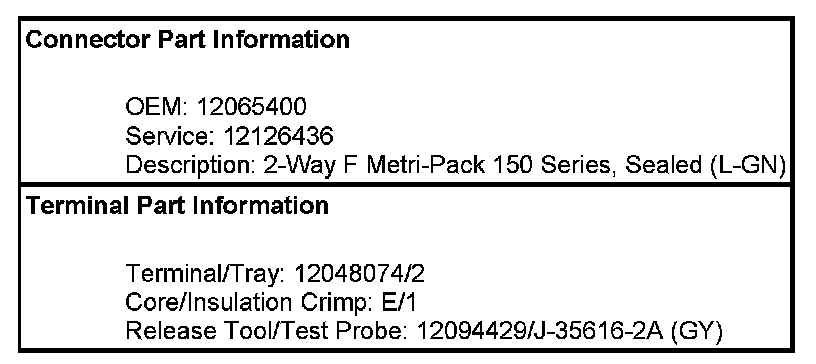

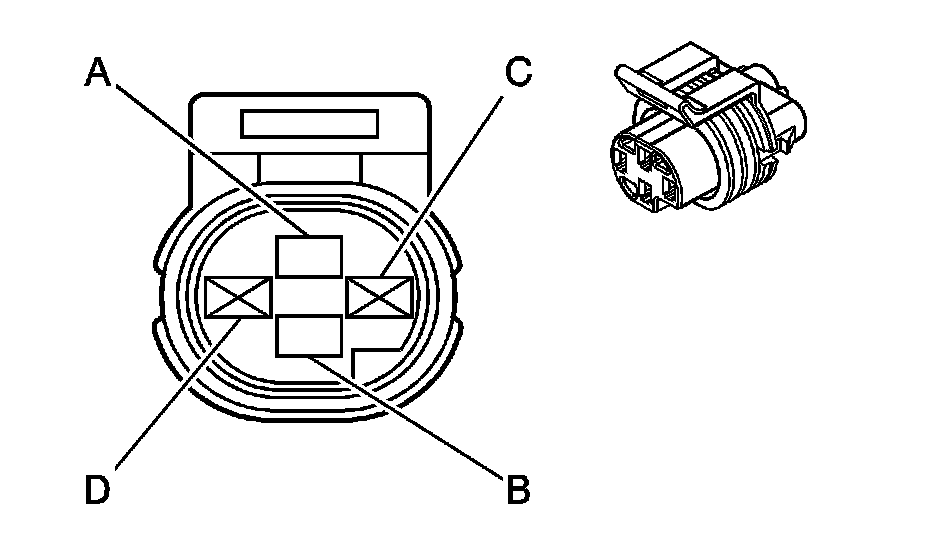

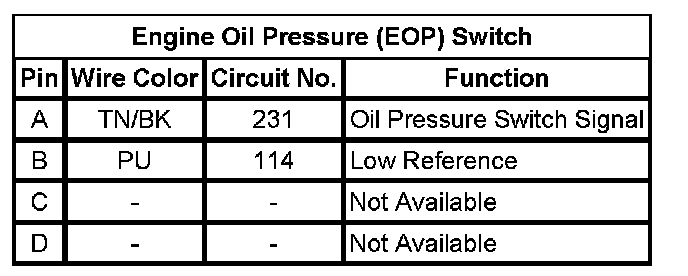

Engine Oil Pressure (EOP) Switch

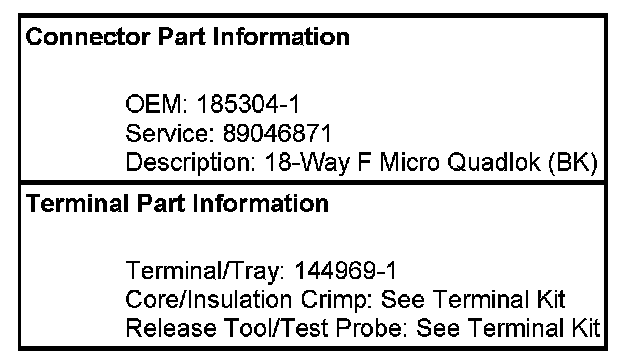

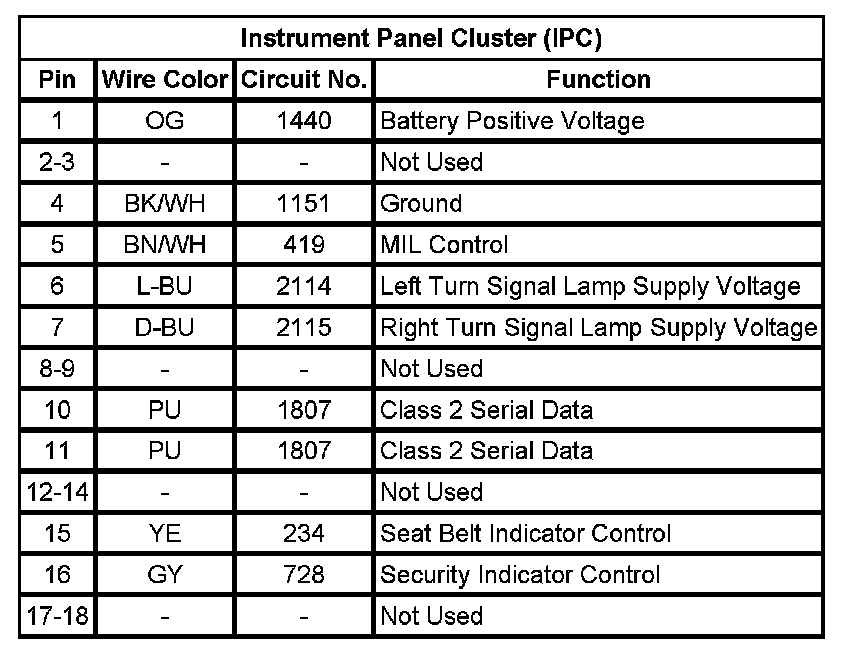

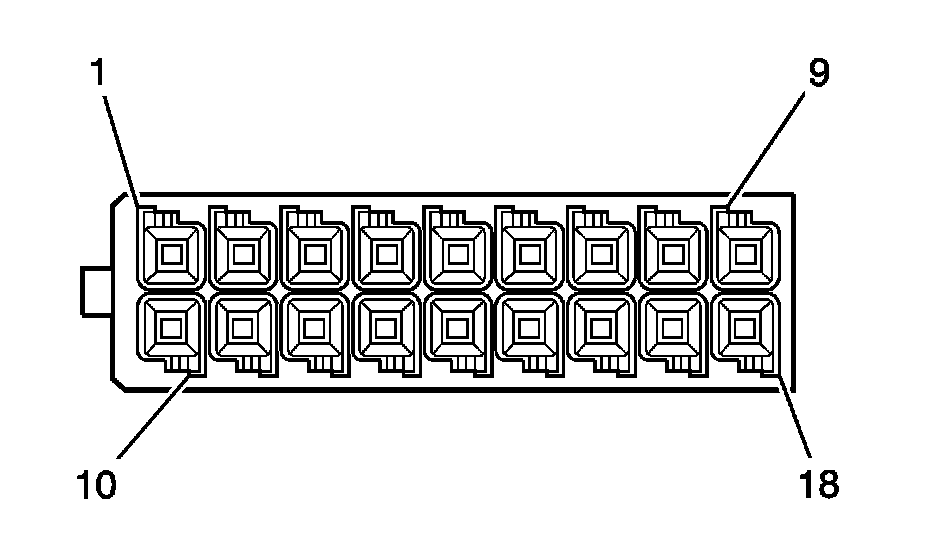

Instrument Panel Cluster (IPC)
