Fluid Pressure Sensor/Switch, A/T

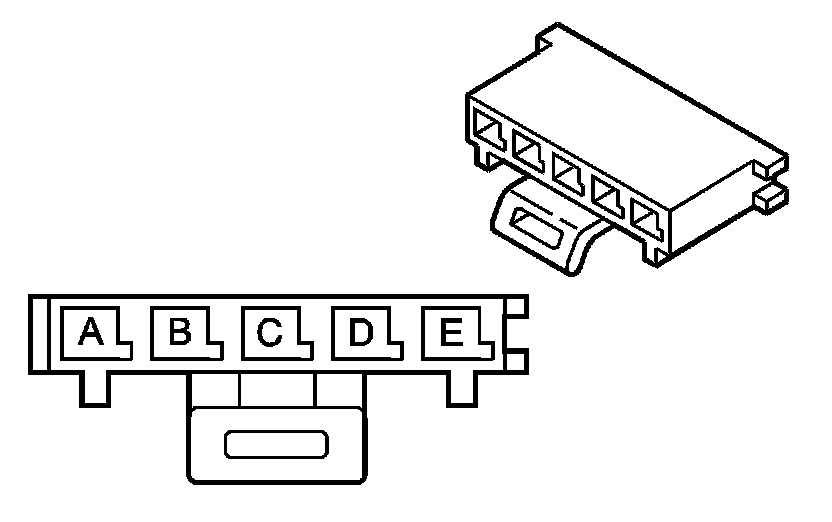

Automatic Transmission Fluid Pressure (TFP) Manual Valve Position Switch, Wiring Harness Side

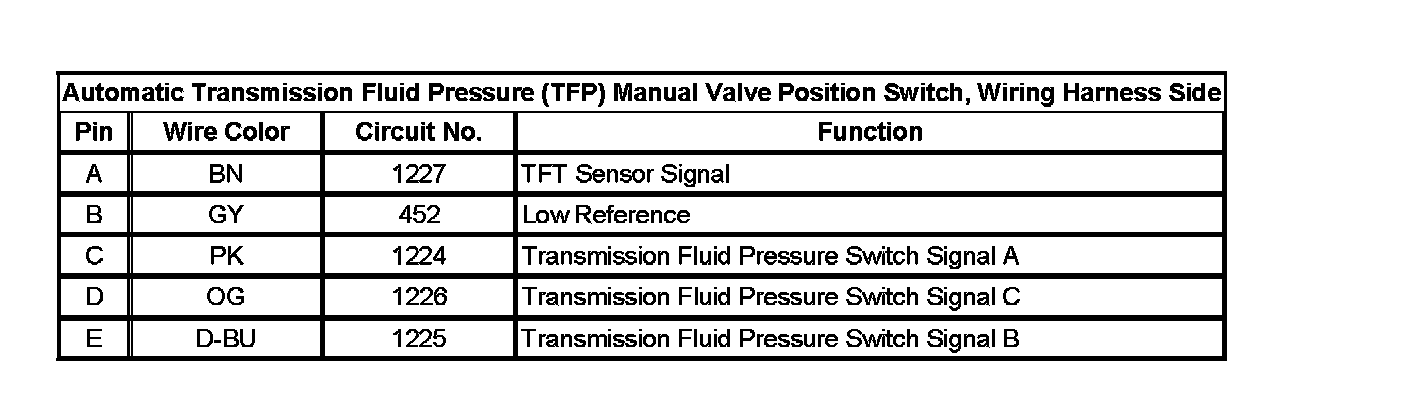

Automatic Transmission Fluid Pressure (TFP) Manual Valve Position Switch, Wiring Harness Side:
