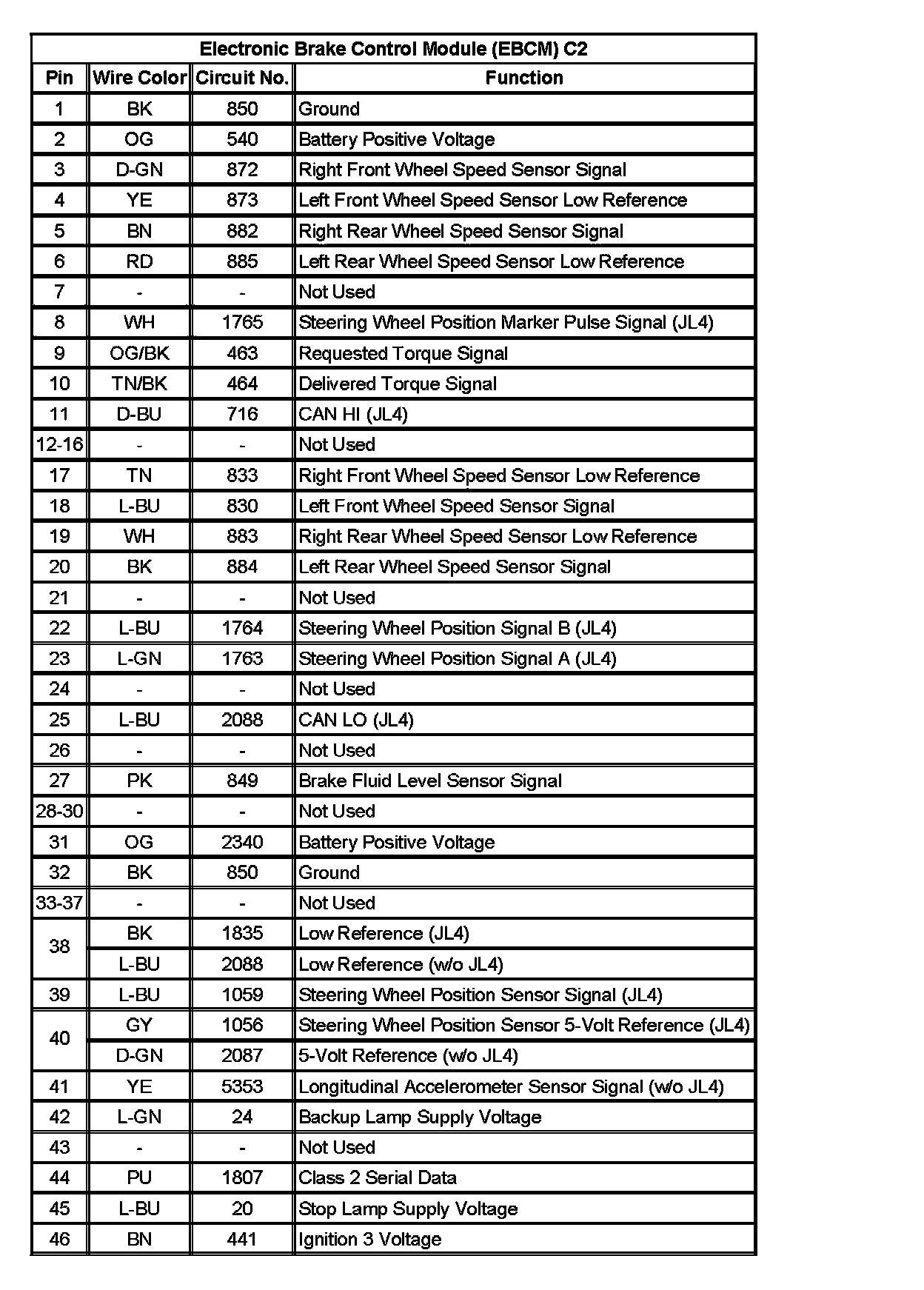

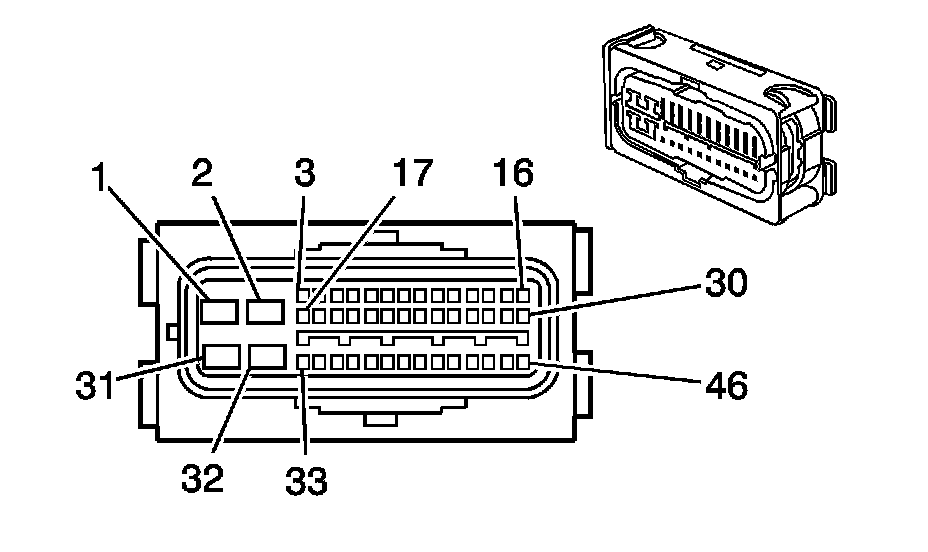

Electronic Brake Control Module (EBCM) C2



Electronic Brake Control Module (EBCM) C2







Electronic Brake Control Module (EBCM) C2:
