Home >> Hummer >> 2007 >> H3 L5-3.7L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Control Module, Transfer Case >> Transfer Case Shift Control Module C2

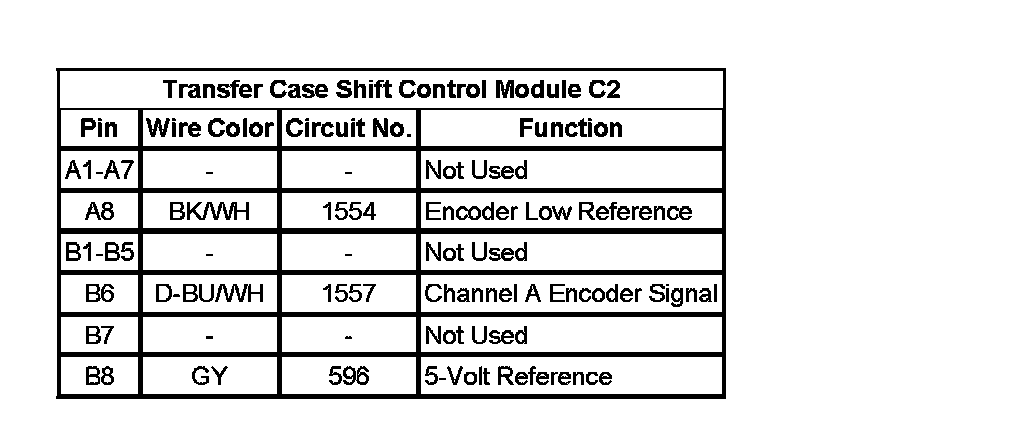

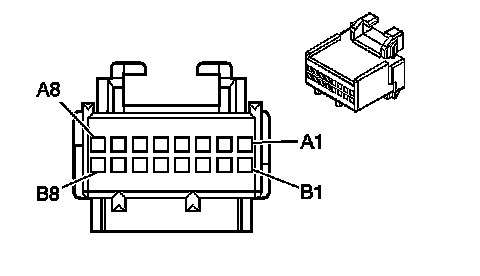

Transfer Case Shift Control Module C2



Transfer Case Shift Control Module C2







Transfer Case Shift Control Module C2:
