Transfer Case Shift Control Module C1



Transfer Case Shift Control Module C1

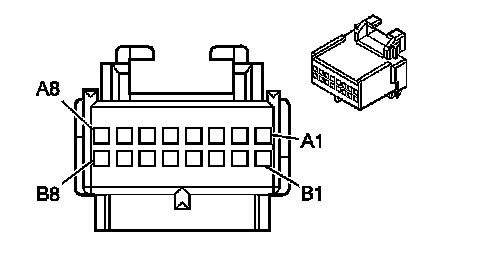

Transfer Case Shift Control Module - C1:

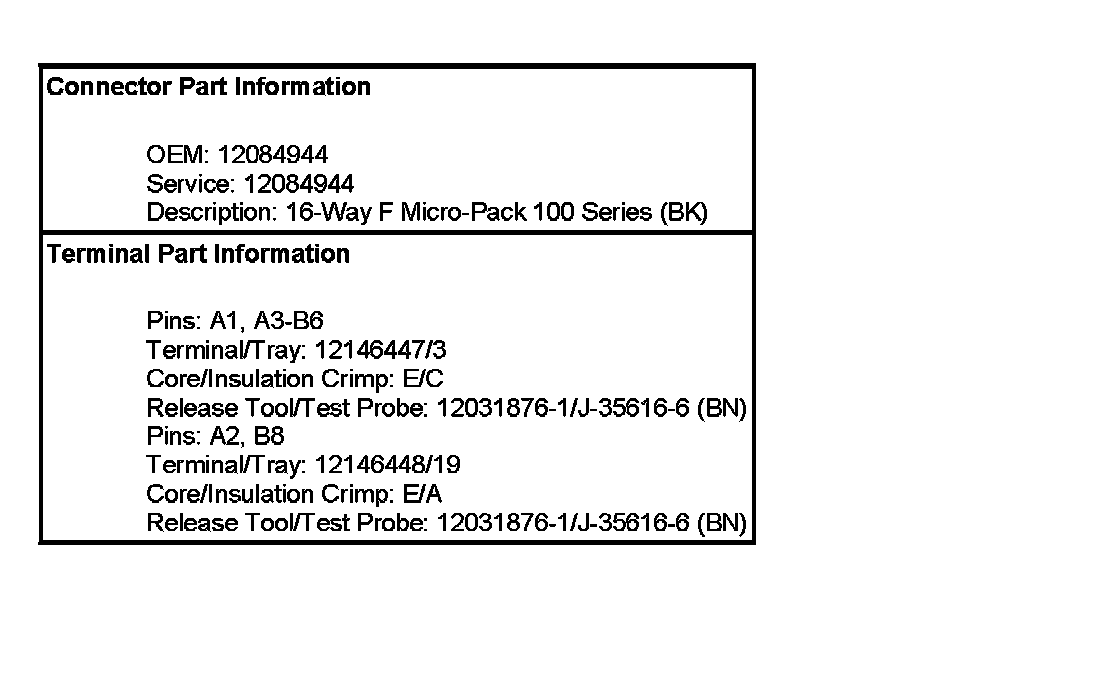

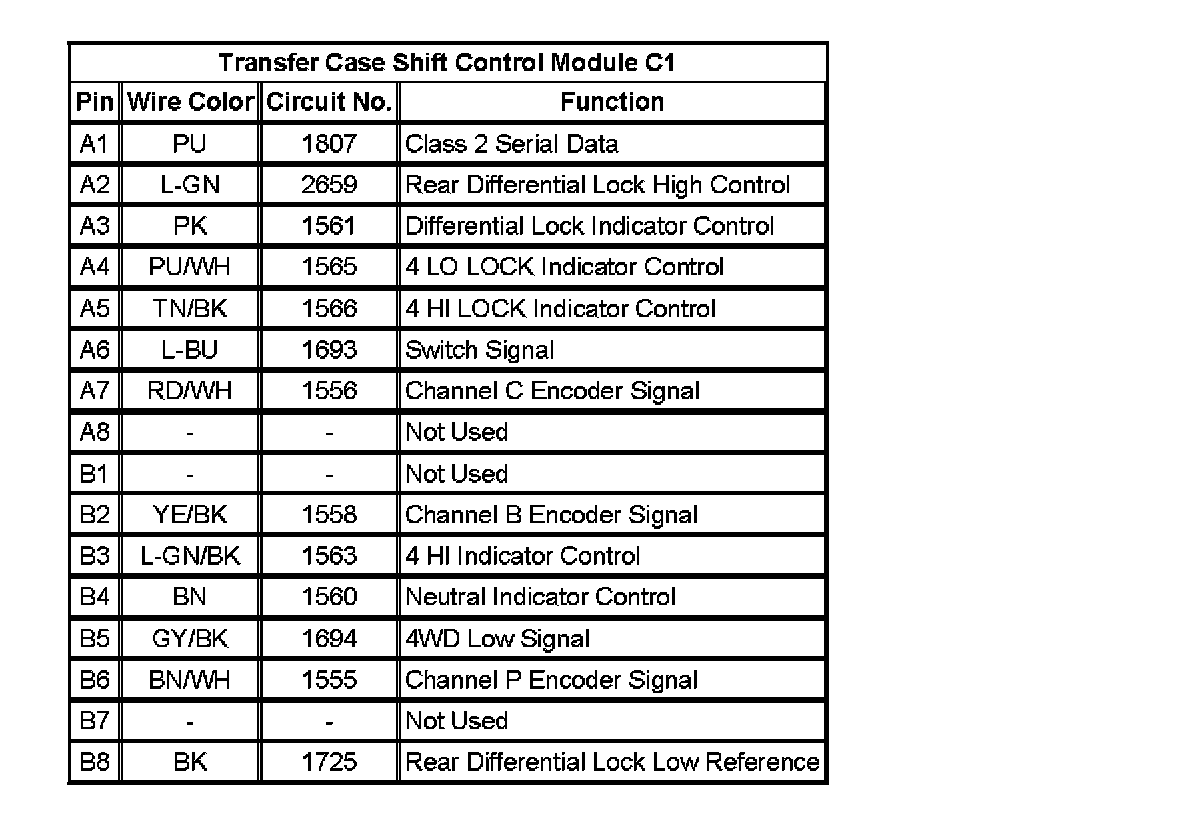

Transfer Case Shift Control Module C1:
