Home >> Hummer >> 2007 >> H3 L5-3.7L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Backup Lamp >> System Diagram

System Diagram

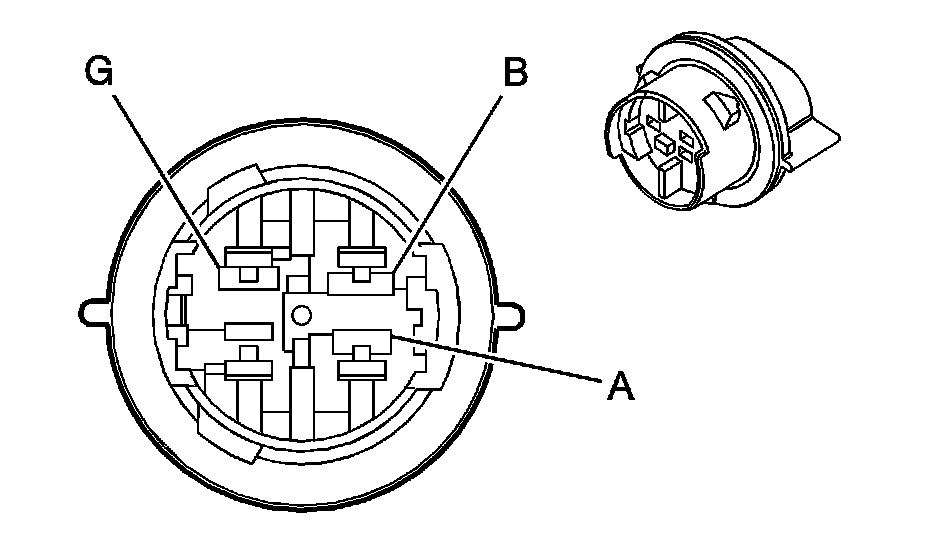

Lighting Systems Connector End Views

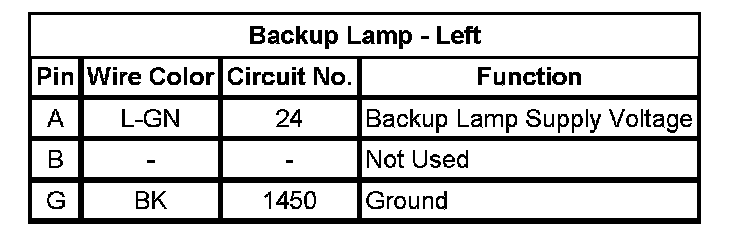

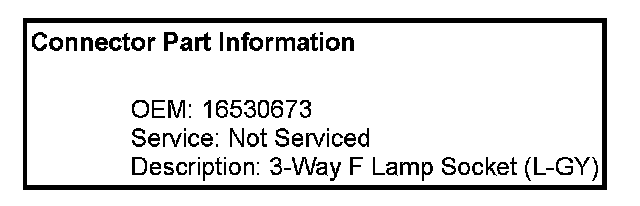

Backup Lamp - Left

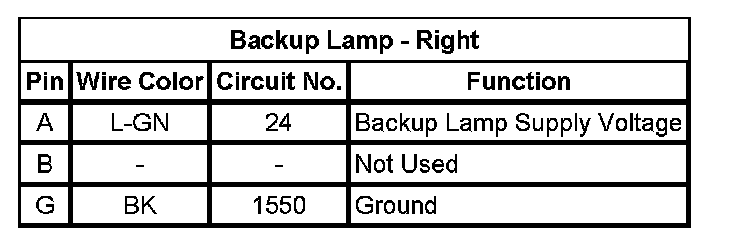

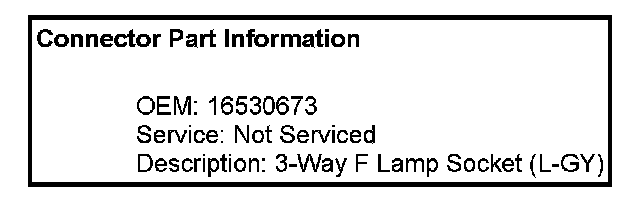

Backup Lamp - Right
