Trailer Connector



Lighting Systems Connector End Views

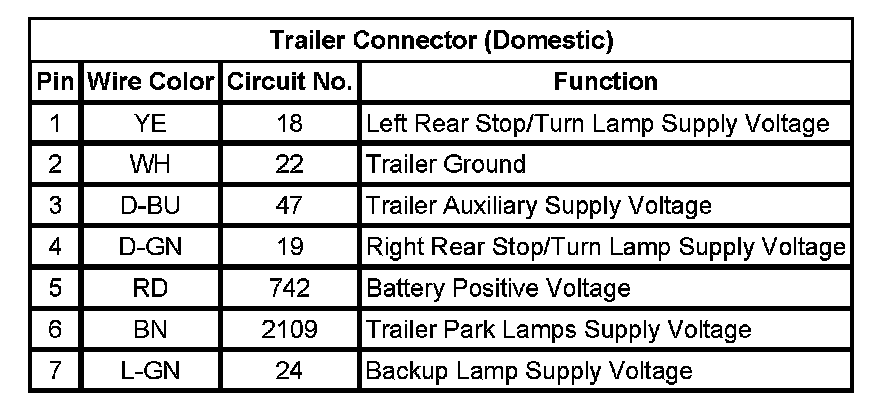

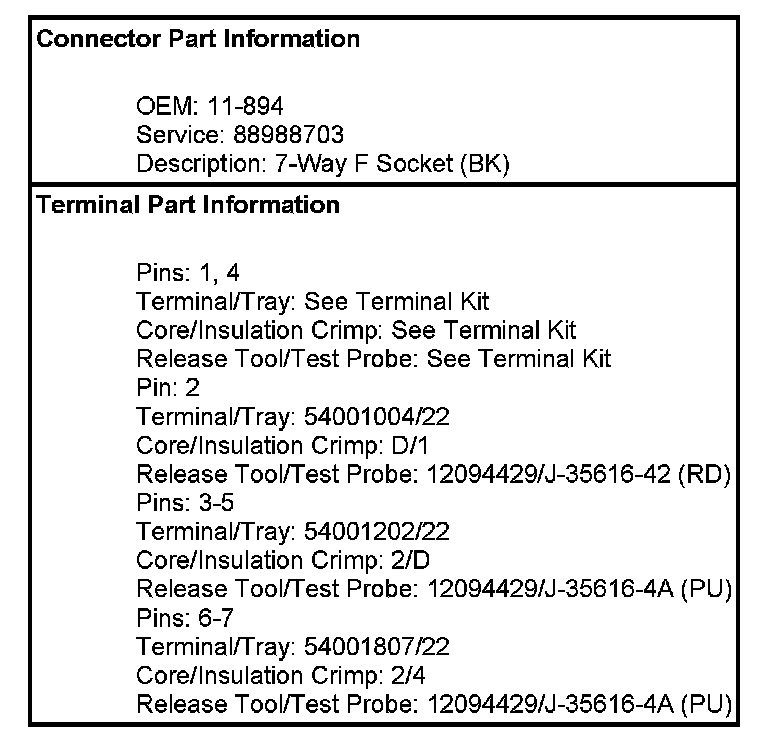

Trailer Connector (Domestic)

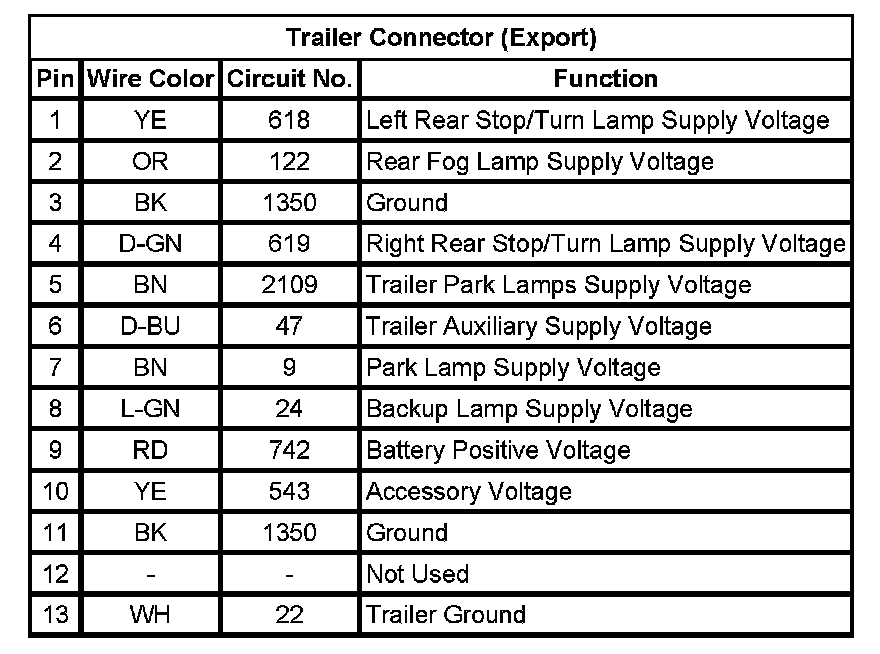

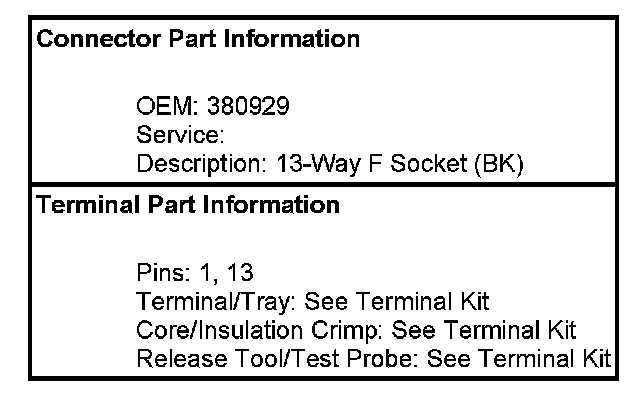

Trailer Connector (Export)
