System Diagram

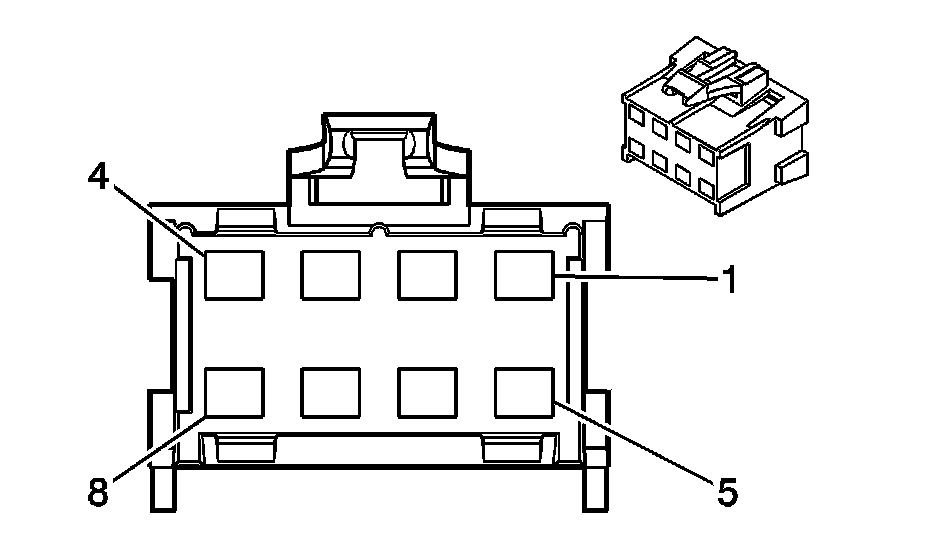

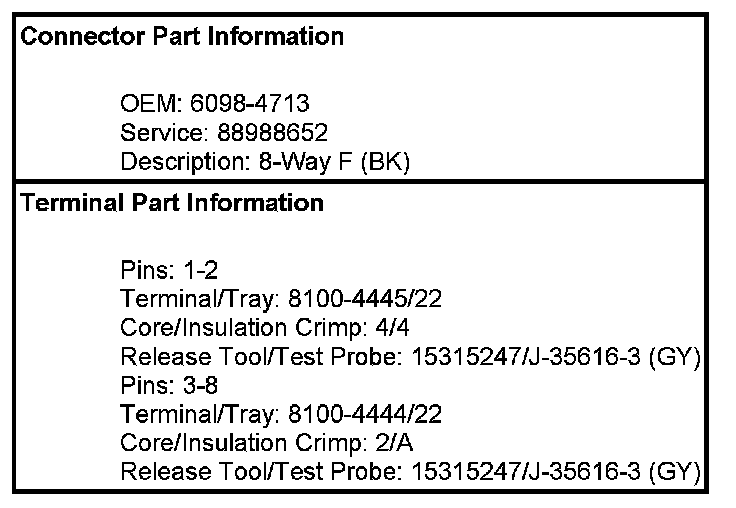

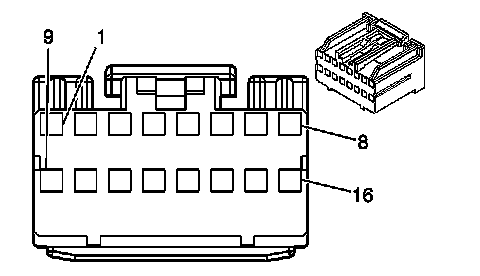

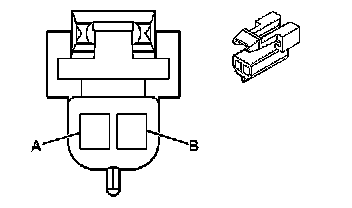

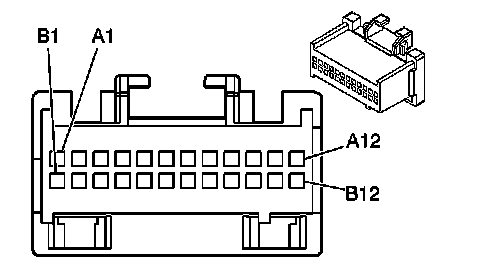

Entertainment/Communication Connector End Views

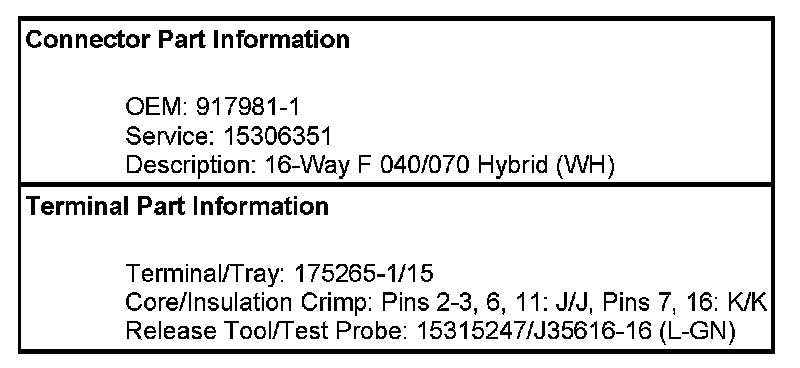

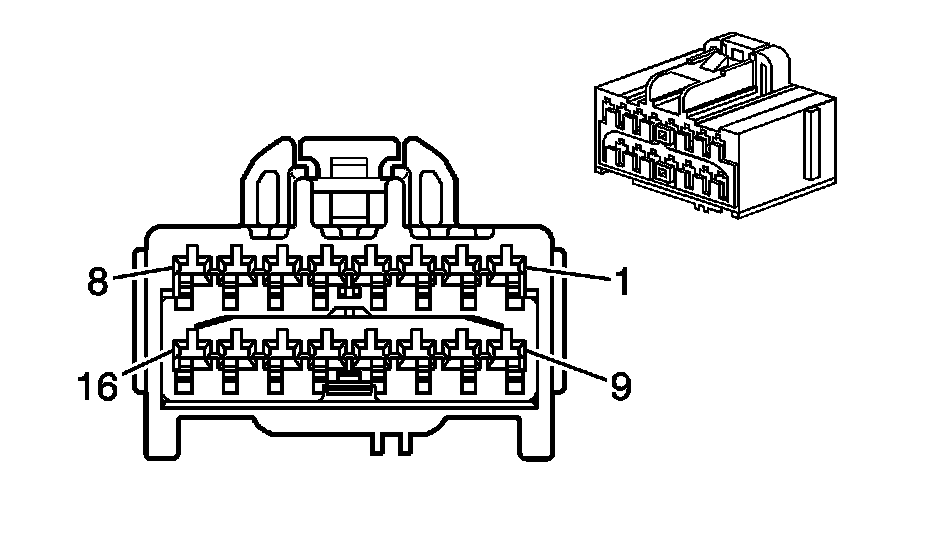

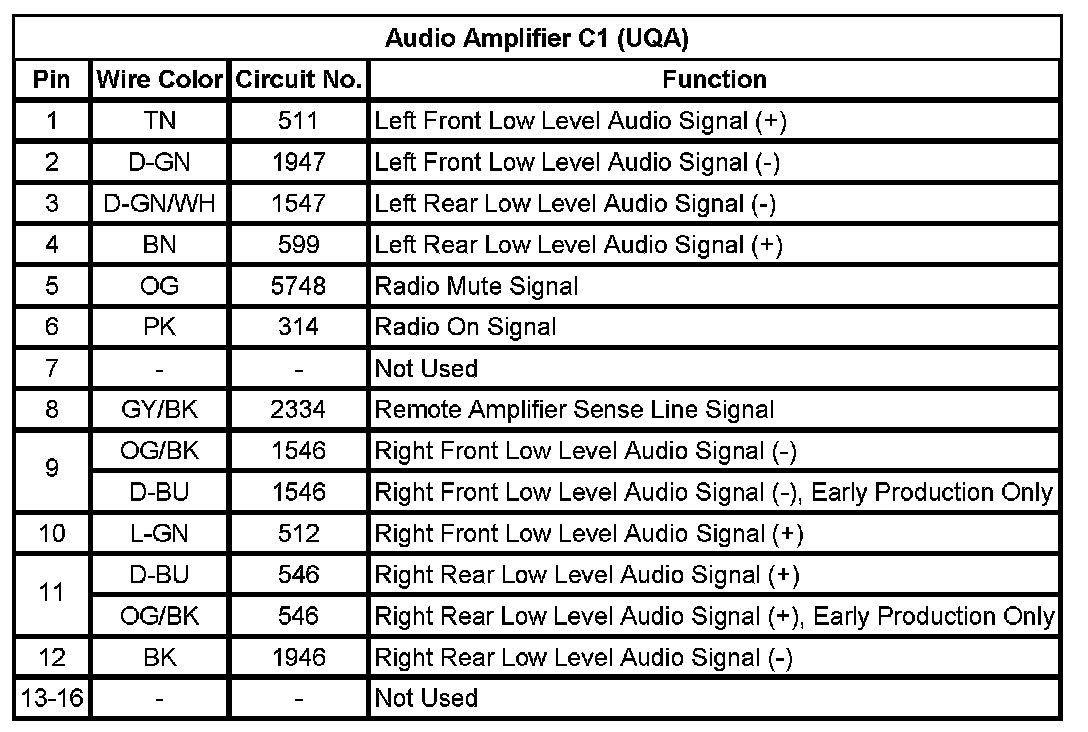

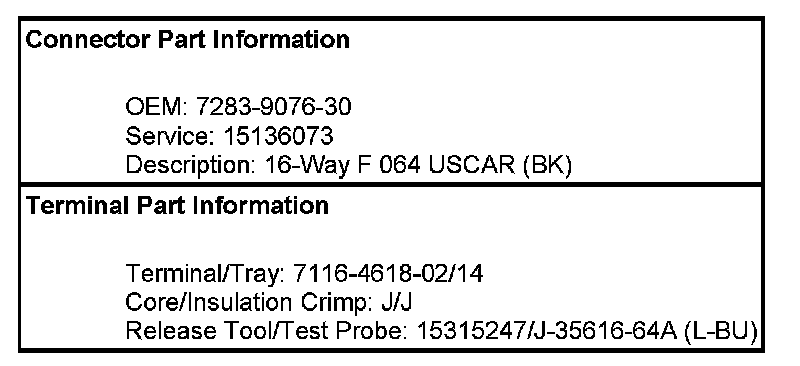

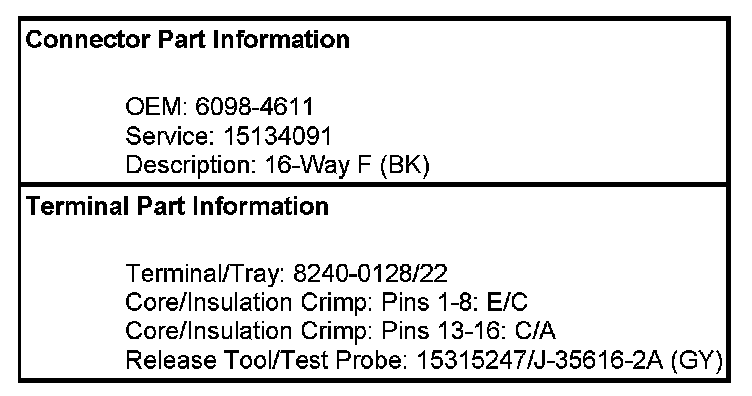

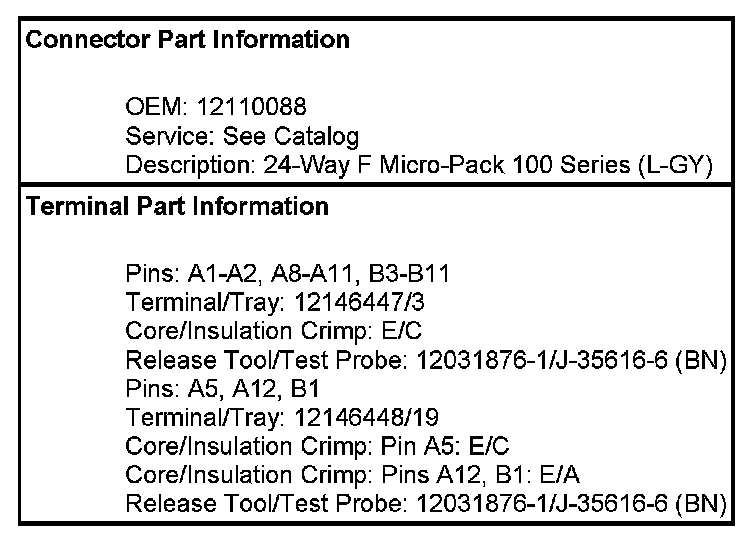

Audio Amplifier C1 (UQA)

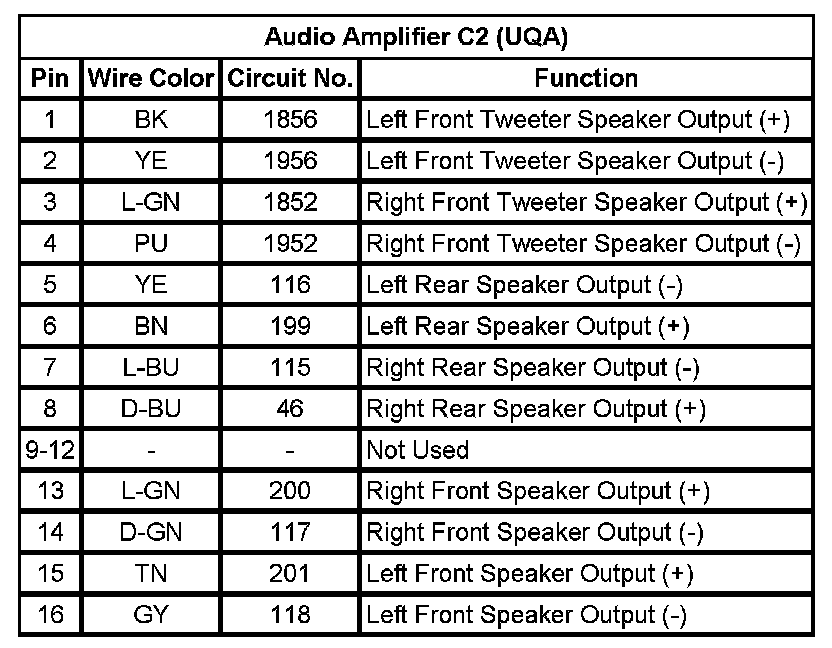

Audio Amplifier C2 (UQA)

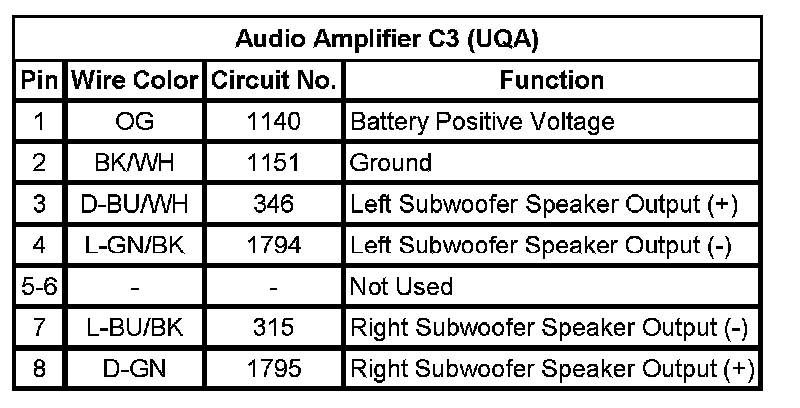

Audio Amplifier C3 (UQA)

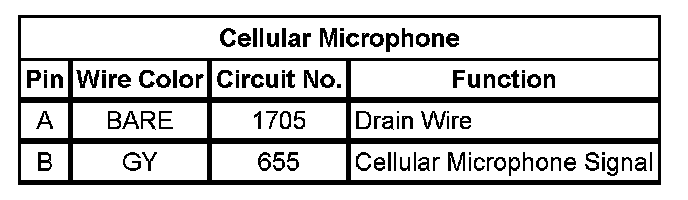

Cellular Microphone

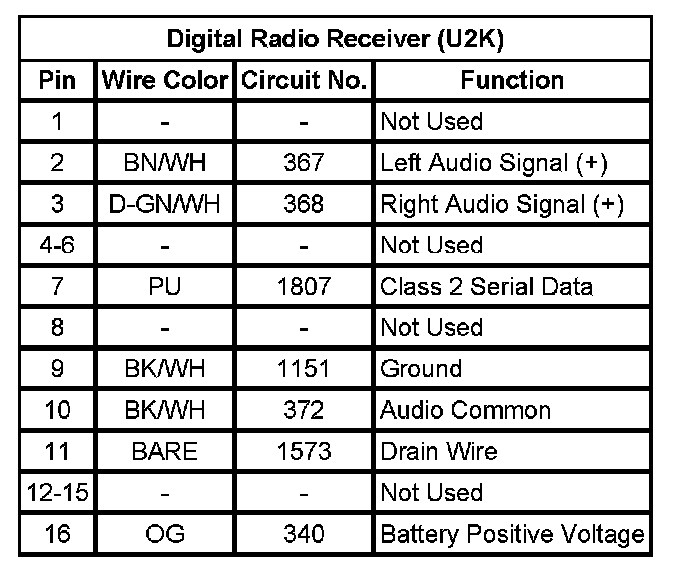

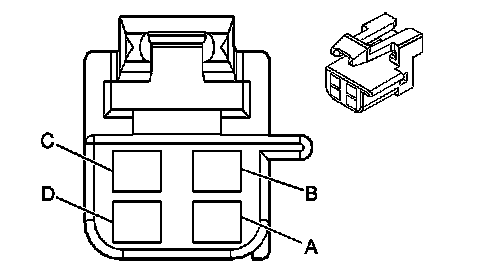

Digital Radio Receiver (U2K)

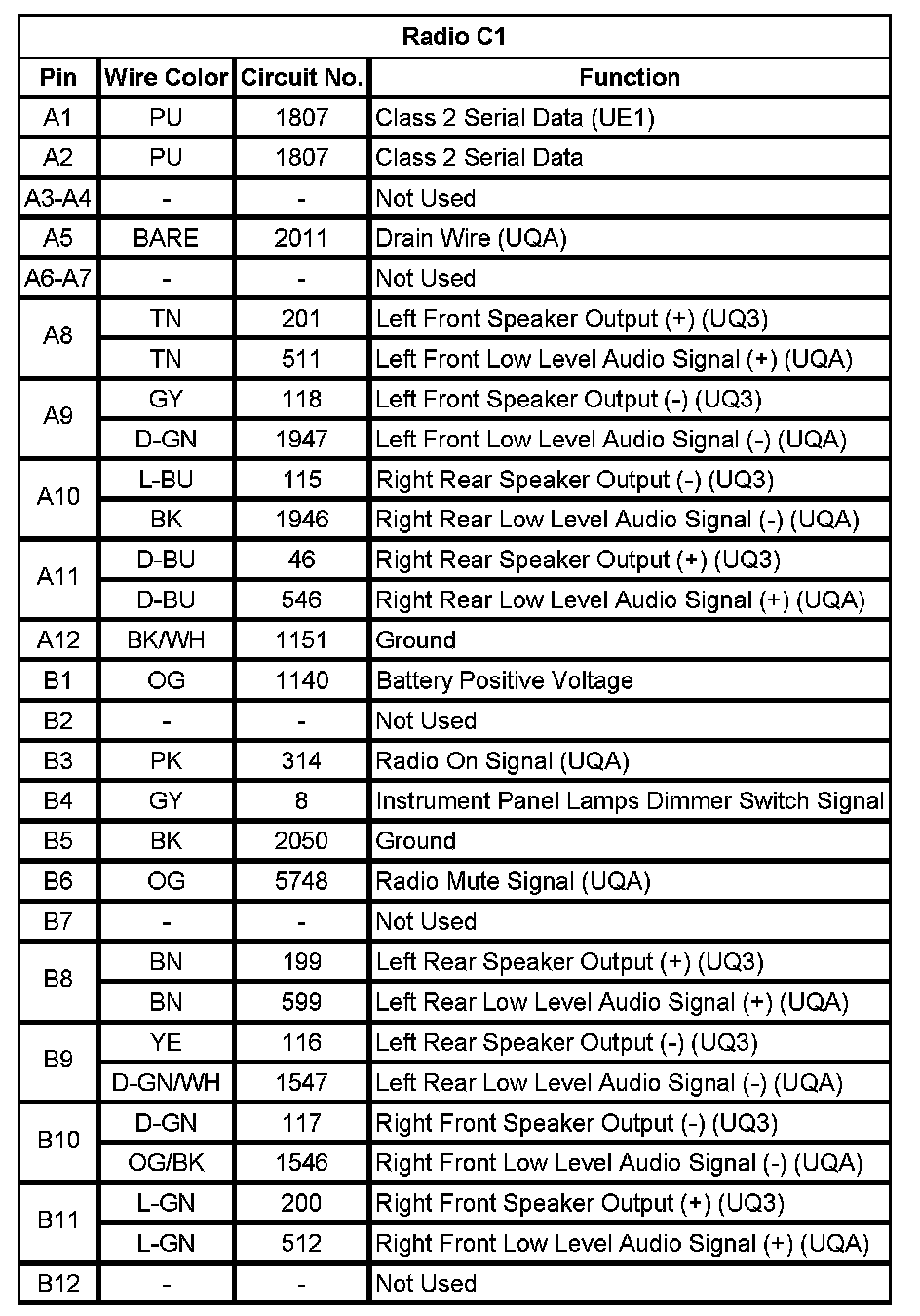

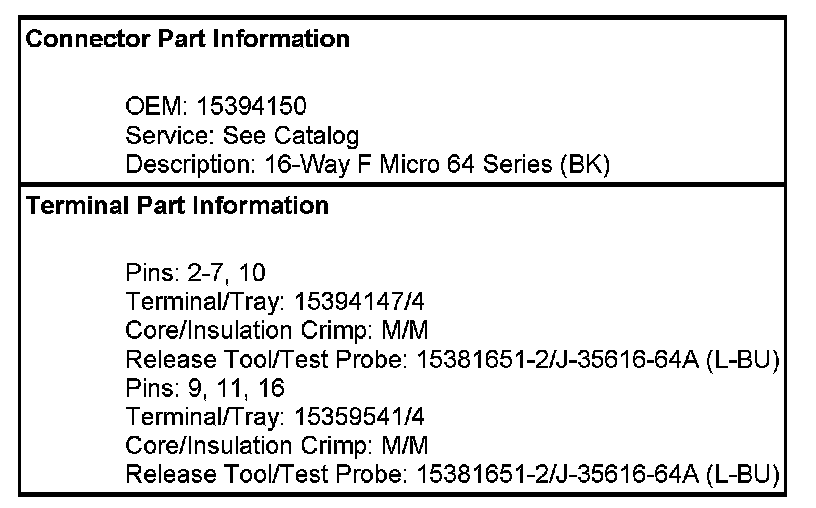

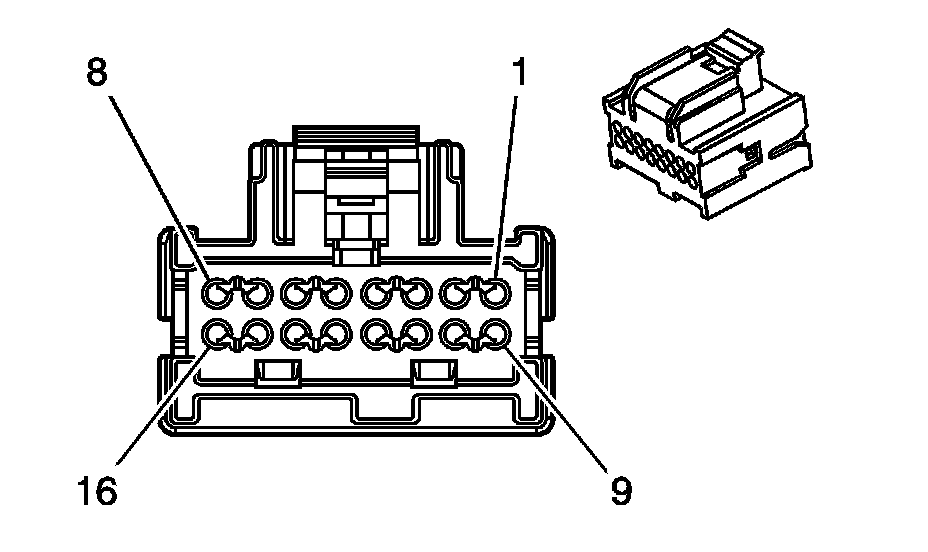

Radio C1

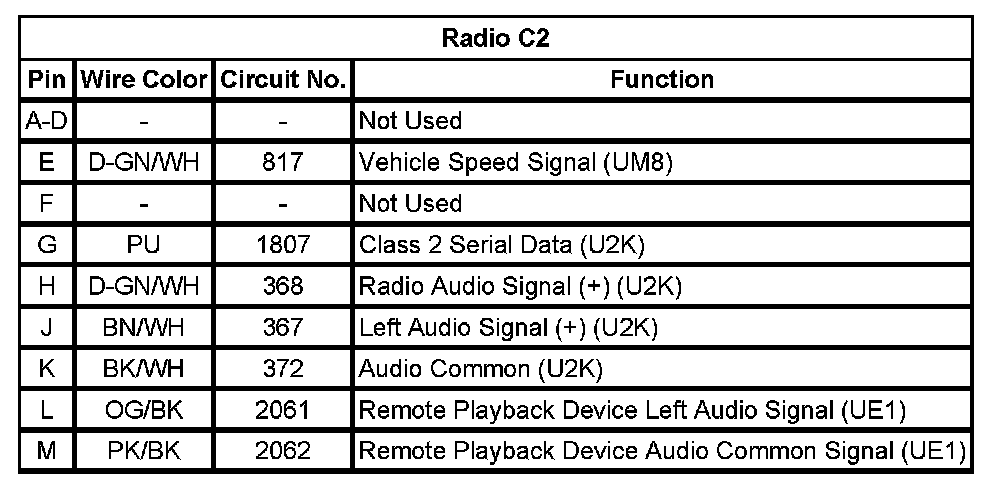

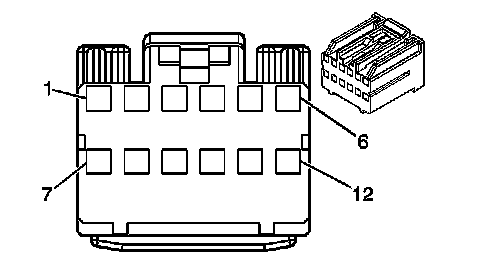

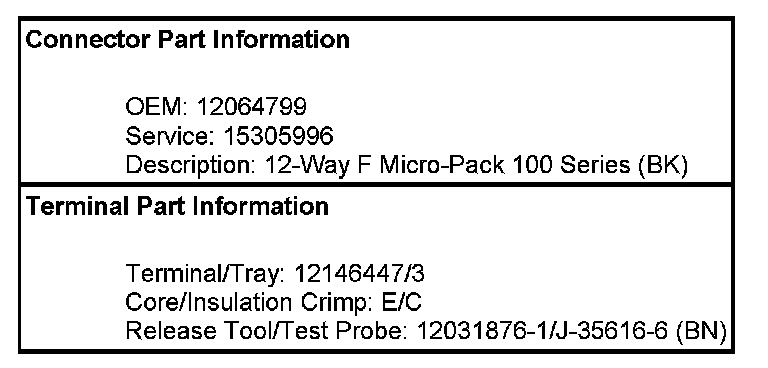

Radio C2

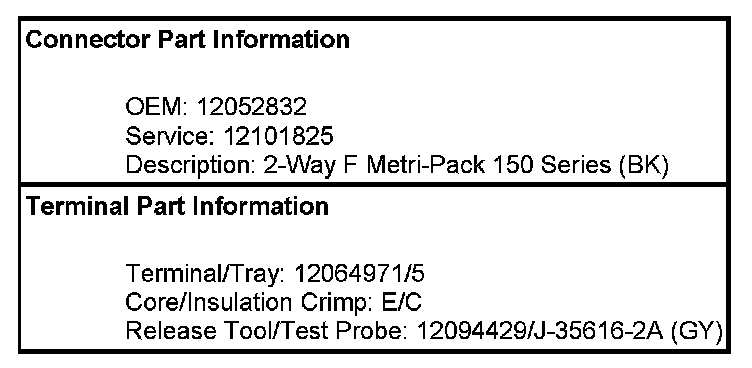

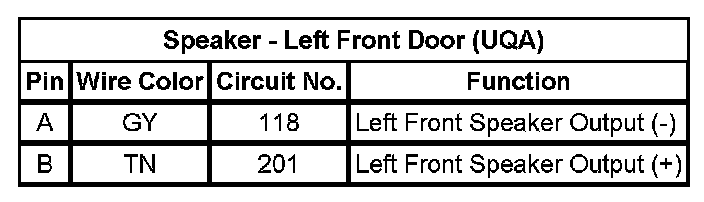

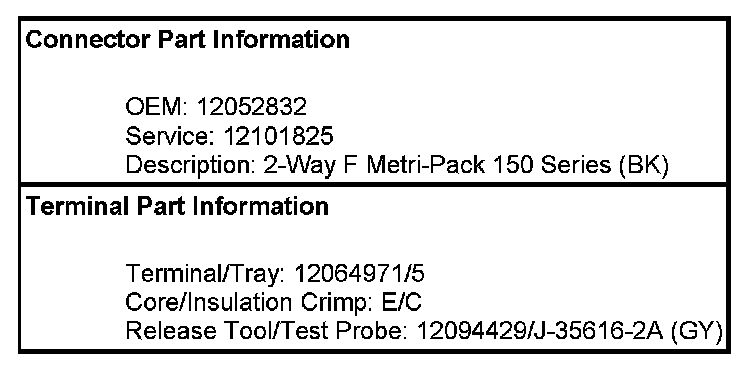

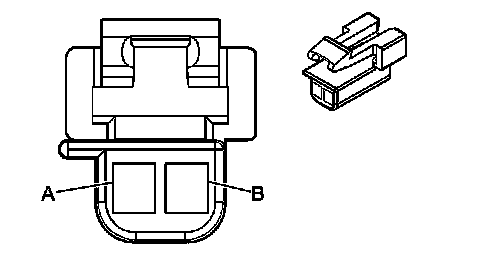

Speaker - Left Front Door (UQA)

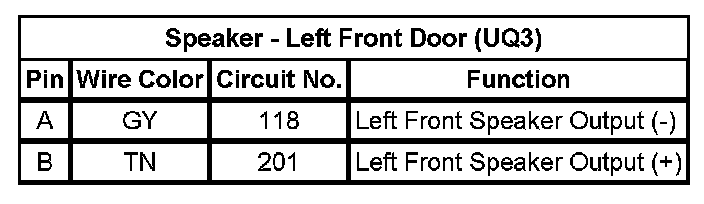

Speaker - Left Front Door (UQ3)
A/T Shift Lock Control Solenoid:

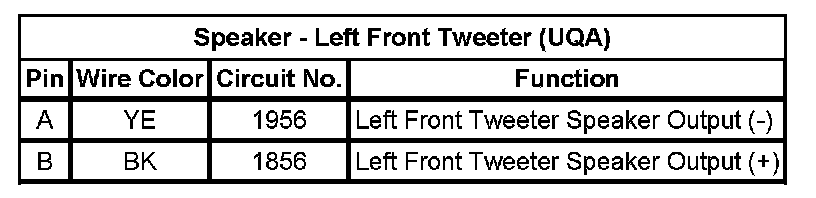

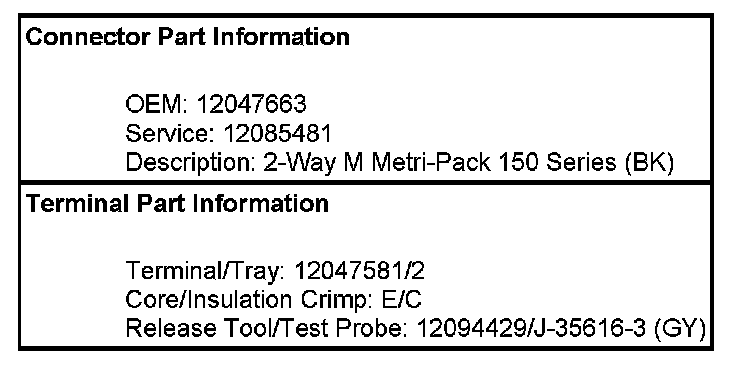

Speaker - Left Front Tweeter (UQA)
A/T Shift Lock Control Solenoid:
Speaker - Left Front Tweeter (UQ3)
A/T Shift Lock Control Solenoid:

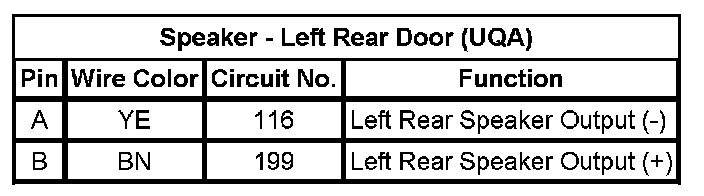

Speaker - Left Rear Door (UQA)

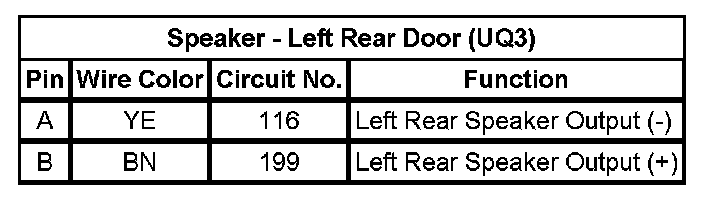

Speaker - Left Rear Door (UQ3)
A/T Shift Lock Control Solenoid:

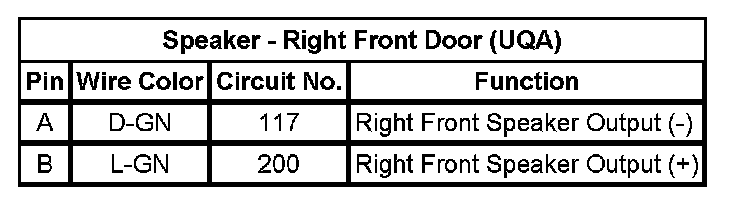

Speaker - Right Front Door (UQA)

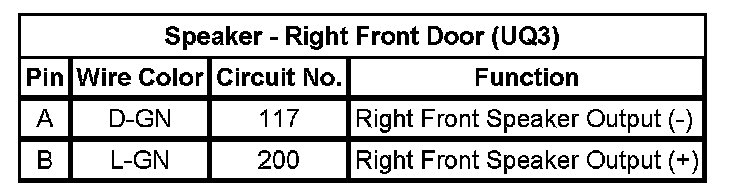

Speaker - Right Front Door (UQ3)
A/T Shift Lock Control Solenoid:

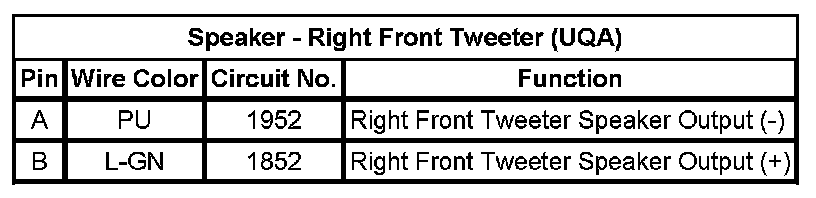

Speaker - Right Front Tweeter (UQA)
A/T Shift Lock Control Solenoid:

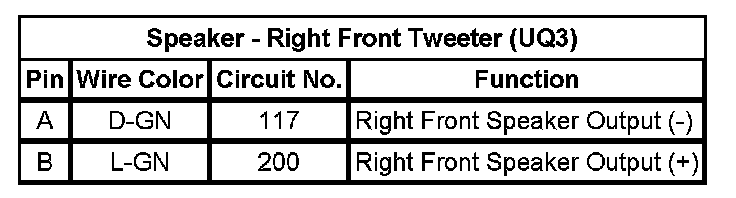

Speaker - Right Front Tweeter (UQ3)
A/T Shift Lock Control Solenoid:

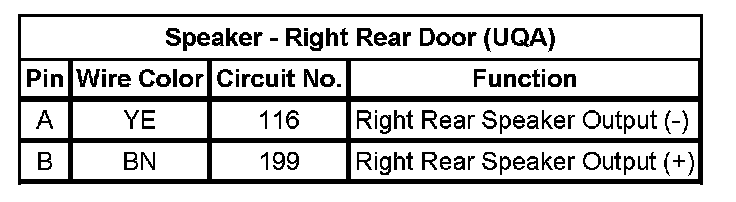

Speaker - Right Rear Door (UQA)

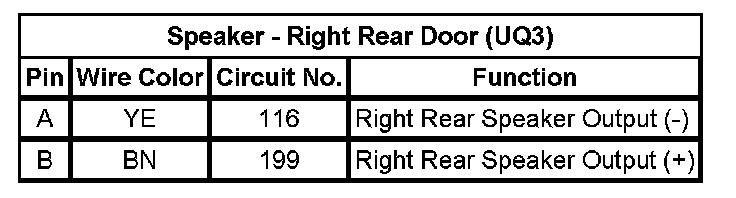

Speaker - Right Rear Door (UQ3)
A/T Shift Lock Control Solenoid:

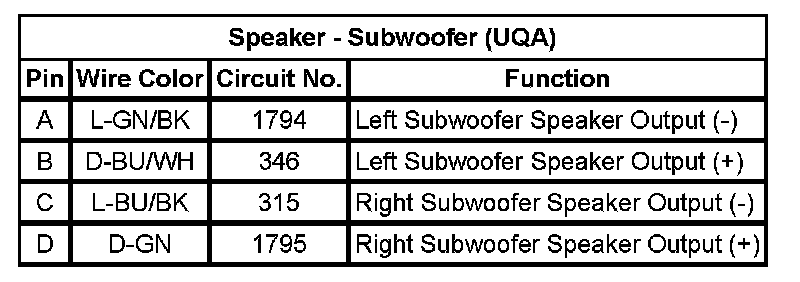

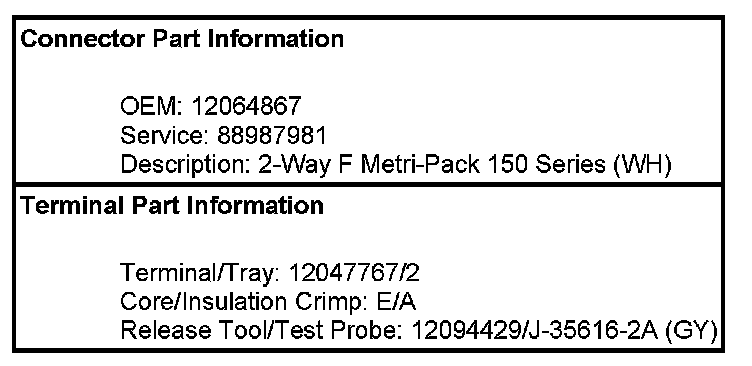

Speaker - Subwoofer (UQA)

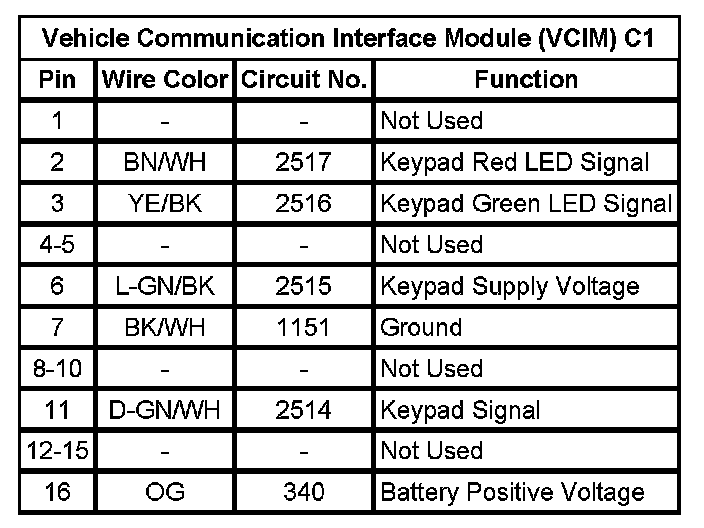

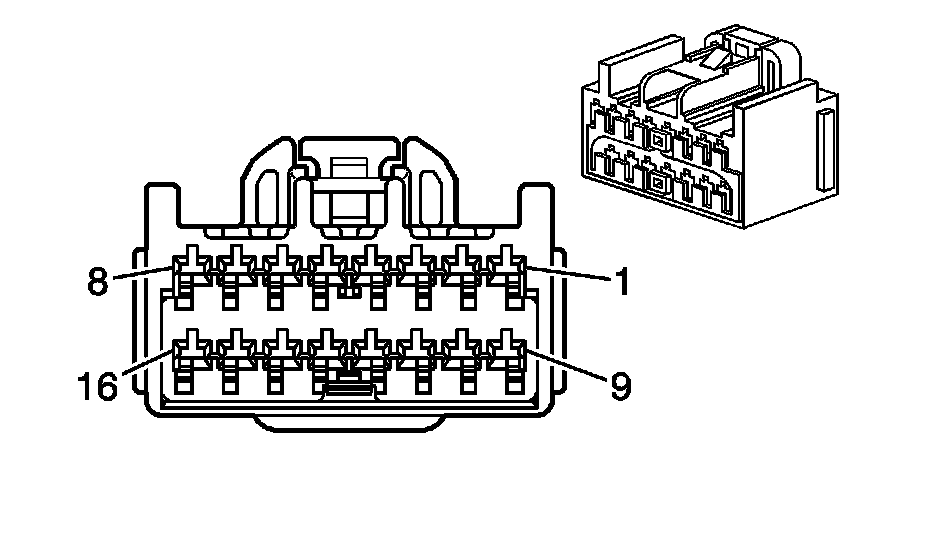

Vehicle Communication Interface Module (VCIM) C1

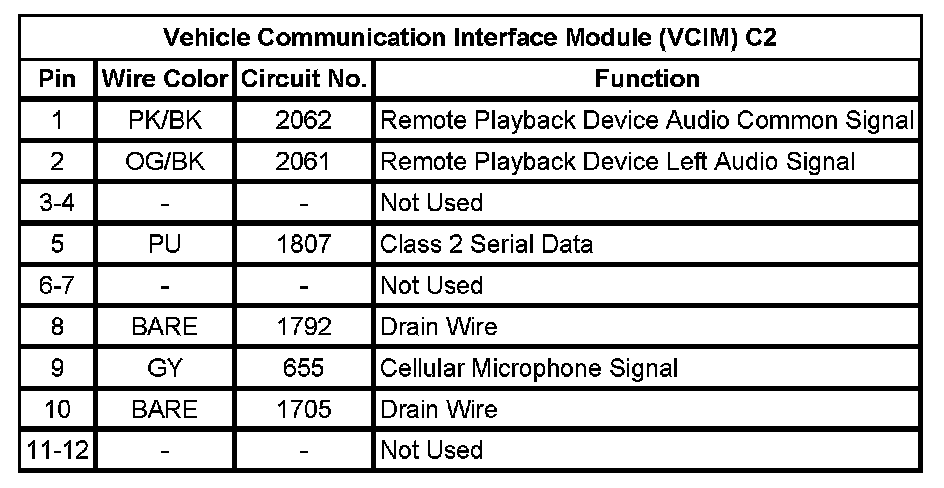

Vehicle Communication Interface Module (VCIM) C2
