Home >> Hummer >> 2007 >> H3 L5-3.7L >> Repair and Diagnosis >> Body and Frame >> Seats >> Seat Back >> Service and Repair >> Front Seat Back Hinge and Recliner Mechanism Replacement

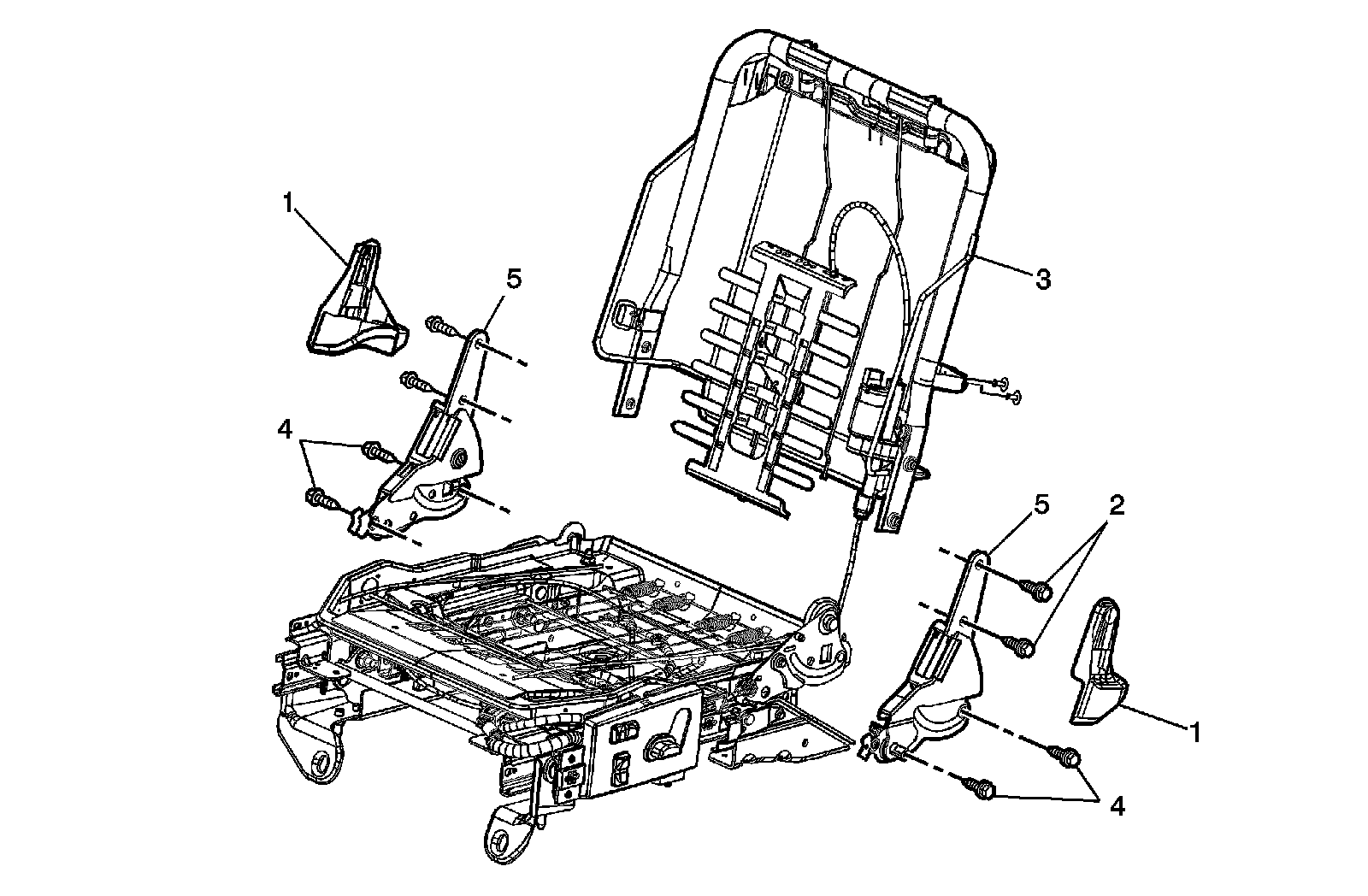

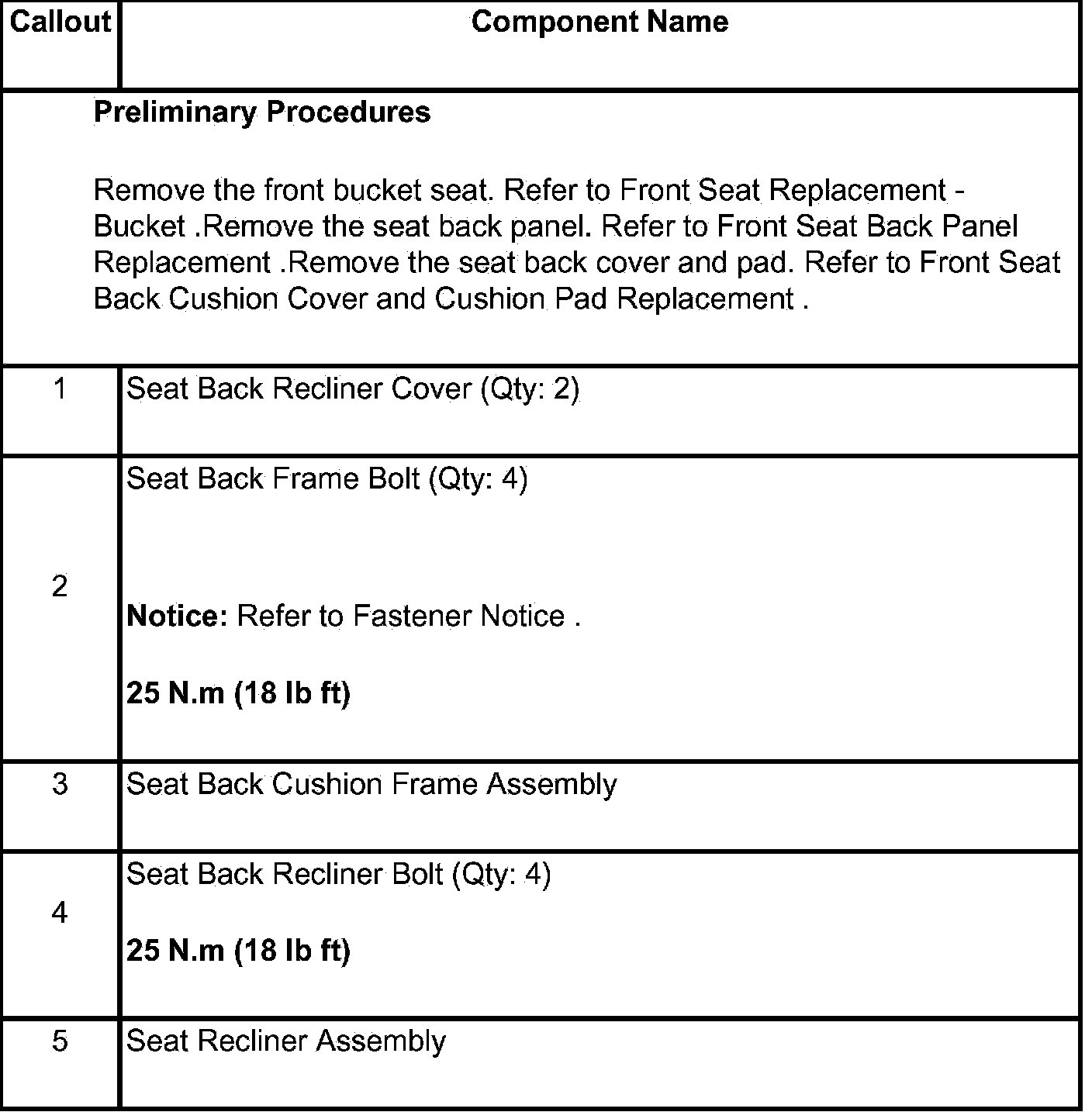

Front Seat Back Hinge and Recliner Mechanism Replacement



Front Seat Back Hinge and Recliner Mechanism Replacement
