Automatic Day-Night Mirrors Inoperative



Automatic Day-Night Mirrors Inoperative

Diagnostic Aids

The automatic day-night feature of the inside rearview mirror may not operate properly or become inoperative due to an intermittent short to battery voltage in the backup lighting system.

TEST

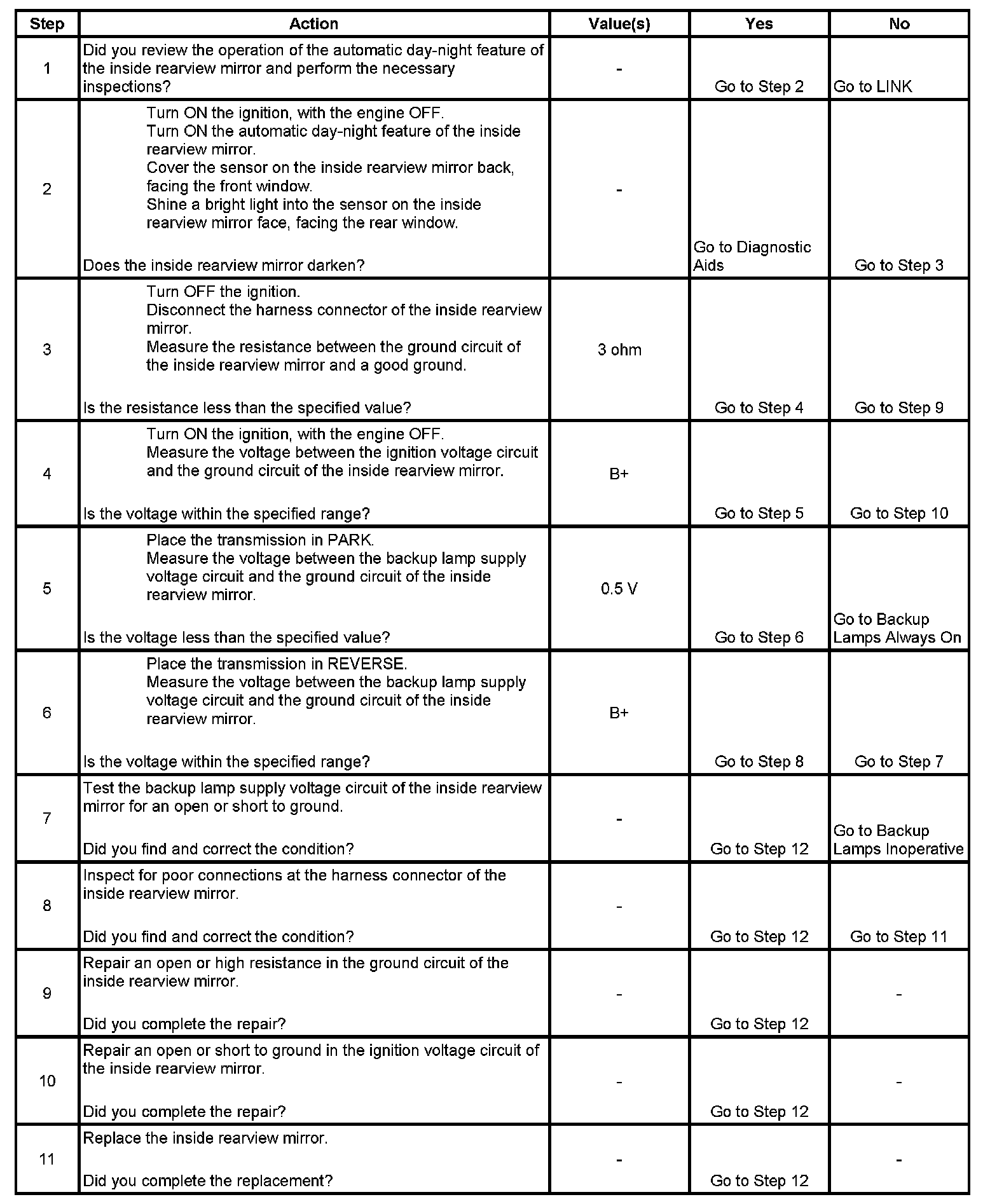

Step 1 - Step 11:

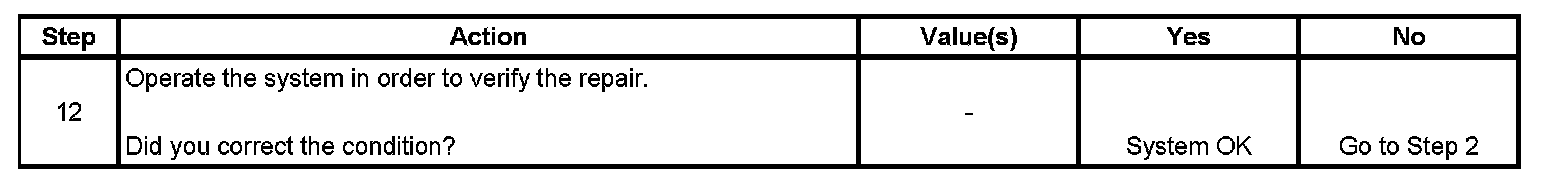

Step 12:
