Home >> Hummer >> 2007 >> H3 L5-3.7L >> Repair and Diagnosis >> Body and Frame >> Locks >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Door Ajar Indicator Malfunction

Door Ajar Indicator Malfunction



Door Ajar Indicator Malfunction

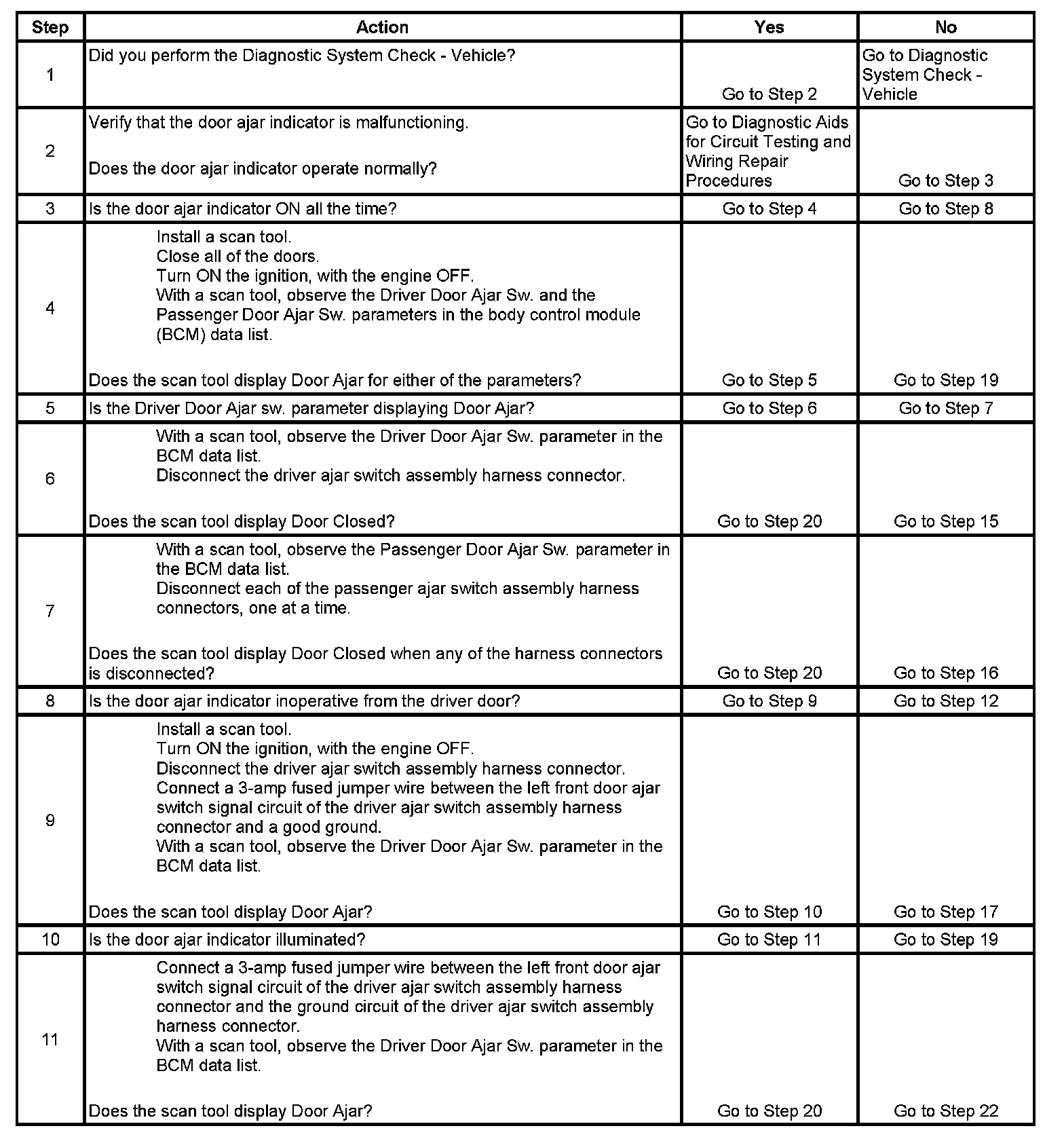

Step 1 - Step 11:

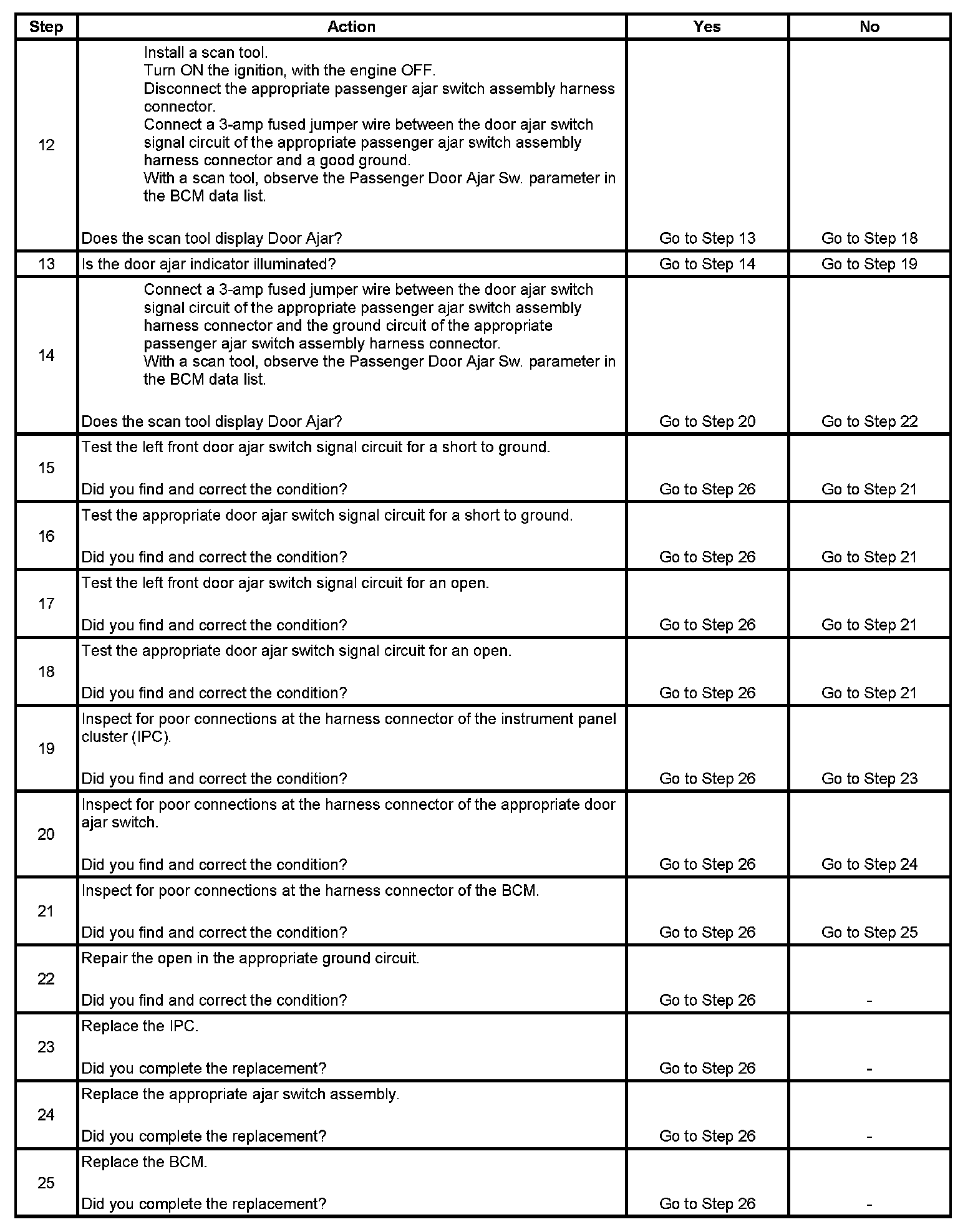

Step 12 - Step 25:

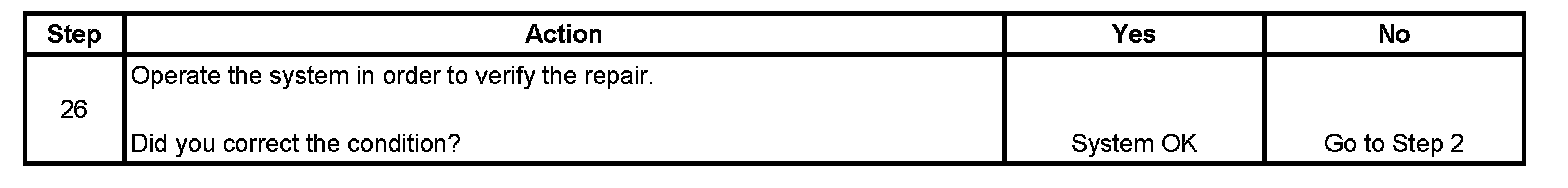

Step 26:
