Rear Bumper: Service and Repair

Rear Bumper Extension Replacement

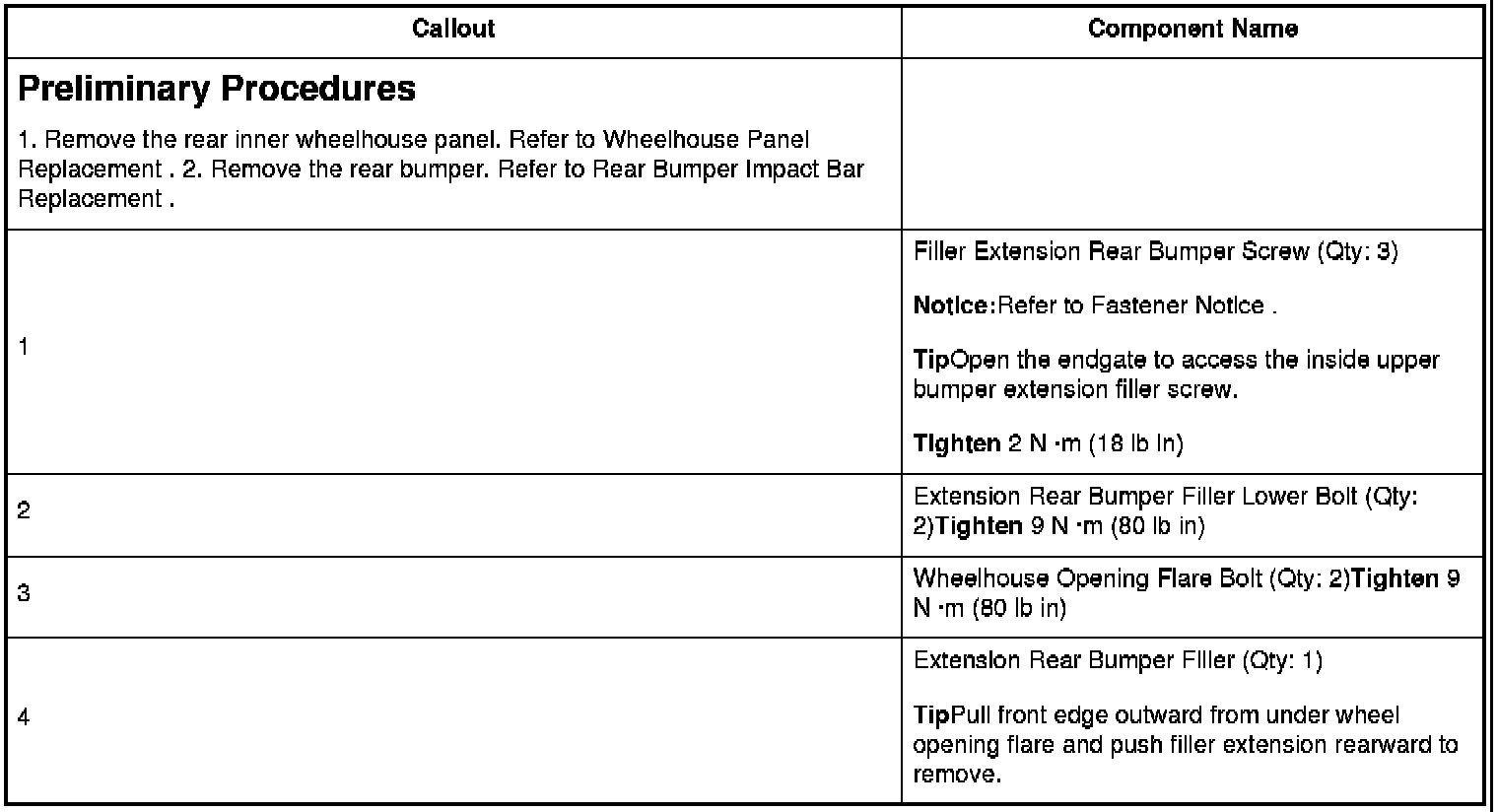

Preliminary Procedures

Notice:Refer to.

TipOpen the endgate to access the inside upper bumper extension filler screw.
TightenTightenTighten
TipPull front edge outward from under wheel opening flare and push filler extension rearward to remove.
