Electrical Diagrams

Body Control System Schematics

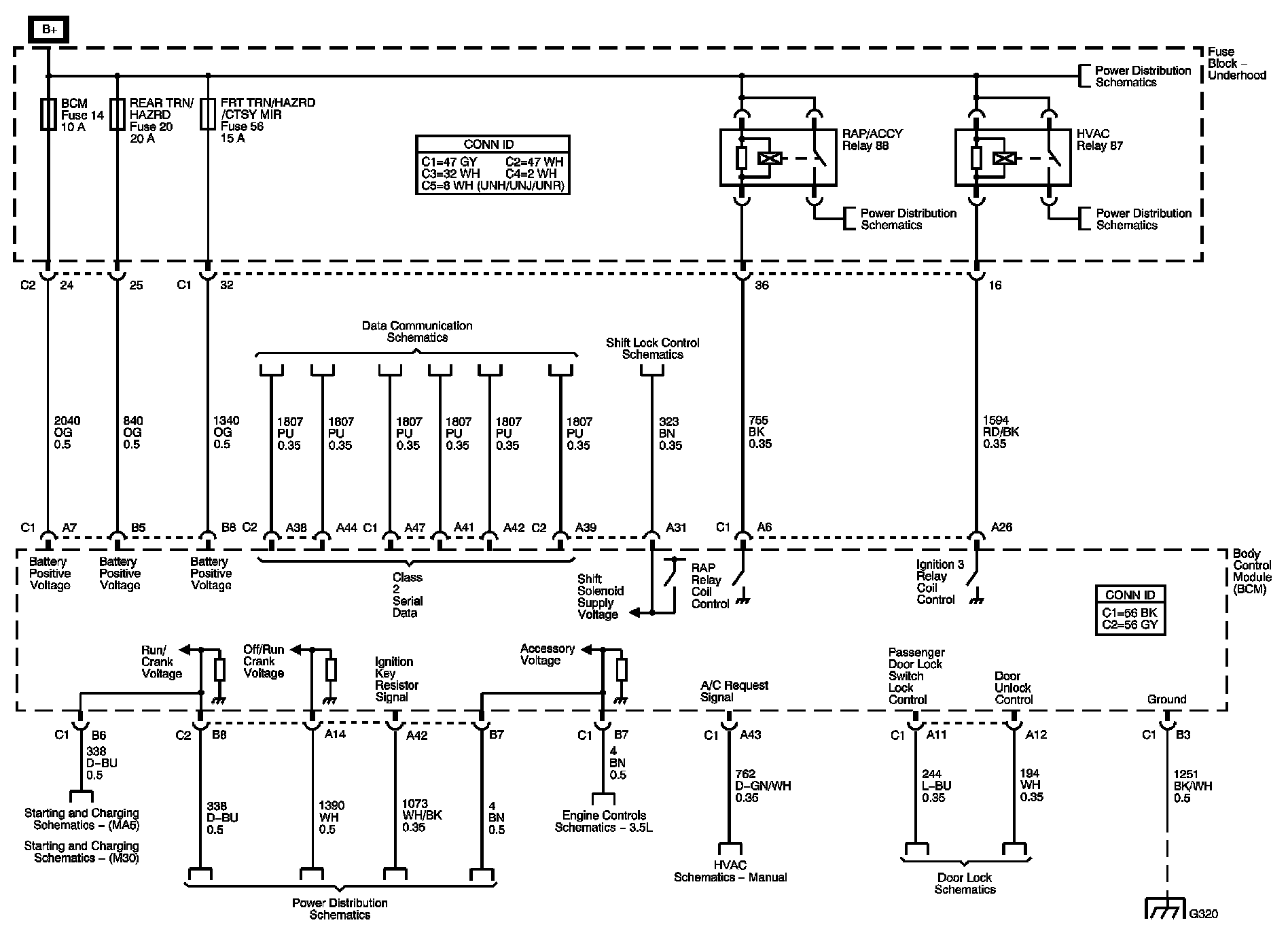

Power, Ground, and Subsystem References to DLC, A/T Shift Lock Control, HVAC, Starting and Charging, Engine Controls, and Door Lock/Indicator Systems

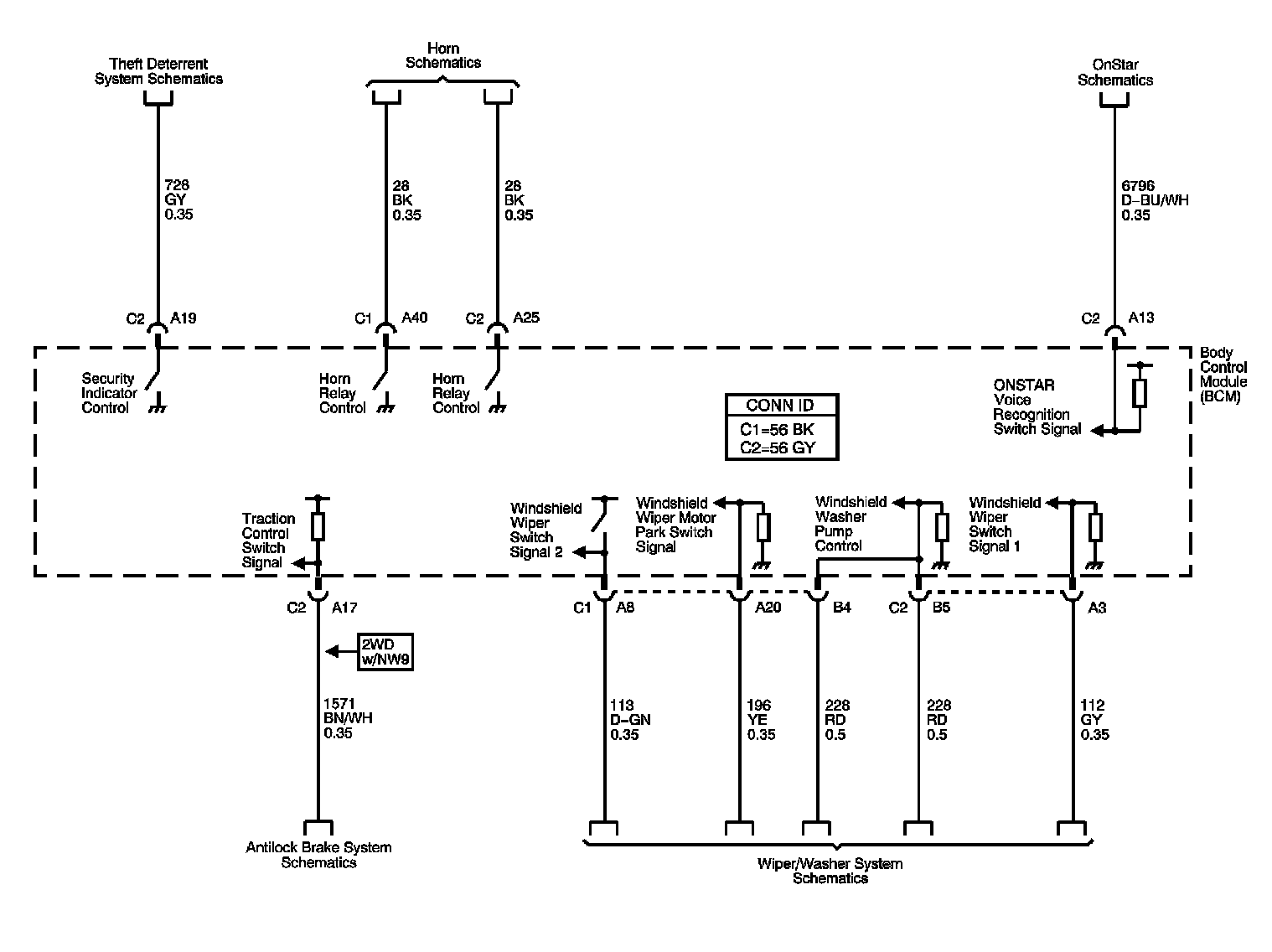

Subsystem References to ABS, Horn, Theft, and Wiper/Washer Systems

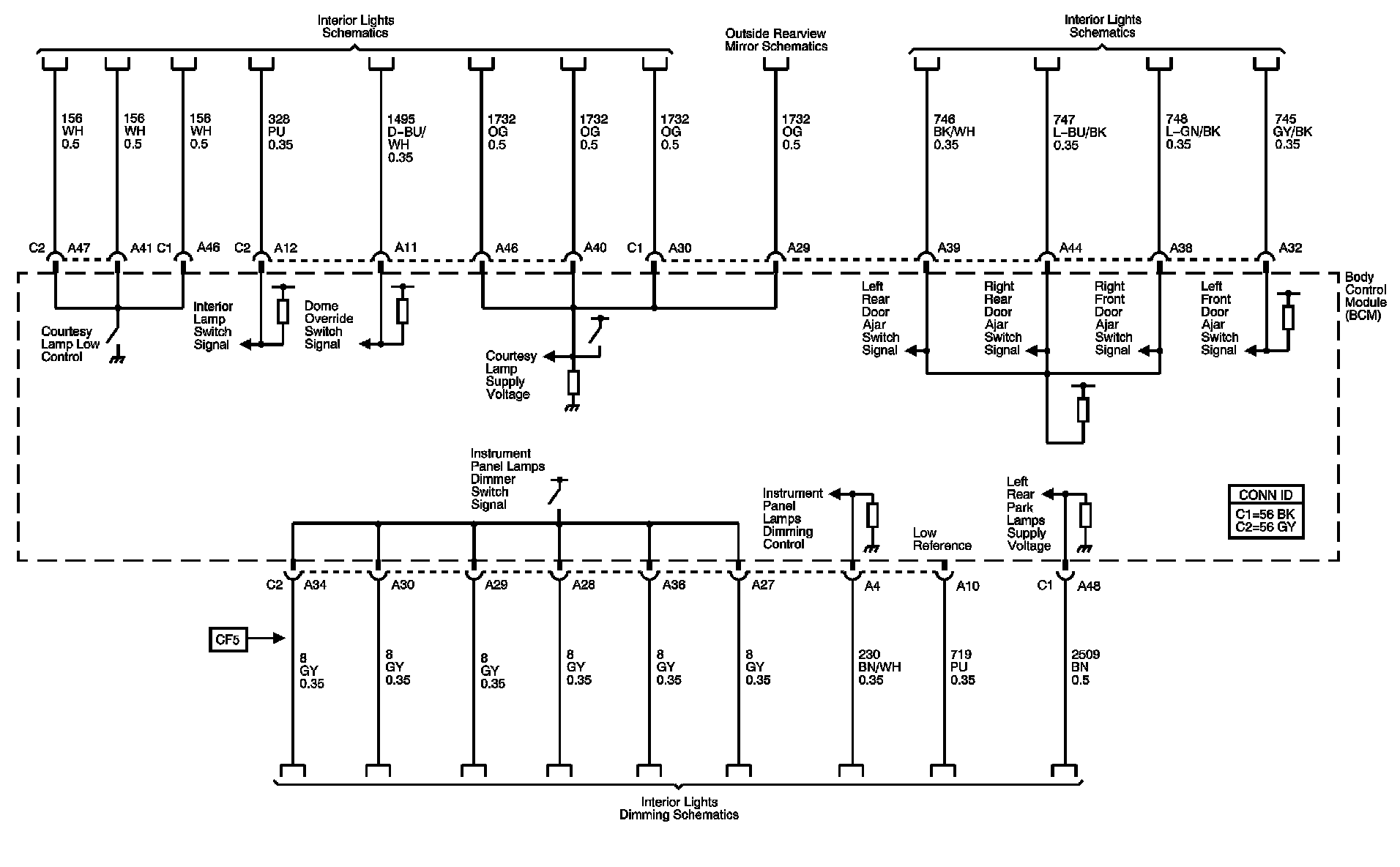

Subsystem References to Doors, Interior Lights and Interior Lights Dimming Systems

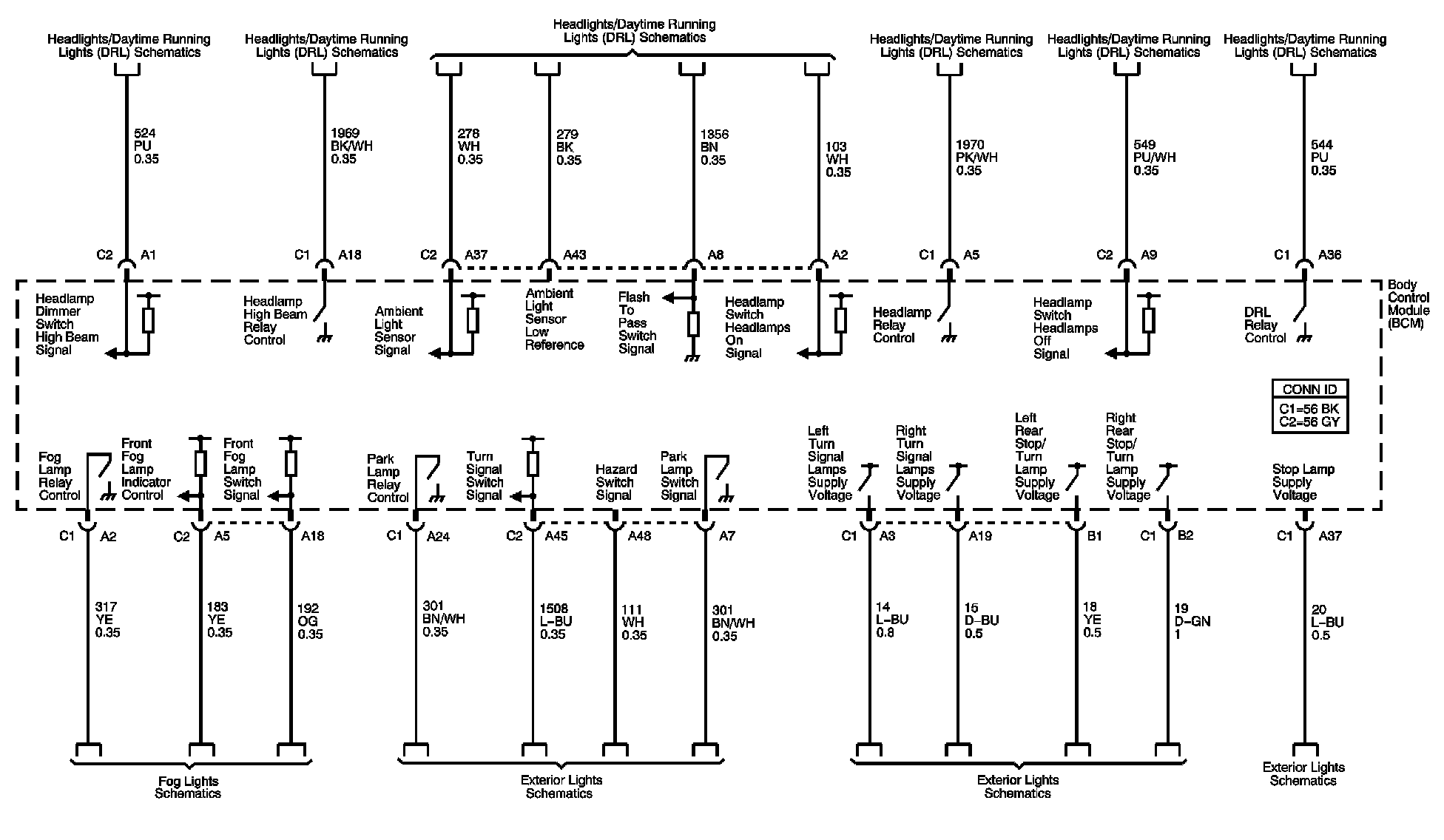

Subsystem References to Exterior Lighting and Fog Lights







Locations: The locations for the Connectors, Grounds, Splices, and Grommets shown within these diagrams can be found via their numbers at Vehicle Locations. Locations
