Radio Replacement

Radio Replacement

Removal Procedure

1. Remove the accessory trim plate.

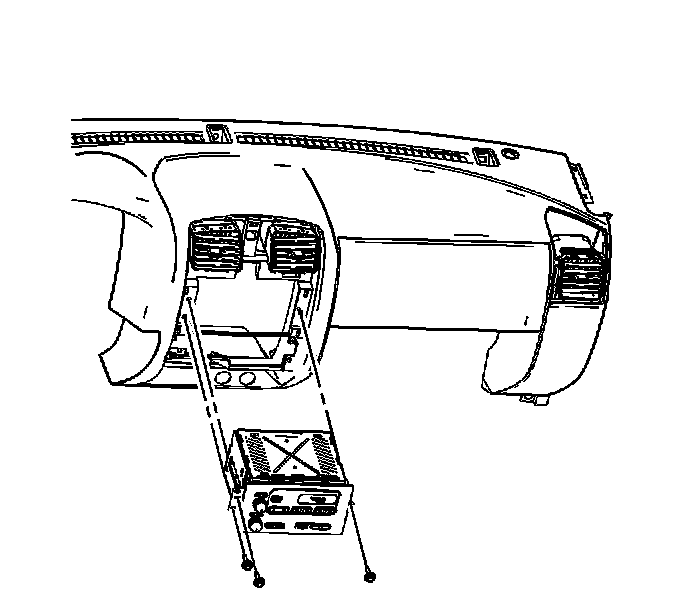

2. Remove the 4 screws that retain the radio to the instrument panel (I/P).

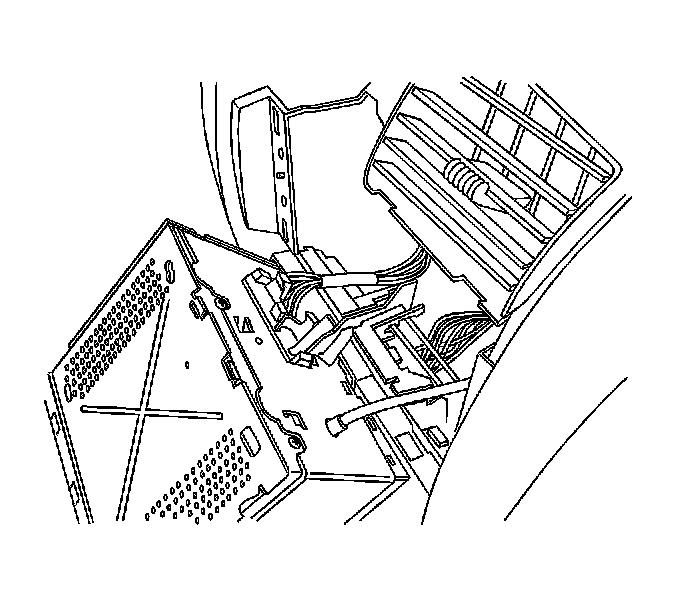

3. Partially remove the radio disengaging the radio rear alignment locator to gain access to the electrical connectors.




4. Disconnect the radio antenna cable.
5. Disconnect the electrical connectors to the radio.
6. Remove the radio from the vehicle.

Installation Procedure




1. Position the radio to the I/P.
2. Connect the electrical connectors to the radio.
3. Connect the radio antenna cable to the radio.
4. Position the radio rear alignment locator into the I/P substrate installing the radio to the I/P.






Notice: Refer to Fastener Notice.

5. Install the 4 screws that retain the radio to the I/P.

Tighten the screws to 2 N.m (18 lb in).

6. Install the accessory trim plate.
7. Program the radio after replacement. Refer to Refer to Programing and Relearning . Programming and Relearning
