Antitheft and Alarm Systems: Locations

Immobilizer Component Views

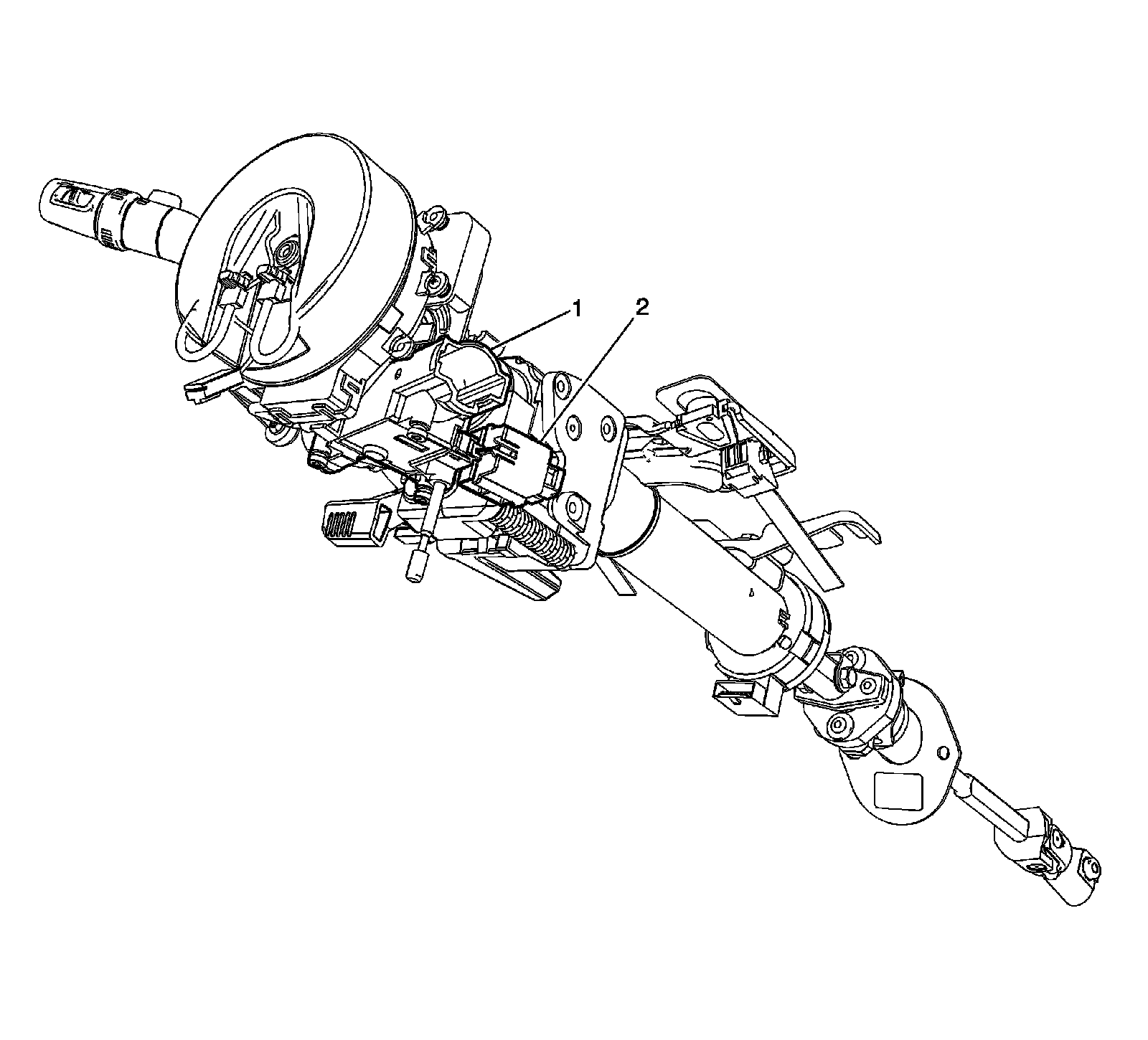

Steering Column Components

1 - Ignition Switch
2 - Ignition Lock Cylinder Control Actuator (M30)
