P2769
DTC P2769
Circuit Description
The torque converter clutch (TCC) solenoid valve is an electrical device that is used with the torque converter clutch pulse width modulation (TCC PWM) solenoid valve in order to control TCC apply and release. The TCC solenoid valve attaches to the transmission case assembly extending into the pump cover. The TCC solenoid valve receives ignition voltage through the ignition voltage circuit. The powertrain control module (PCM) controls the solenoid by providing the ground path on the TCC solenoid valve control circuit. The PCM monitors the throttle position sensor voltage, the vehicle speed, and other inputs in order to determine when to energize the TCC solenoid valve.
When the PCM detects a continuous open or short to ground in the TCC solenoid valve circuit, then DTC P2769 sets. DTC P2769 is a type B DTC.
DTC Descriptor
This diagnostic procedure supports the following DTC:
DTC P2769 Torque Converter Clutch (TCC) Enable Solenoid Control Circuit Low Voltage
Conditions for Running the DTC
* The engine speed is greater than 475 RPM for 5 seconds.
* The engine is not in fuel cutoff.
Conditions for Setting the DTC
DTC P2769 sets if the following condition occurs for 5 seconds:
The PCM commands the solenoid OFF and the voltage feedback remains low, 0 volt.
Action Taken When the DTC Sets
* The PCM illuminates the malfunction indicator lamp (MIL) during the second consecutive trip in which the Conditions for Setting the DTC are met.
* The PCM commands maximum line pressure.
* The PCM inhibits TCC engagement.
* The PCM inhibits 4th gear if the transmission is in hot mode.
* The PCM freezes transmission adapt functions.
* The PCM records the operating conditions when the Conditions for Setting the DTC are met. The PCM stores this information as Freeze Frame and Failure Records.
* The PCM stores DTC P2769 in PCM history during the second consecutive trip in which the Conditions for Setting the DTC are met.
Conditions for Clearing the MIL/DTC
* The PCM turns OFF the MIL during the third consecutive trip in which the diagnostic test runs and passes.
* A scan tool can clear the MIL/DTC.
* The PCM clears the DTC from PCM history if the vehicle completes 40 warm-up cycles without an emission-related diagnostic fault occurring.
* The PCM cancels the DTC default actions when the ignition switch is OFF long enough in order to power down the PCM.
Diagnostic Aids
With the TCC engaged, the TCC slip speed should be -20 to +50 RPM.
Test Description

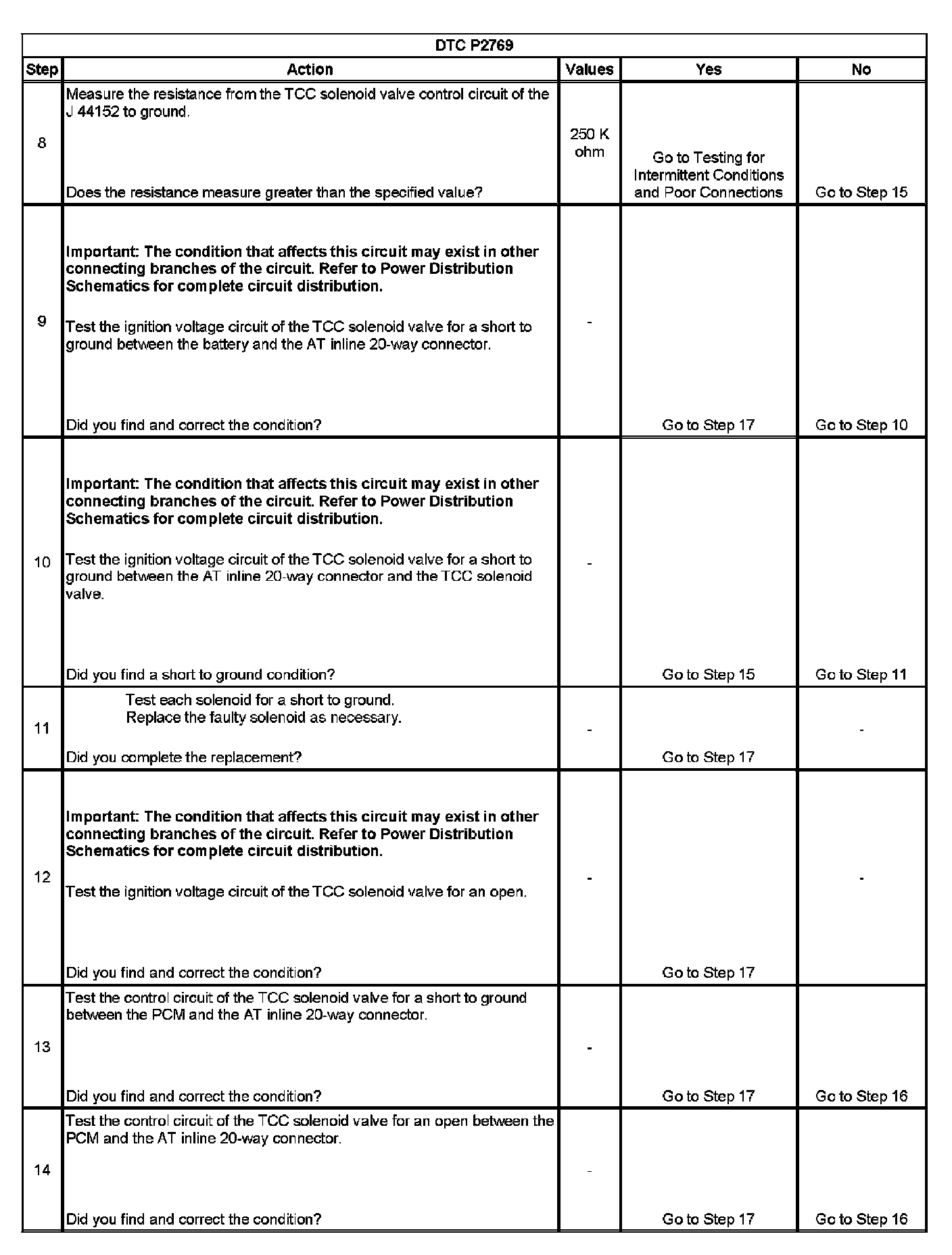

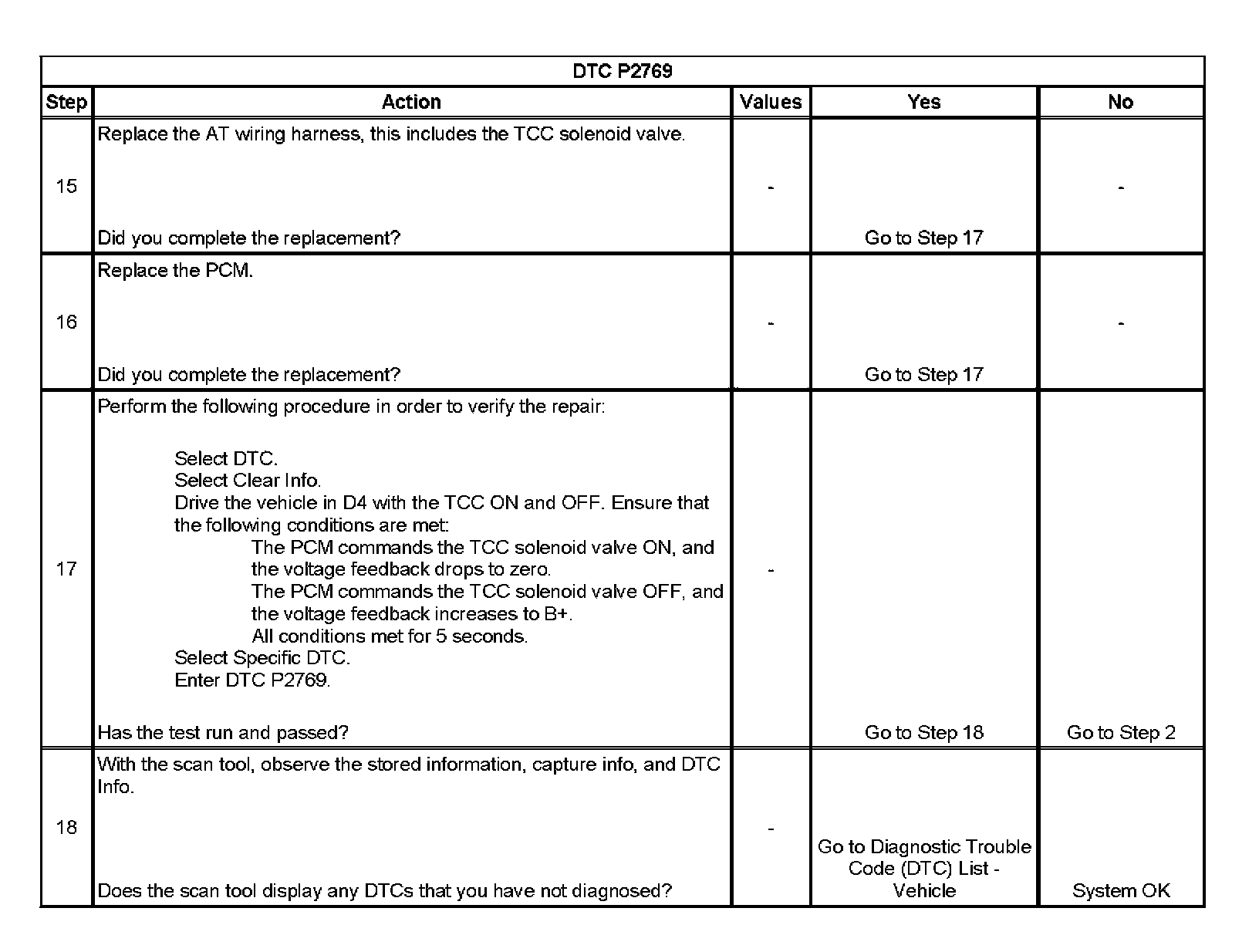

The numbers below refer to the step numbers on the diagnostic table.
4. This step tests for voltage to the solenoid.
5. This step tests the ability of the PCM and wiring to control the ground circuit.
7. This step tests the resistance of the TCC solenoid valve and the automatic transmission (AT) wiring harness.
