P1682



DTC P1682

Circuit Description

The throttle actuator control (TAC) system uses an ignition voltage supply separate from the powertrain control module (PCM) supply. If the PCM detects a voltage difference between the 2 circuits, this DTC sets.

DTC Descriptor

This diagnostic procedure supports the following DTC:

DTC P1682 Ignition 1 Switch Circuit 2

Conditions for Running the DTC

The ignition is ON.

Conditions for Setting the DTC

* The TAC voltage is not in range.
* The above condition exists for more than 10 seconds.

Action Taken When the DTC Sets

* The control module stores the DTC information into memory when the diagnostic runs and fails.
* The malfunction indicator lamp (MIL) will not illuminate.
* The control module records the operating conditions at the time the diagnostic fails. The control module stores this information in the Failure Records.
* The driver information center, if equipped, may display a message.

Conditions for Clearing the DTC

* A current DTC Last Test Failed clears when the diagnostic runs and passes.
* A history DTC clears after 40 consecutive warm-up cycles, if no failures are reported by this or any other non-emission related diagnostic.
* Clear the DTC with a scan tool.

Test

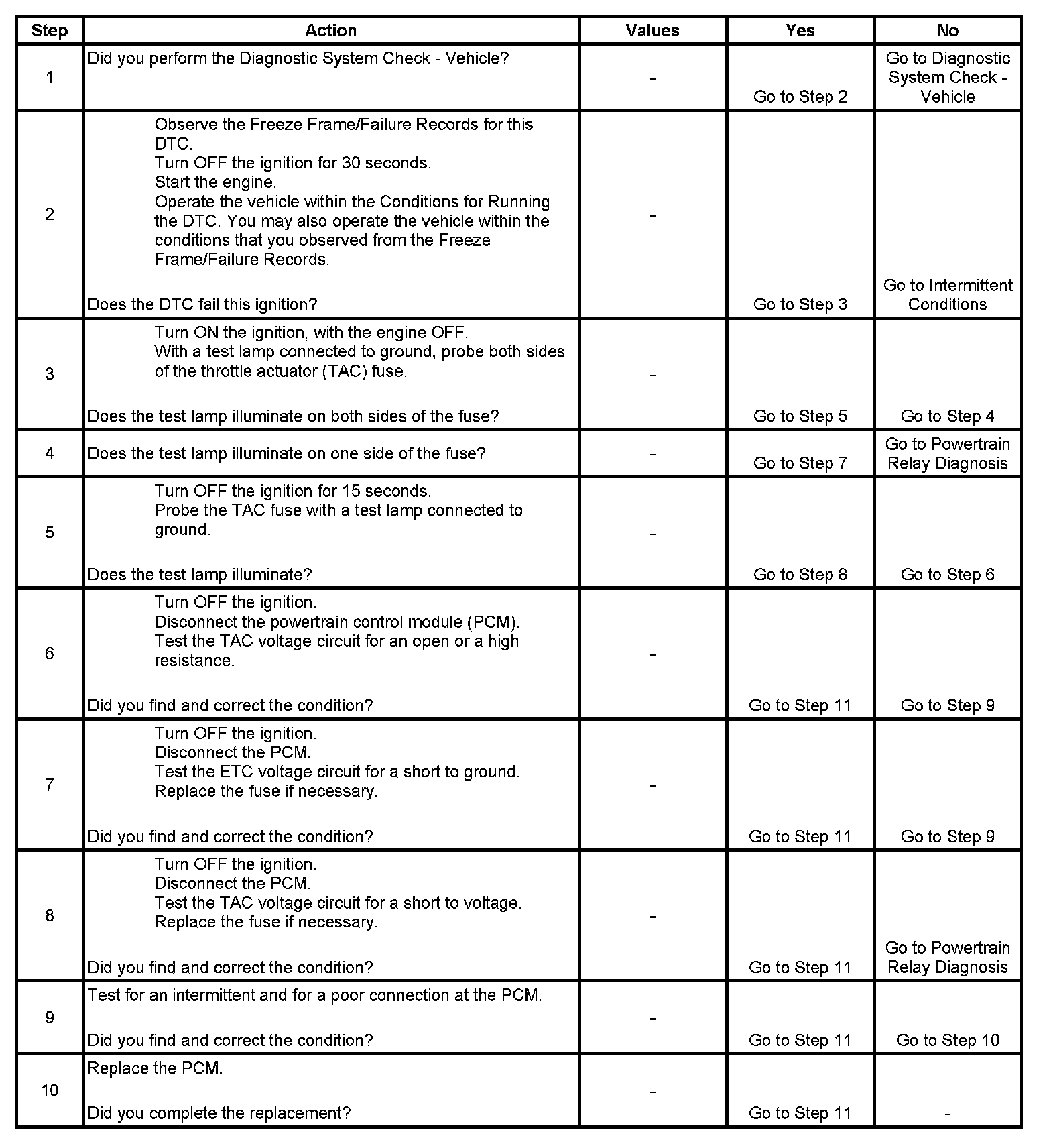

Step 1 - Step 10:

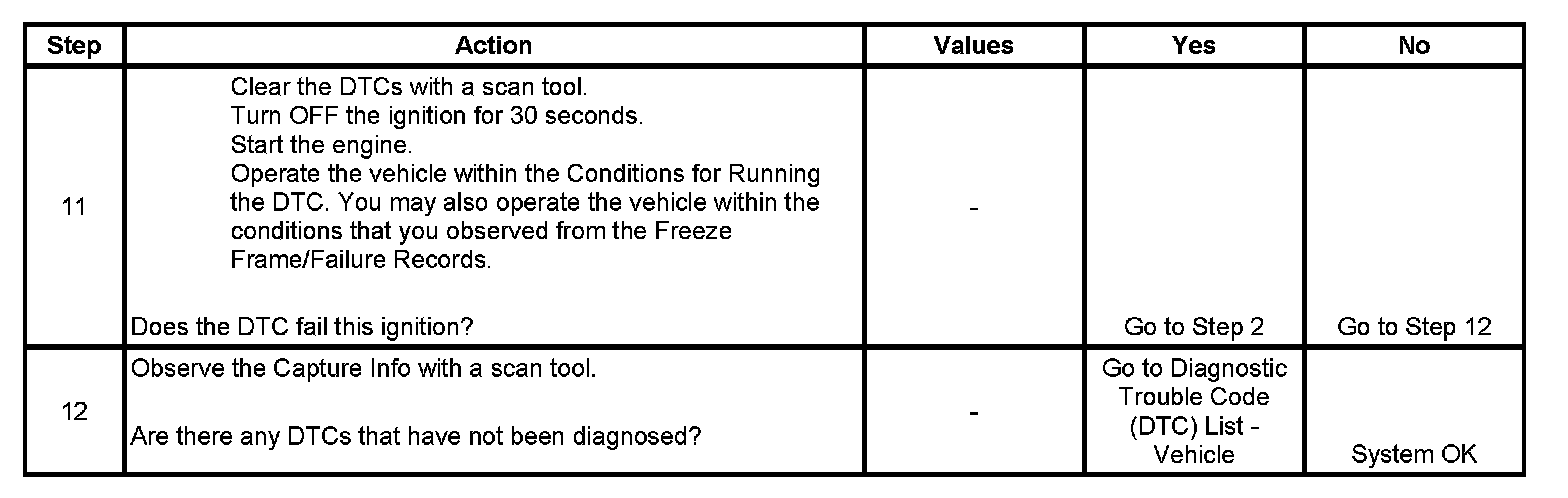

Step 11 - Step 12:
