P1106

DTC P1106

Circuit Description

The manifold absolute pressure (MAP) sensor measures the pressure inside the intake manifold. Pressure in the intake manifold is affected by engine speed, throttle opening, air temperature, and barometric pressure (BARO). A diaphragm within the MAP sensor is displaced by the pressure changes that occur from the varying load and operating conditions of the engine. The sensor translates this action into electrical resistance. The MAP sensor wiring includes 3 circuits. The powertrain control module (PCM) supplies a regulated 5 volts to the sensor on a 5-volt reference circuit. The PCM supplies a ground on a low reference circuit. The MAP sensor provides a signal voltage to the PCM, relative to the pressure changes, on the MAP sensor signal circuit. The PCM converts the signal voltage input to a pressure value.

Under normal operation the highest pressure that can exist in the intake manifold is equal to BARO. This occurs when the vehicle is operated at wide-open throttle (WOT) or when the ignition is ON while the engine is OFF. Under these conditions, the PCM uses the MAP sensor to determine the current BARO. The lowest manifold pressures occur when the vehicle is idling or decelerating. MAP can range from 10 kPa, when pressures are low, to as much as 104 kPa when pressures are high, depending on the BARO. The PCM monitors the MAP sensor signal for pressure outside of the normal range. If the PCM detects that the MAP sensor pressure is excessively high, DTC P1106 sets.

DTC Descriptor

This diagnostic procedure supports the following DTC:

DTC P1106 Manifold Absolute Pressure (MAP) Sensor Circuit Intermittent High Voltage

Conditions for Running the DTC

* DTCs P0068, P0120, P0121, P0220, P0641, P0651, P1516, P1680, P1681, P2101, P2120, P2125, P2135, P2138, P2176 are not set.
* The engine has been running for a period of time that is determined by the start-up coolant temperature. The time ranges from 8 seconds at less than -30°C (-22°F) to 3 seconds at more than +30°C (+86°F).
* The throttle angle is less than 90 percent when the engine speed is less than 1,000 RPM.
Or
* The throttle angle is less than 98 percent when the engine speed is more than 1,000 RPM.
* DTC P1106 runs continuously when the above conditions are met.

Conditions for Setting the DTC

The PCM detects that the MAP sensor pressure is more than 102 kPa intermittently for more than 30 seconds.

Action Taken When the DTC Sets

* The control module stores the DTC information into memory when the diagnostic runs and fails.
* The malfunction indicator lamp (MIL) will not illuminate.
* The control module records the operating conditions at the time the diagnostic fails. The control module stores this information in the Failure Records.
* The driver information center, if equipped, may display a message.

Conditions for Clearing the DTC

* A current DTC Last Test Failed clears when the diagnostic runs and passes.
* A history DTC clears after 40 consecutive warm-up cycles, if no failures are reported by this or any other non-emission related diagnostic.
* Clear the DTC with a scan tool.

Test Description

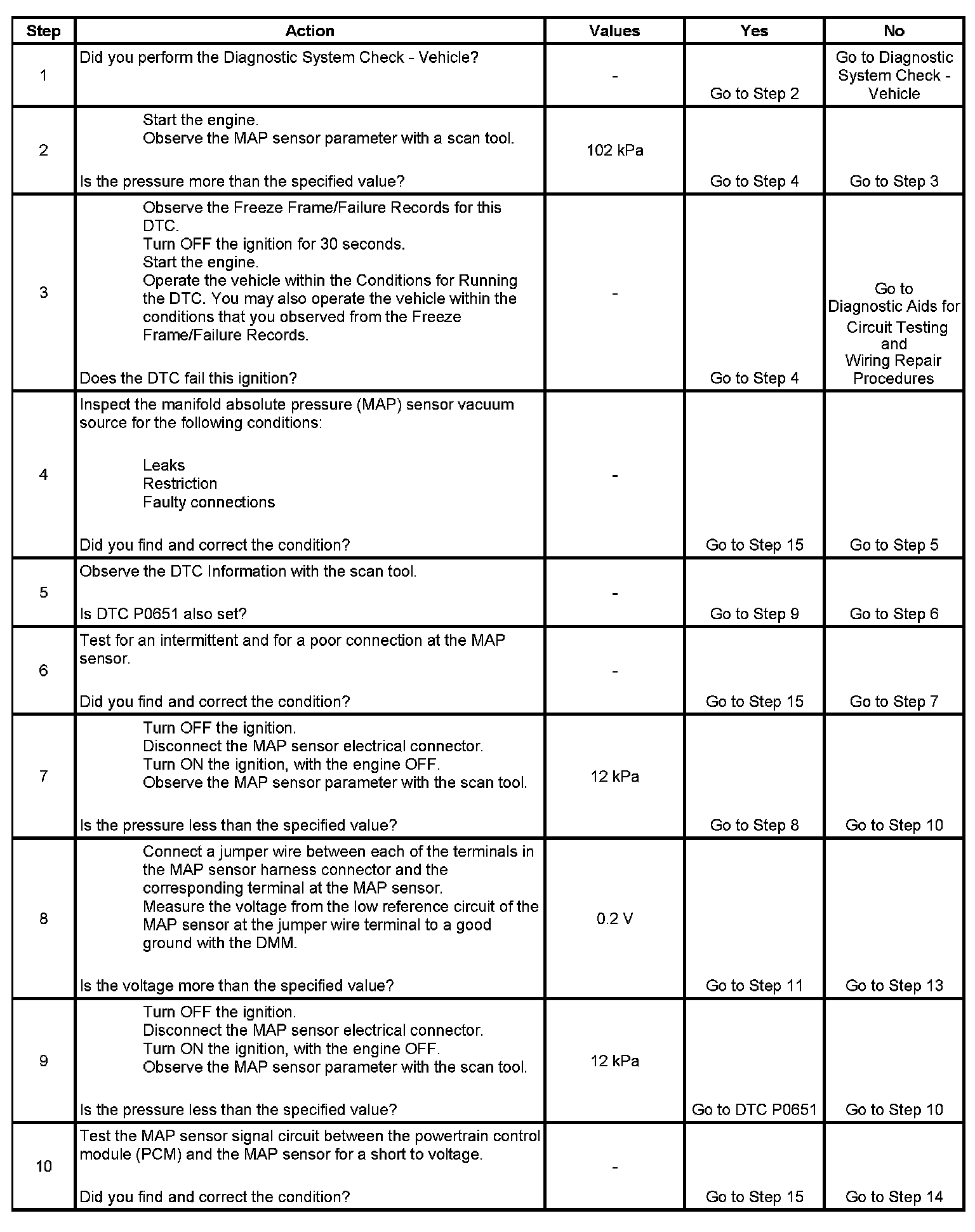

Step 1 - Step 10:

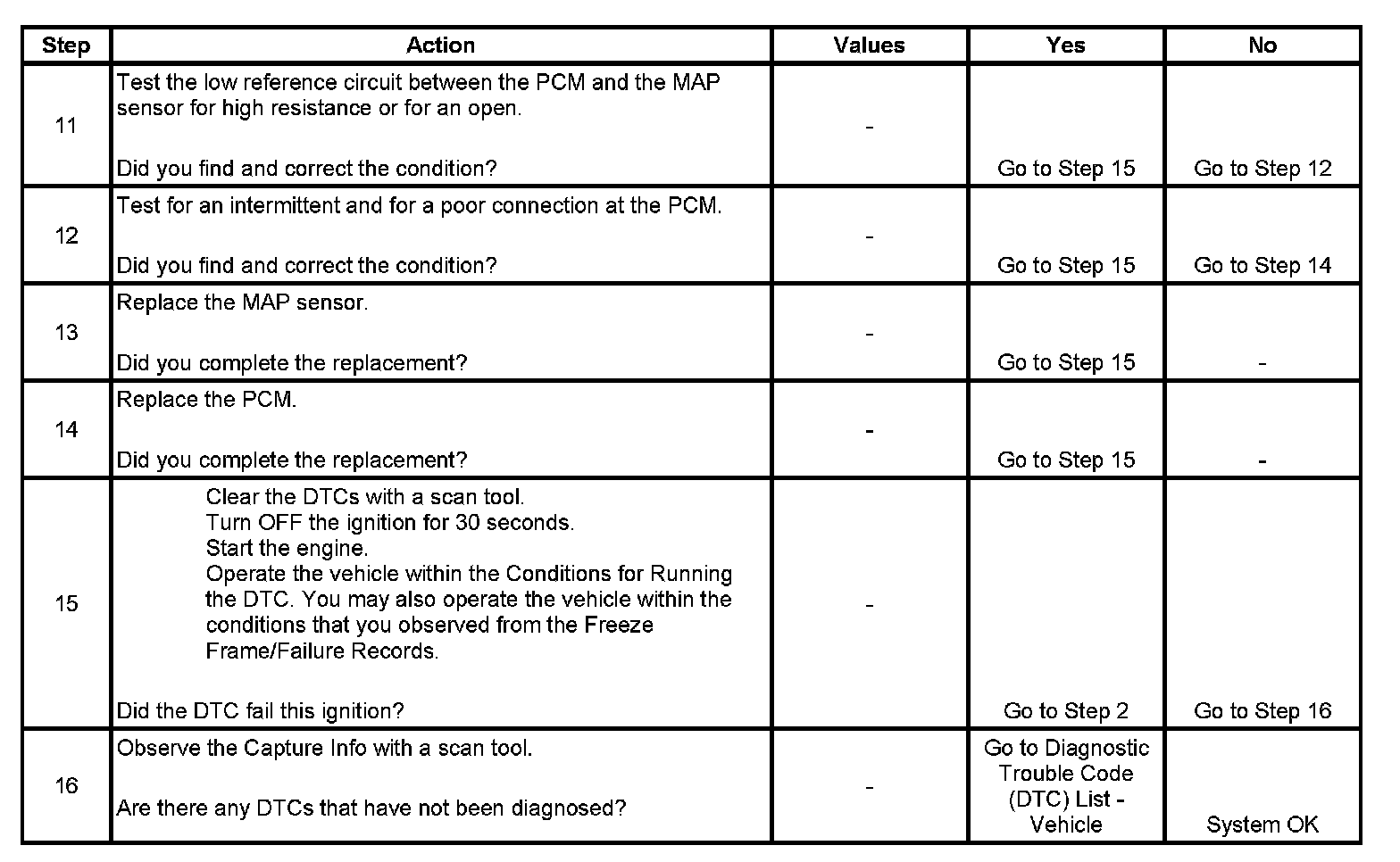

Step 11 - Step 16:

The number below refers to the step number on the diagnostic table.
8. This step tests the ground path, from the sensor through the controller, for an open or excessive resistance.
