P0564
DTC P0564
Circuit Description
The cruise control switch is an input to the powertrain control module (PCM). The PCM monitors the cruise control set/coast and resume/accelerate switch signal circuit in order to detect when a cruise control function has been requested. The PCM detects a specific voltage signal on the cruise control set/coast and resume/accelerate switch signal circuit when a cruise control function switch is activated, with each switch having a different predetermined voltage value.
DTC Descriptor
This diagnostic procedure supports the following DTC:
DTC P0564 Cruise Control Multi-Function Switch Circuit
Conditions for Running the DTC
* The ignition is ON.
* The cruise control on/off switch is ON.
Conditions for Setting the DTC
This DTC sets when the PCM detects an invalid voltage signal on the cruise control set/coast and resume/accelerate switch signal circuit for greater than 1.5 seconds.
The PCM runs this diagnostic every 0.05 seconds.
Action Taken When the DTC Sets
* The PCM stores the DTC information into memory when the diagnostic runs and fails.
* The malfunction indicator lamp (MIL) will not illuminate.
* The PCM records the operating conditions at the time the diagnostic fails. The PCM stores this information in the Failure Records.
* The Cruise Control System is disabled.
Conditions for Clearing the DTC
* A last test failed, or the current DTC, clears when the diagnostic runs and does not fail.
* A history DTC clears after 40 consecutive warm-up cycles, if failures are not reported by this or any other emission related diagnostic.
* Use a scan tool in order to clear the DTC.
Diagnostic Aids
For an intermittent condition, refer to Testing for Intermittent Conditions and Poor Connections in Diagnostic Aids. Component Tests and General Diagnostics

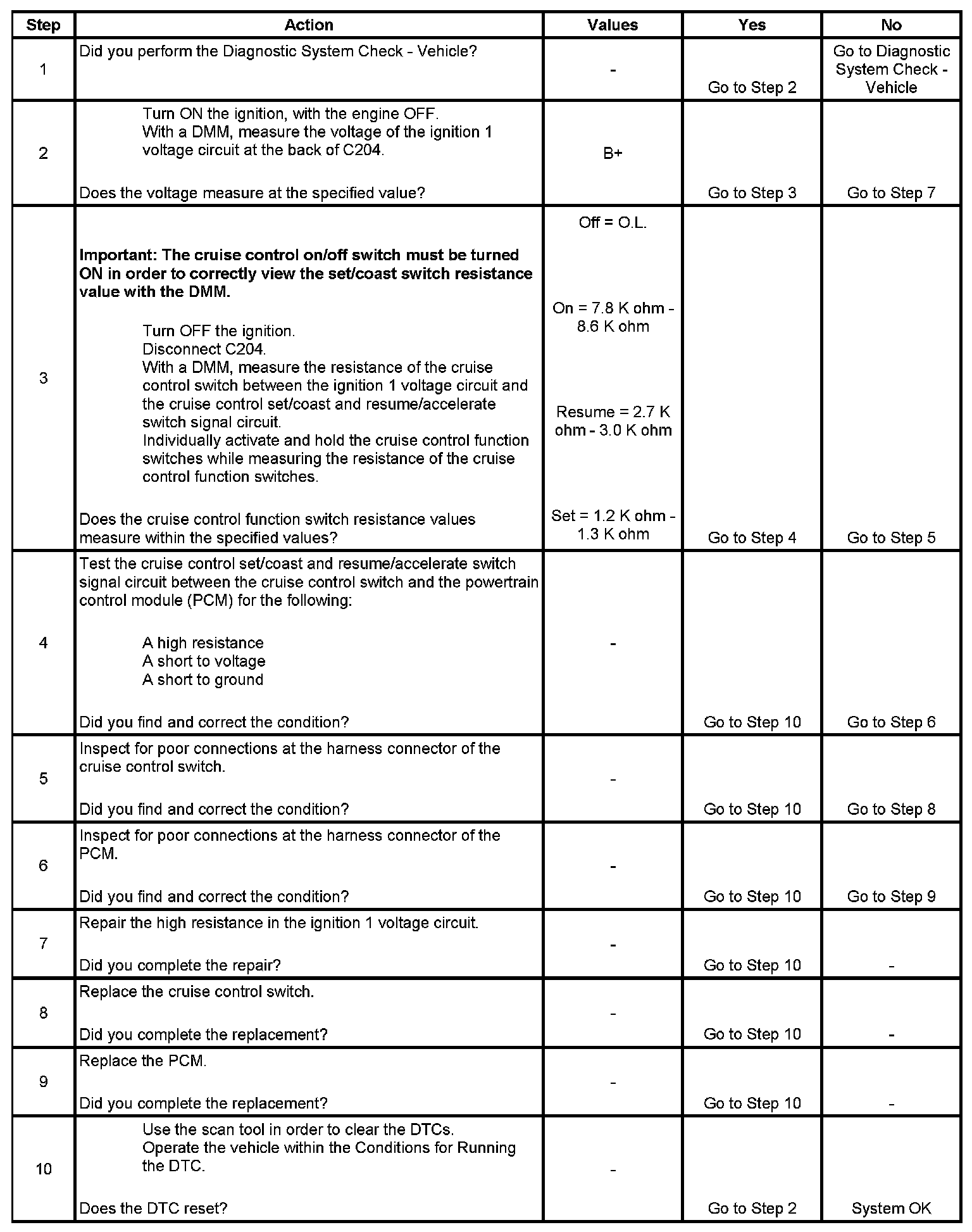

Test
