B2582

DTC B2582 or B2583

Circuit Description

When the body control module (BCM) receives a ground signal from the multifunction high beam or flash to pass (FTP) switch commanding to illuminate the high beam headlamps, the BCM will energize the high beam relay by grounding the high beam relay control circuit.

DTC Descriptors

This diagnostic procedure supports the following DTCs:

* DTC B2582 Headlamp High Beam Control Circuit Low
* DTC B2583 Headlamp High Beam Control Circuit High

Conditions for Running the DTC

The battery voltage must be between 9-16 volts.

Conditions for Setting the DTC

* When the BCM receives a high beam headlamp OFF command and the high beam headlamp relay control circuit is shorted to ground
* When the BCM receives a high beam headlamp ON command and the high beam headlamp relay control circuit is shorted to voltage or open

Action Taken When the DTC Sets

The high beam headlamps will not operate or will remain always ON.

Conditions for Clearing the MIL/DTC

* This DTC will clear on current status after the condition for setting the fault is corrected.
* A history DTC will clear after 100 consecutive ignition cycles without a fault present.
* History and current DTCs can be cleared using a scan tool.

Test Description

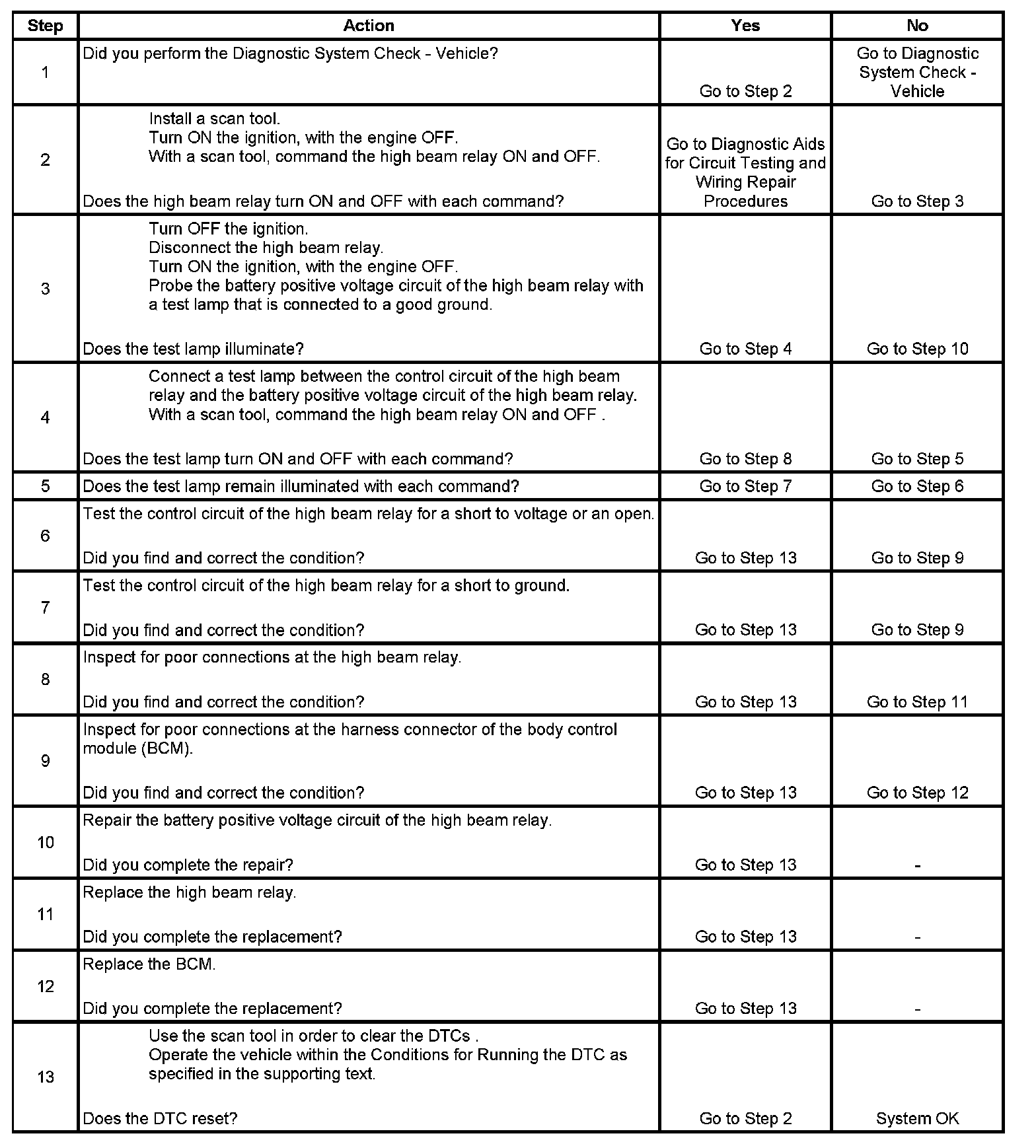

Step 1 - Step 13:

The numbers below refer to the step numbers on the diagnostic table.
2. Listen for an audible click when the high beam relay operates. Command both the ON and OFF states. Repeat the commands as necessary.
3. This step tests for voltage at the coil side of the high beam relay.
4. This step verifies that the BCM is providing ground to the high beam relay.
5. This step tests if ground is constantly being applied to the high beam relay.
6. This step tests if there is opposing voltage present or an open high beam relay control circuit.
12. After replacement of the BCM, you must calibrate the new module for proper operation.
