B2575

DTC B2575

Circuit Description

When the body control module (BCM) senses a request for headlamp or daytime running lamp (DRL) illumination, the BCM sends a ground signal to the headlamp relay through the low beam headlamp relay control circuit. The headlamp relay will illuminate the low beam headlamps.

DTC Descriptor

This diagnostic procedure supports the following DTC:

DTC B2575 Headlamp Control Circuit

Conditions for Running the DTC

The battery voltage must be between 9-16 volts.

Conditions for Setting the DTC

* When the BCM receives a command to illuminate the headlamps and the headlamp low beam relay control circuit is open or shorted to voltage
* When the BCM does not receive a command to illuminate the headlamps and the headlamp low beam relay control circuit is shorted to ground

Action Taken When the DTC Sets

The headlamps will not operate or will remain always ON.

Conditions for Clearing the MIL/DTC

* This DTC will clear on current status after the condition for setting the fault is corrected.
* A history DTC will clear after 100 consecutive ignition cycles without a fault present.
* History and current DTCs can be cleared using a scan tool.

Test Description

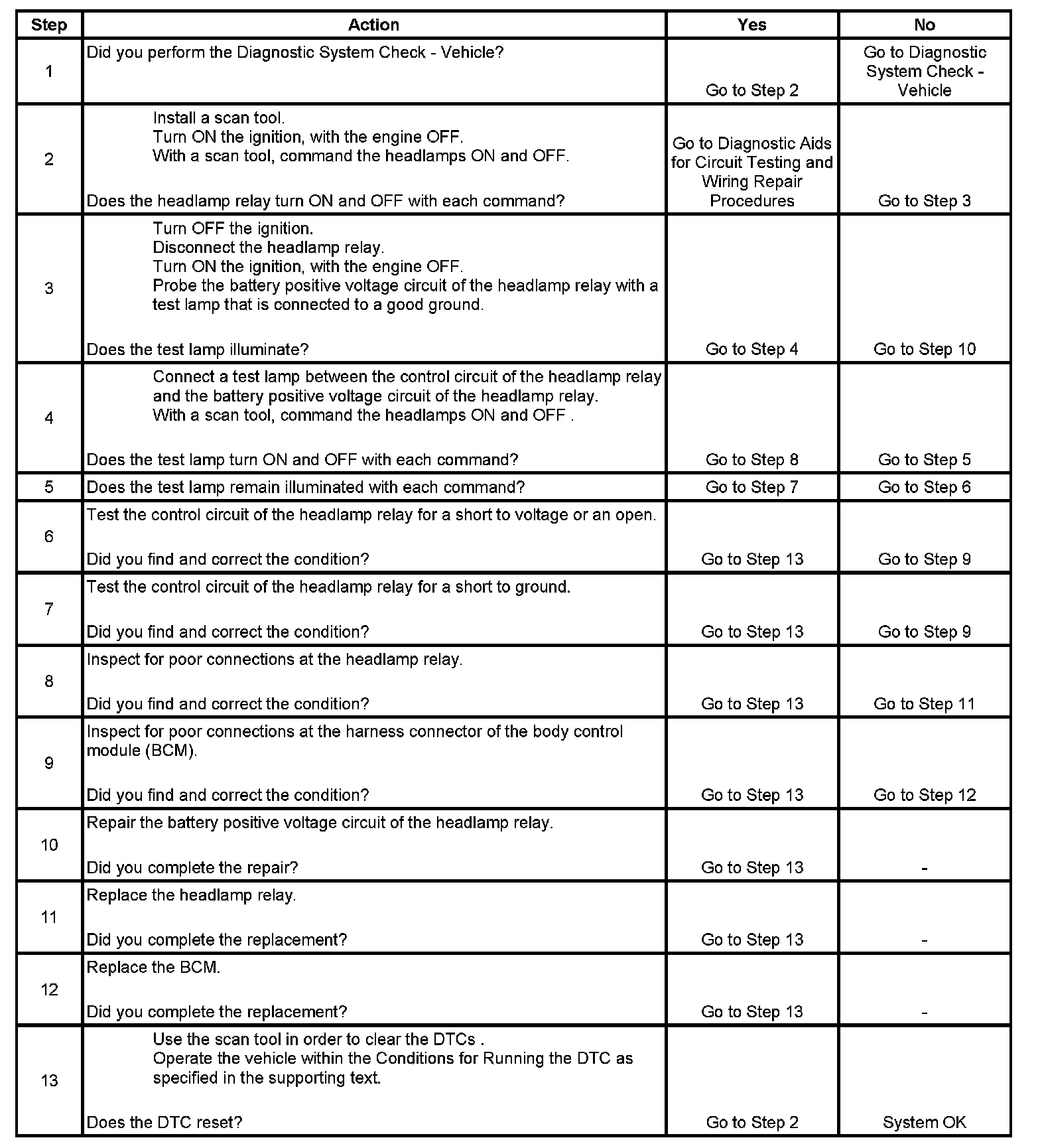

Step 1 - Step 13:

The numbers below refer to the step numbers on the diagnostic table.
3. This step tests for voltage at the voltage supply side of the headlamp relay.
4. This step verifies that the BCM is providing ground to the headlamp relay.
5. This step tests if ground is constantly being applied to the headlamp relay.
6. This step tests if there is opposing voltage present or an open low beam headlamp relay control circuit.
12. After replacement of the BCM, you must calibrate the new module for proper operation.
