B1487
DTC B1487
Circuit Description
The generator battery control module controls the generator through the generator field control circuit. The signal is a 5-volt pulse width modulation (PWM) signal of 128 hz with a duty cycle of 0-100 percent. Normal duty cycle is between 5-95 percent. If the generator field control circuit is in the 0-5 percent range, pulled low to ground or open then DTC B1487 will set.
DTC Descriptor
This diagnostic procedure supports the following DTC:
DTC B1487 Generator L-Terminal Circuit Low
Conditions for Running the DTC
* The engine speed is greater than 450 RPM.
* This diagnostic shall be run every 100 ms.
Conditions for Setting the DTC
The generator field control circuit is less than or equal to 5 percent duty cycle for more than 120 seconds.
Action Taken When the DTC Sets
The generator battery control module will request the driver information center (DIC) message of Charging System Failure and commands ON the Battery indicator.
Conditions for Clearing the DTC
* The generator field control circuit input is from 1-99 percent duty cycle, greater than 0 volts.
* Clear the DTC with a scan tool.
Diagnostic Aids
Important: You must cycle the ignition after clearing the DTC to turn OFF the DIC message of Service Charging System.
Recommended Action:
* Correct L-Term short low condition
* Clear the codes.
* Cycle the ignition.
Important: You must cycle the ignition after clearing the DTC to turn OFF the DIC message of Charging System Failure and turn OFF the battery indicator.
If a fault condition persists, replace the module.

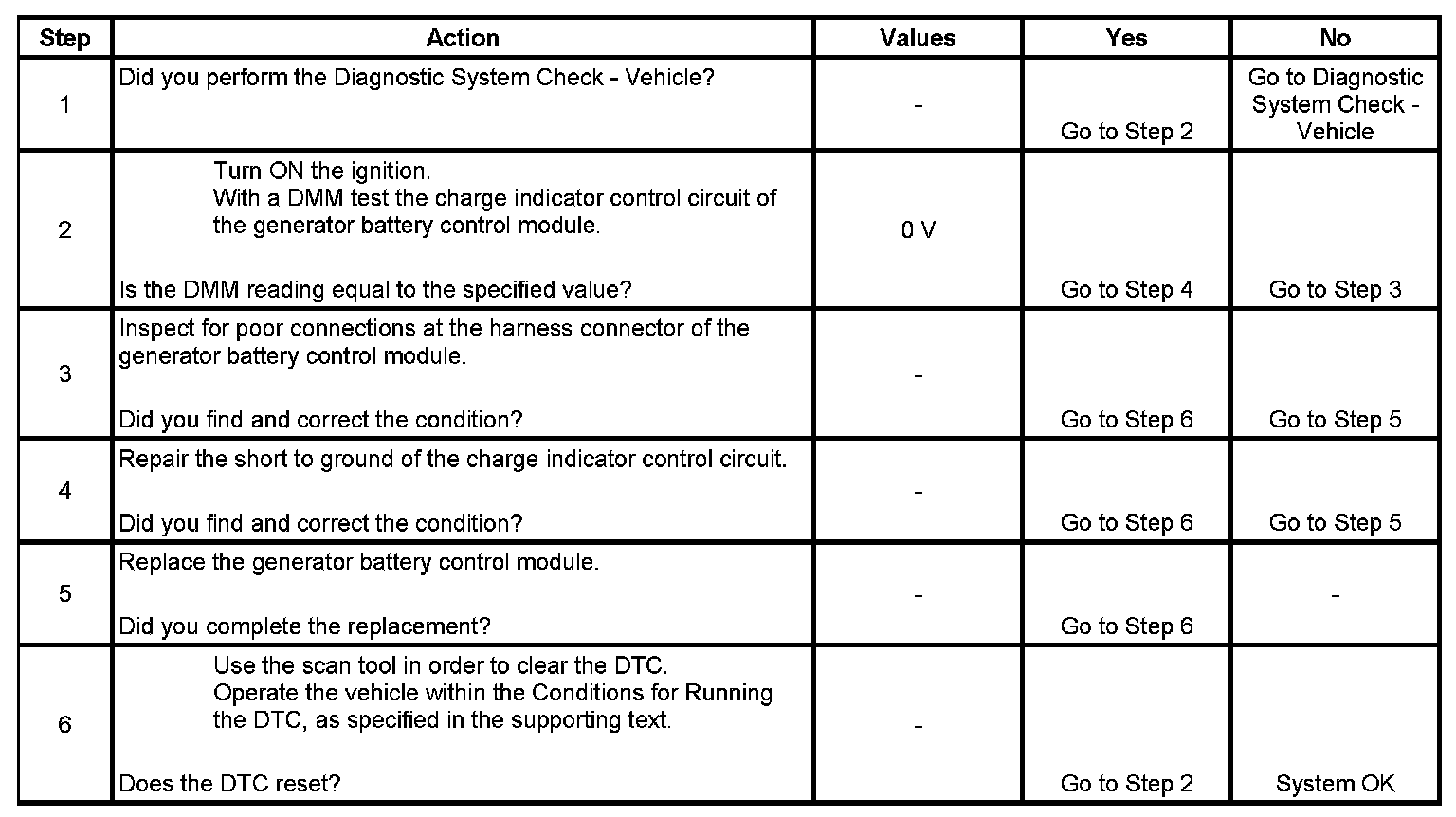

Test
