Rear Window Wiper Motor Replacement

Rear Window Wiper Motor Replacement

Removal Procedures

Important: Cycle the wiper one time to ensure it is in the parked position.

1. Remove the rear wiper arm.

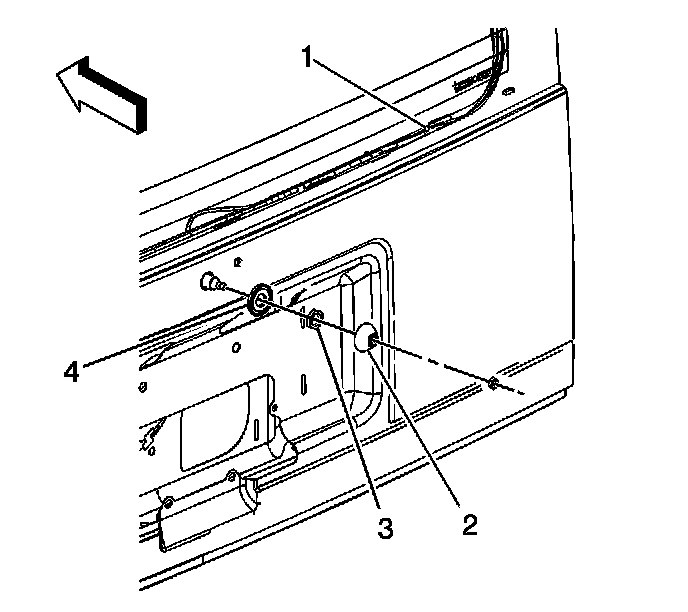

2. Remove beauty cover (2) by twisting counterclockwise.
3. Remove the rear wiper arm nut (3) and the weatherseal (4).
4. Open the liftgate.
5. Remove the liftgate trim panel.

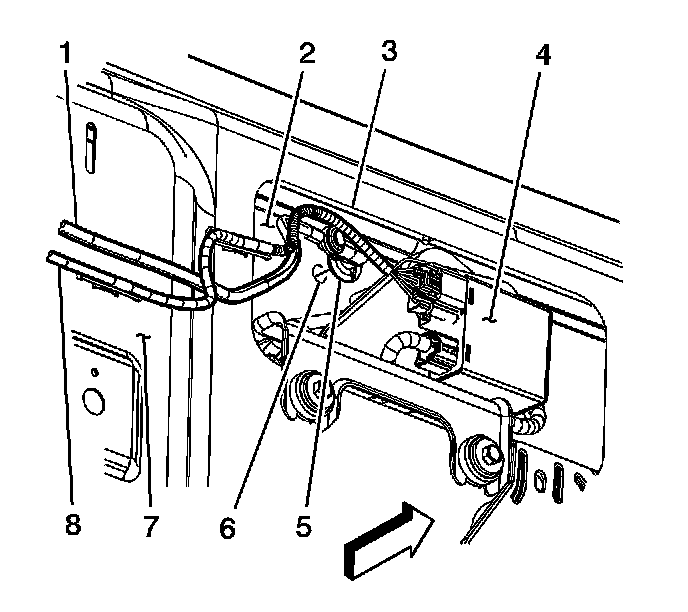

6. Disconnect the rear wiper motor electrical connectors from the liftgate (4).
7. Remove the rear wiper control module.
8. Remove the fasteners (1) retaining the wiper motor to the liftgate (2).
9. Remove the rear wiper motor from the liftgate.

Installation Procedure




1. Position the rear wiper motor (4) into place in the liftgate (2).
2. Install the fasteners retaining the wiper motor (4), but do not tighten.





Notice: Refer to Fastener Notice.

3. Install the weatherseal (4) and the rear wiper arm nut (3).

Tighten the rear wiper arm nut to 6 N.m (4 lb ft).

4. Tighten the rear wiper motor fasteners.

Tighten the rear wiper motor fasteners to 9 N.m (7 lb ft).

5. Connect rear wiper motor electrical connectors.
6. Install the rear wiper motor control module.
7. Install the liftgate trim panel.
8. Install the beauty cover (1).
9. Install the rear wiper arm.
