Rear Window Wiper Arm Replacement

Rear Window Wiper Arm Replacement

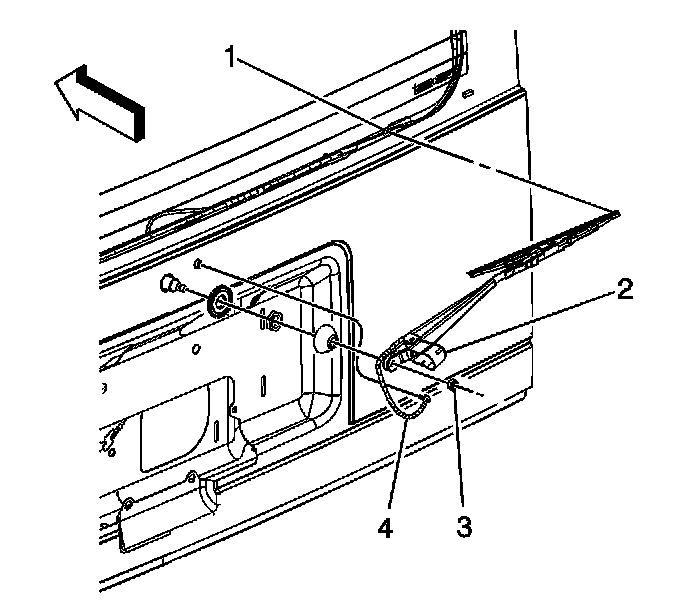

Removal Procedure

Important: Note the location of the wiper on the window before removal.




1. Disconnect the washer hose (4).
2. Swivel the wiper arm cover open (2).
3. Remove the nut (3) retaining the wiper arm to the wiper motor.
4. Remove the wiper arm from the liftgate.

Installation Procedure




1. Align the wiper arm to the vehicle by aligning the tip of the wiper to the locating mark (1) on the window.

Notice: Refer to Fastener Notice.

2. Install the nut retaining the wiper arm to the wiper motor.

Tighten the nut to 17 N.m (12.5 lb ft).

3. Swivel the wiper arm cover (2) closed.
4. Connect the washer hose (4).
5. Inspect the rear wiper for proper operation.
