Washer Hose Replacement - Headliner

Washer Hose Replacement - Headliner

Removal Procedure

1. Remove the headliner.

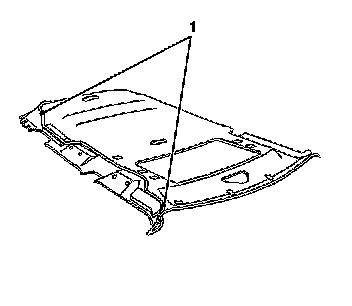

2. Cut off the ends of the original washer hose at the points called out (1).

Installation Procedure




1. Lay the new washer hose in place next to the original to ensure proper routing (1), and epoxy the new washer hose to the headliner and to the original washer hose.
2. Install the headliner.
