Windshield Side Reveal Molding Replacement

Windshield Side Reveal Molding Replacement

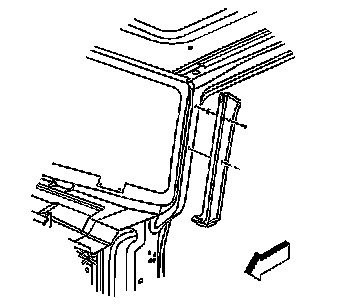

Removal Procedure




1. Pull back the front door sealing weatherstrip to expose the windshield reveal molding screws.
2. Remove the screws from the windshield reveal molding.
3. Remove the windshield reveal molding from the windshield pillar.

Installation Procedure

1. Install the windshield reveal molding to the windshield pillar.

Notice: Refer to Fastener Notice.




2. Install the screws to the windshield reveal molding.

Tighten the screws to the windshield reveal molding to 2 N.m (18 lb in).

3. Install the front door sealing weatherstrip (1) to the pinchweld.
4. Close the door.
