Rear Side Door Window Channel Replacement

Rear Side Door Window Channel Replacement

Removal Procedure

1. Raise the window to the full up position.
2. Remove the door trim panel.
3. Remove the water deflector.

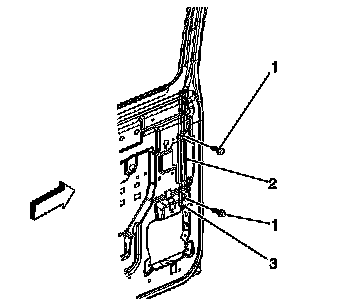

4. Remove the 2 fasteners (1) retaining the run channel to the door.
5. Remove the run channel.

Installation Procedure

1. With the window in the full up position, position the run channel (2) in place inside the door.

Notice: Refer to Fastener Notice.

2. Install the fasteners (1) retaining the run channel to the door.

Tighten the fasteners to 9 N.m (6 lb ft).




3. Install the water deflector.
4. Install the door trim panel.
