Back Window Regulator: Service and Repair

Midgate Window Regulator Replacement

Removal Procedure

1. Remove the midgate inner panel.
2. Remove the midgate window.

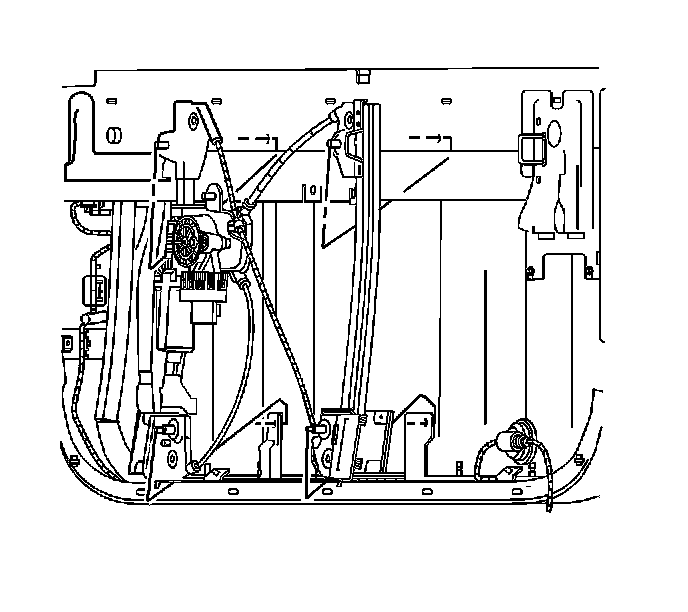

3. Remove the nuts retaining the window regulator to the midgate.
4. Slide the window regulator assembly to one side of the structure.




5. Disconnect the midgate window regulator electrical connector.
6. Remove the regulator from the midgate. A slight twisting motion is required for removal.

Installation Procedure




1. Install the window regulator to the midgate.

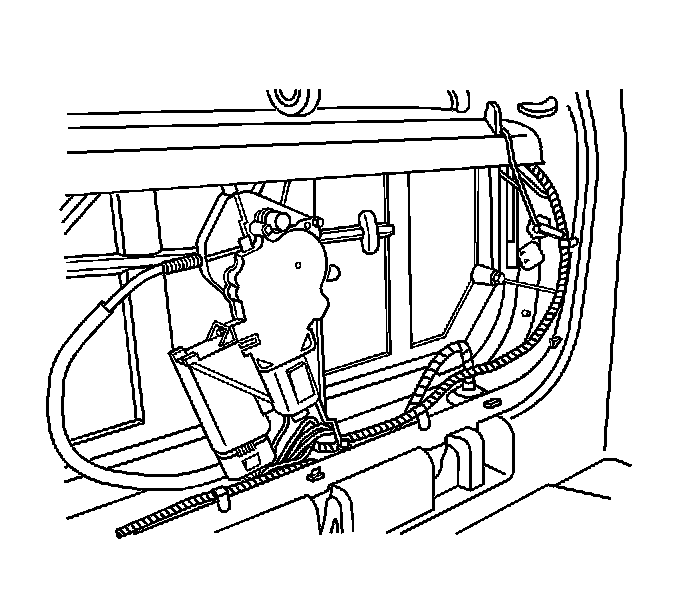

2. Connect the window regulator electrical connector (1).





Notice: Refer to Fastener Notice.

3. Install the nuts retaining the window regulator to the midgate.

Tighten the window regulator nuts to 25 N.m (18 lb ft).

4. Install the midgate window.
5. Inspect and adjust the midgate window alignment to the weatherstrip channel.
6. Install the midgate inner panel.
