Rear Side Door Window Stabilizer Replacement

Rear Side Door Window Stabilizer Replacement

Removal Procedure

1. Position the window in the full up position.
2. Remove the door trim panel.
3. Remove the water deflector.

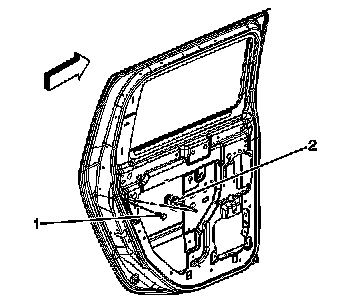

4. Remove the fastener (1) retaining the stabilizer to the door.
5. Remove the stabilizer (2).

Installation Procedure




1. With the window in the full up position, position the stabilizer (2) in place inside the door.

Notice: Refer to Fastener Notice.

2. Install the fastener (1) retaining the stabilizer to the door.

Tighten the fasteners to 9 N.m (7 lb ft).

3. Install the water deflector.
4. Install the door trim panel.
