Rear Side Door Window Replacement

Rear Side Door Window Replacement

Removal Procedure

1. Remove the door trim panel.
2. Remove the water deflector.




3. Remove the run channel
4. Remove the stabilizer.
5. Remove the outer sealing strip.

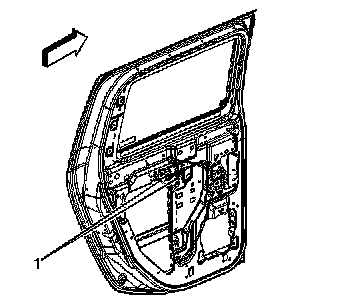

6. Loosen the clamps (1) securing the glass to the window module.
7. Remove the window through the opening at the bottom of the window frame.

Installation Procedure




1. Slide the window through the opening at the bottom of the window frame into position in the window clamps (1).
2. Install the sealing strip.

Notice: Refer to Fastener Notice.

3. Install the run channel.

Tighten the clamps to 9 N.m (6 lb ft).

4. Install the stabilizer.
5. Operate the window to ensure proper operation.
6. Install the water deflector.
7. Install the door trim panel.
