Rear Door Window Belt Inner Sealing Strip Replacement

Rear Door Window Belt Inner Sealing Strip Replacement

Removal Procedure

1. Lower the window to the full down position.

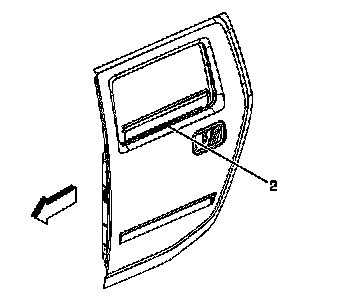

2. Starting at one side, carefully remove the sealing strip by lifting the strip off of the pinch-weld flange (2).

Installation Procedure

1. Lower the window to the full down position.




2. Starting at one side, carefully press the sealing strip down on the pinch-weld flange (2) ensuring that the strip is fully seated.
3. Raise the window and inspect for proper fit.
