Front Side Door Window Replacement

Front Side Door Window Replacement

Removal Procedure

1. Remove the door trim panel.
2. Remove the water deflector.

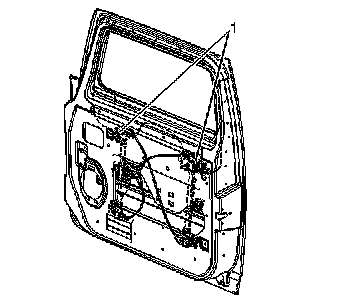

3. Loosen the clamps (1) securing the window to the window module.
4. Remove the outer window belt sealing strip.
5. Remove the window through the bottom of the window frame.

Installation Procedure




1. Slide the window through the opening of the window frame into position into the window clamps (1).
2. Install the outer window belt sealing strip.

Notice: Refer to Fastener Notice.

3. Install the water deflector.

Tighten the clamps to 9 N.m (6 lb ft).

4. Install the door trim panel.
5. Operate the window to ensure proper operation.
