Power Window Lockout Function Inoperative



Power Window Lockout Function Inoperative

Test

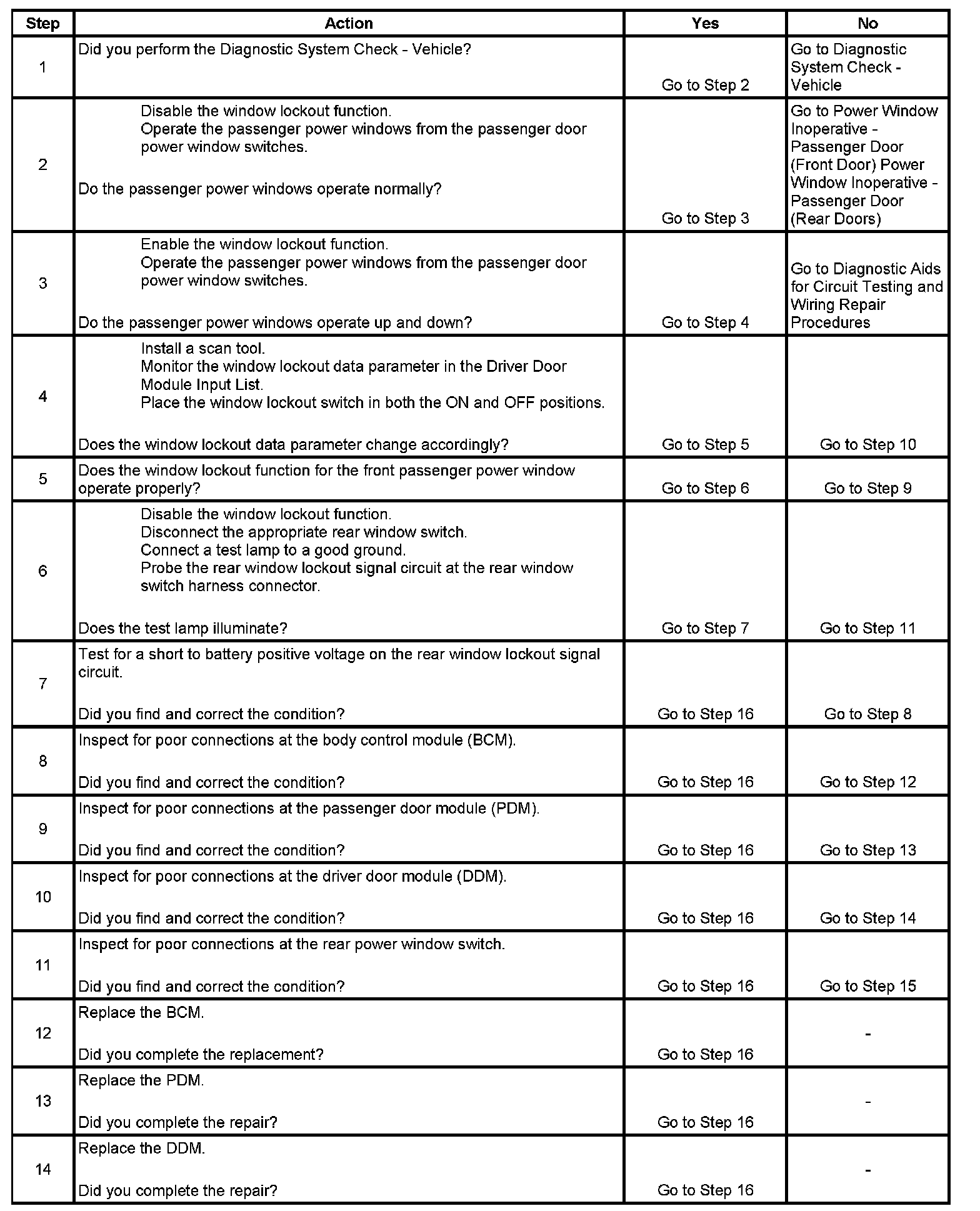

Step 1 - Step 14:

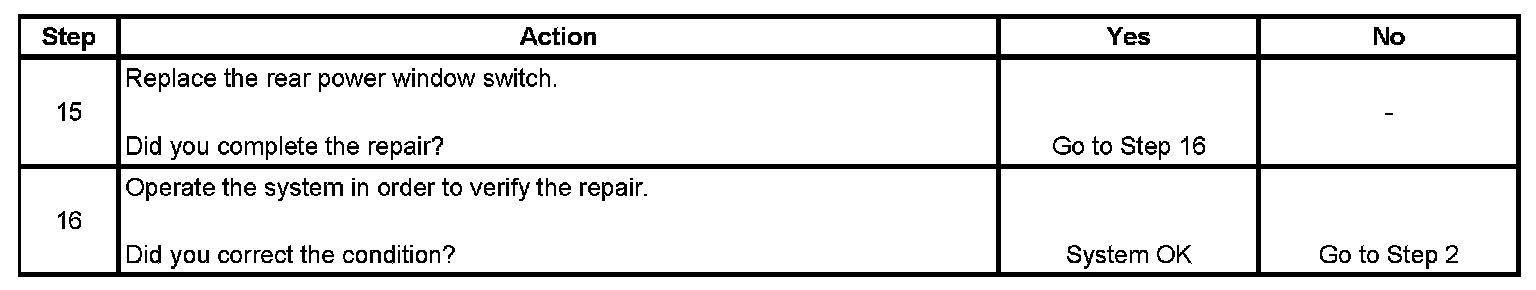

Step 15 - Step 16:
