Power Window Motor: Diagrams

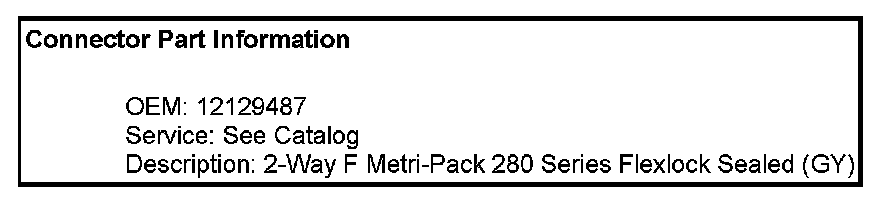

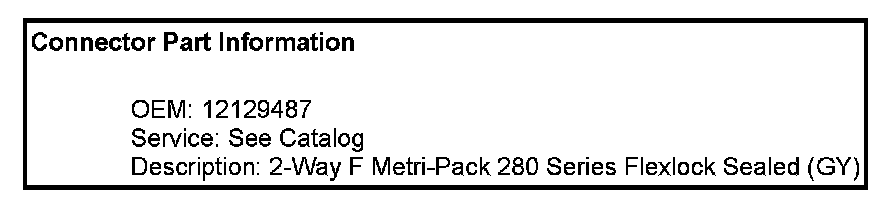

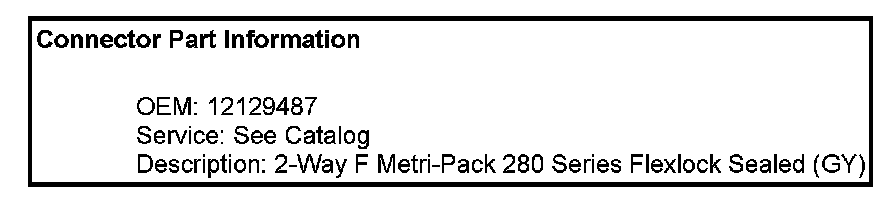

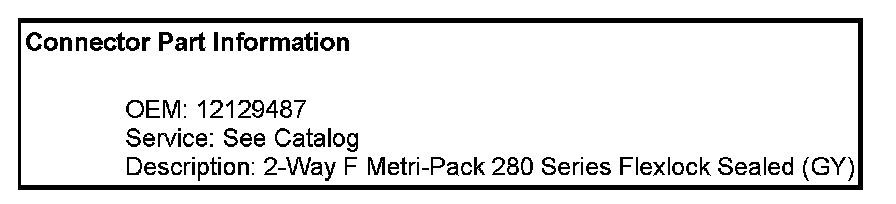

Vehicle Access Connector End Views

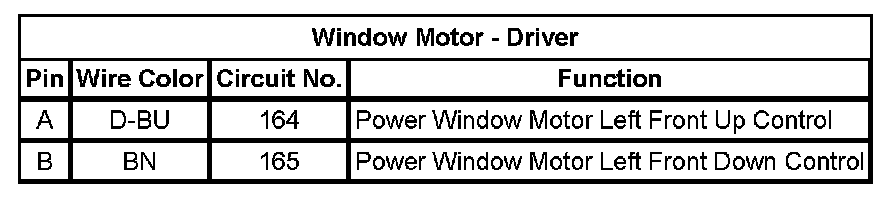

Window Motor - Driver

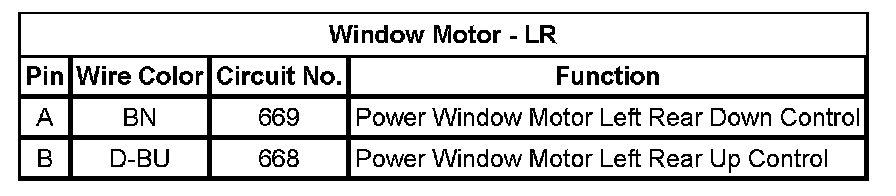

Window Motor - LR

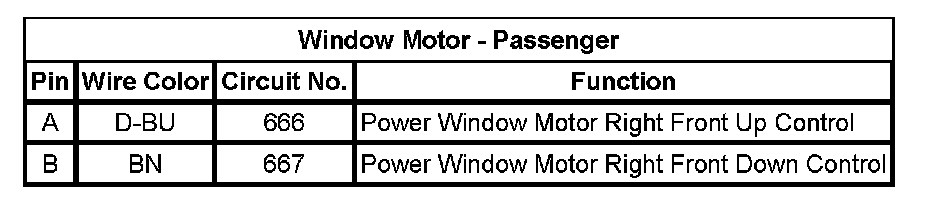

Window Motor - Passenger














Window Motor - RR
